Figure 2 cabinet dimensions – System Sensor PDRP-1002 User Manual
Page 11
RMS Regulated Power
1 The PDRP-1002/PDRP-1002E
The PDRP-1002 PN 51135:A 03/11/99
11

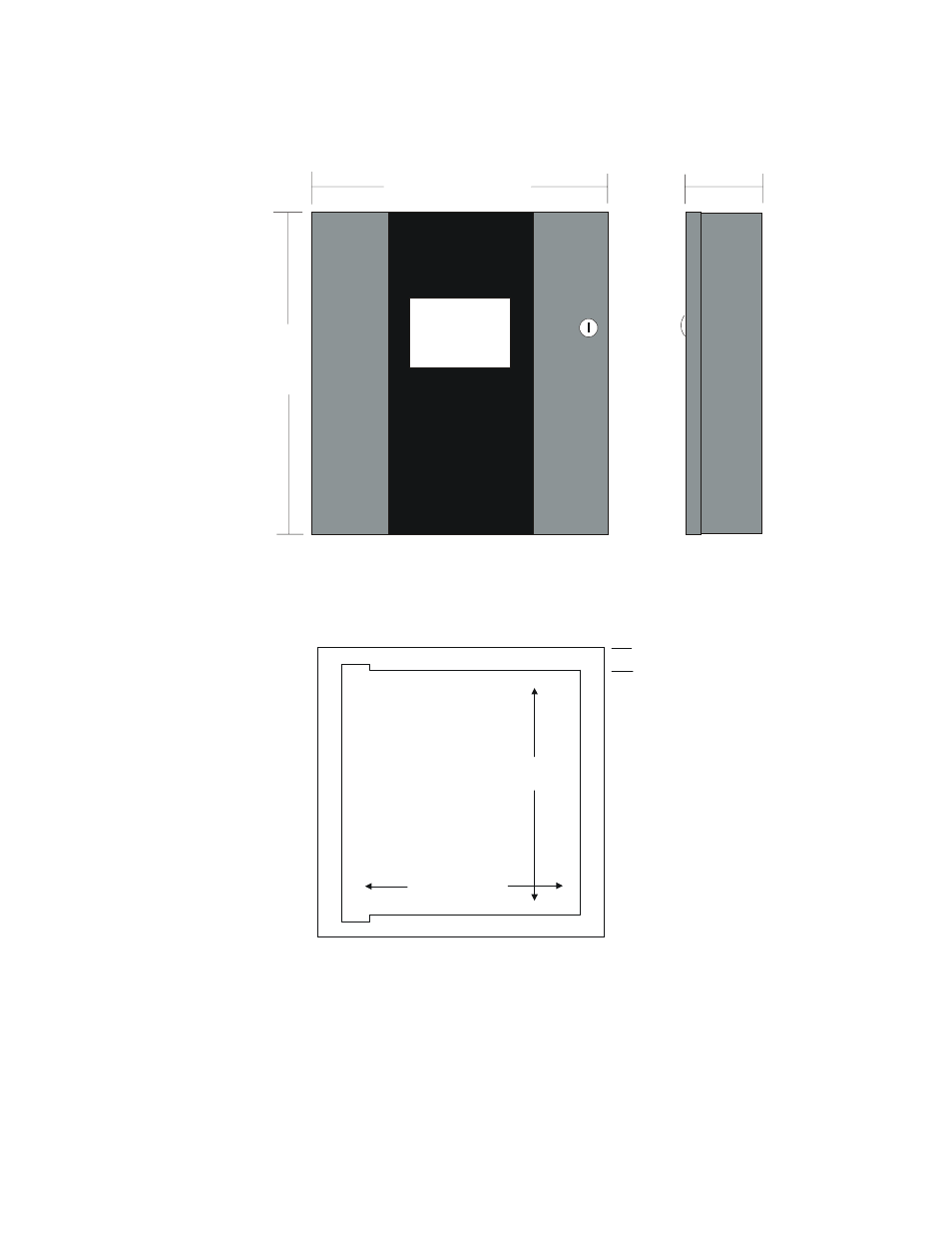

Figure 2 Cabinet Dimensions
RP
CA
B
D
IM
.c
d
r
Door = 14.625 in.
(371.48 mm)
Backbox = 14.5 in.
(368.3 mm)
Cabinet = 5.375 in.
(136.53 mm)
Backbox = 4.750 in.
(120.65 mm)
Door = 16.125 in.
(409.58 mm)
Backbox = 16 in.
(406.4 mm)
1.5 in
(38.1 mm)
16.094 in.
(408.79 mm)
14.594 in.
(370.69 mm)
TR-4XR
RUBY RD
STEEL
16 GA.
Optional Trim Ring
TR-4XR
