Alarm Relay 3 Installation Procedure
The PDRP-1002 PN 51135:A 03/11/99 19
Alarm Relay
One Form-C dry alarm contact is provided in the basic panel for controlling
supplementary devices. It is rated 2 amps at 30 VDC and 0.5 amps at 30 VAC
(resistive), and is non-silenceable when an alarm occurs. See below for terminal
location.
Trouble Relay
One Form-C dry trouble contact is provided in the basic panel for controlling
supplementary devices. It is rated 2 amps at 30 VDC and 0.5 amps at 30 VAC
(resistive), and will silence when trouble condition is cleared. See below for terminal
location.
Note: The alarm and trouble Form-C dry contact relays must be power limited relays. They must be wired
from one of the 24V power limited terminals as shown in the figure below or a comparable UL listed power
limited power supply.
Figure 7 Alarm/Trouble Coils and Contacts
Power
CAUTION: Several different sources of power can be connected to this panel.
Disconnect all sources of power before servicing. The panel and associated equipment
may be damaged by removing and/or inserting cards, modules, or interconnecting
cables while this unit is energized.
Figure 8 Diagram of Power Terminals
1 2 3 4 5 6 1 2 3 4 1 2
TB 1 TB 2 TB 3
RP
A
L
M
T
B
L
.CDR

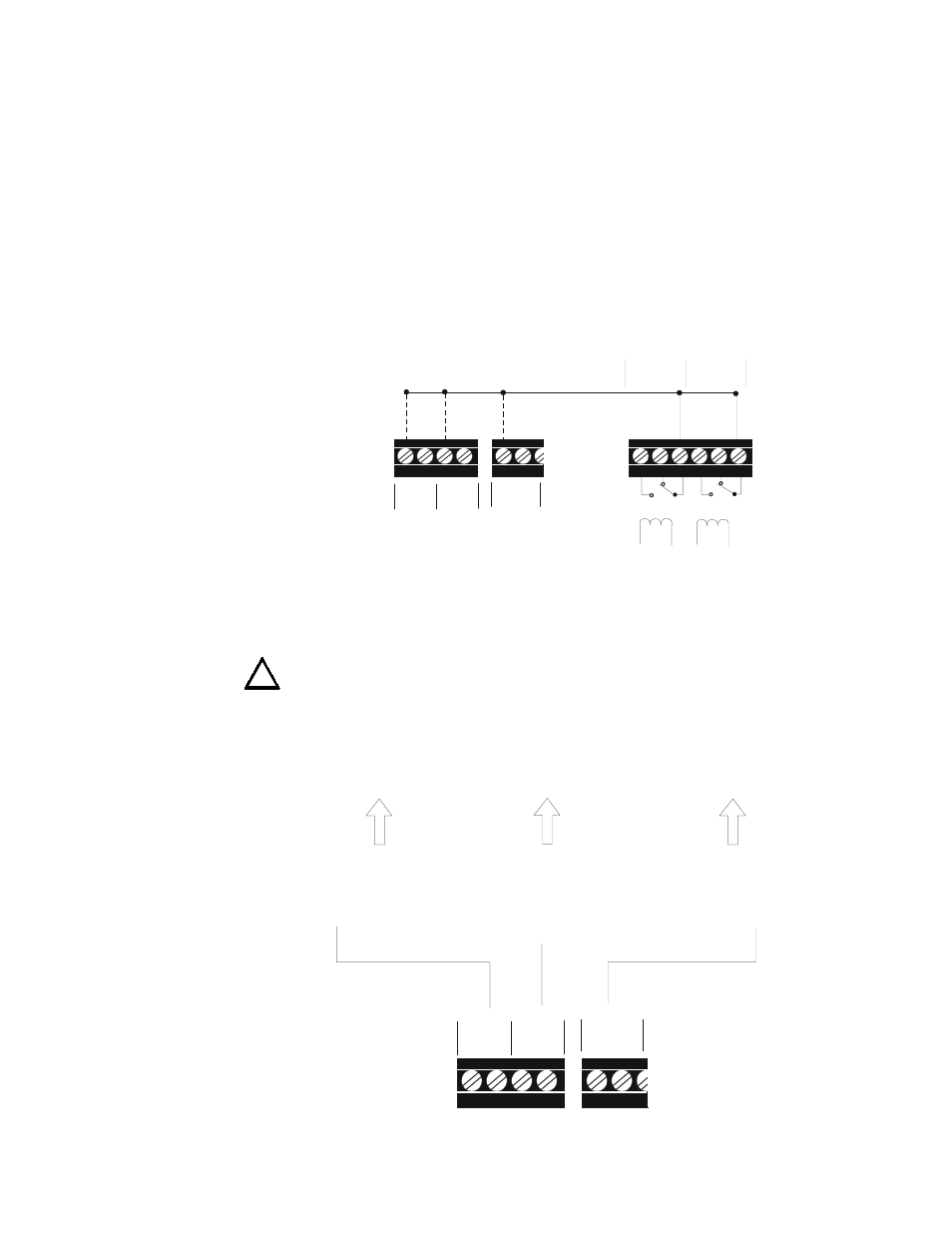

Schematic representation of
Alarm/Trouble coils and contacts.
Alarm Trouble
+24VU +24VR +24VNR
or or
Alarm
NO NC C
Trouble
NO NC C
!
1 2 3 4 1 2
+ - + -
+ -
TB 1 TB 2
RP
P
W
RT
RM
.c
d r
This output is not suitable
for powering devices
requiring filtered DC power. The combined current draws from the Resettable
and Non-resettable outputs cannot exceed 200 mA.
RMS-Regulated Power
24 VDC power for inductive-
type devices such as door
holders can be connected to TB1
terminals 1 (+) and 2(-). 4-Wire Smoke Detector Power
24 VDC filtered, resettable power
for 4-wire smoke detectors can be
obtained from TB1 Terminals 3(+)
and 4(-). Non-resettable Power
24 VDC filtered, nonresettable
power can be drawn from TB2
Terminals 1 (+) and 2(-).
+24VU +24VR +24VNR
