Initiating device circuits, Zones – System Sensor PDRP-1002 User Manual
Page 16

3 Installation Procedure
Zones
16
The PDRP-1002 PN 51135:A 03/11/99
Initiating Device Circuits
Zones
Wire all alarm initiating devices sequentially for proper supervision. Initiating devices
include: heat, photoelectric, and ionization type detectors; and waterflow alarm
devices. Refer to the Compatibility Chart in Appendix B.
Note:
•
Observe polarity when connecting polarized devices.
•
All circuits are supervised and power limited.
•
Leave Dummy Load (provided) on all unused circuits.

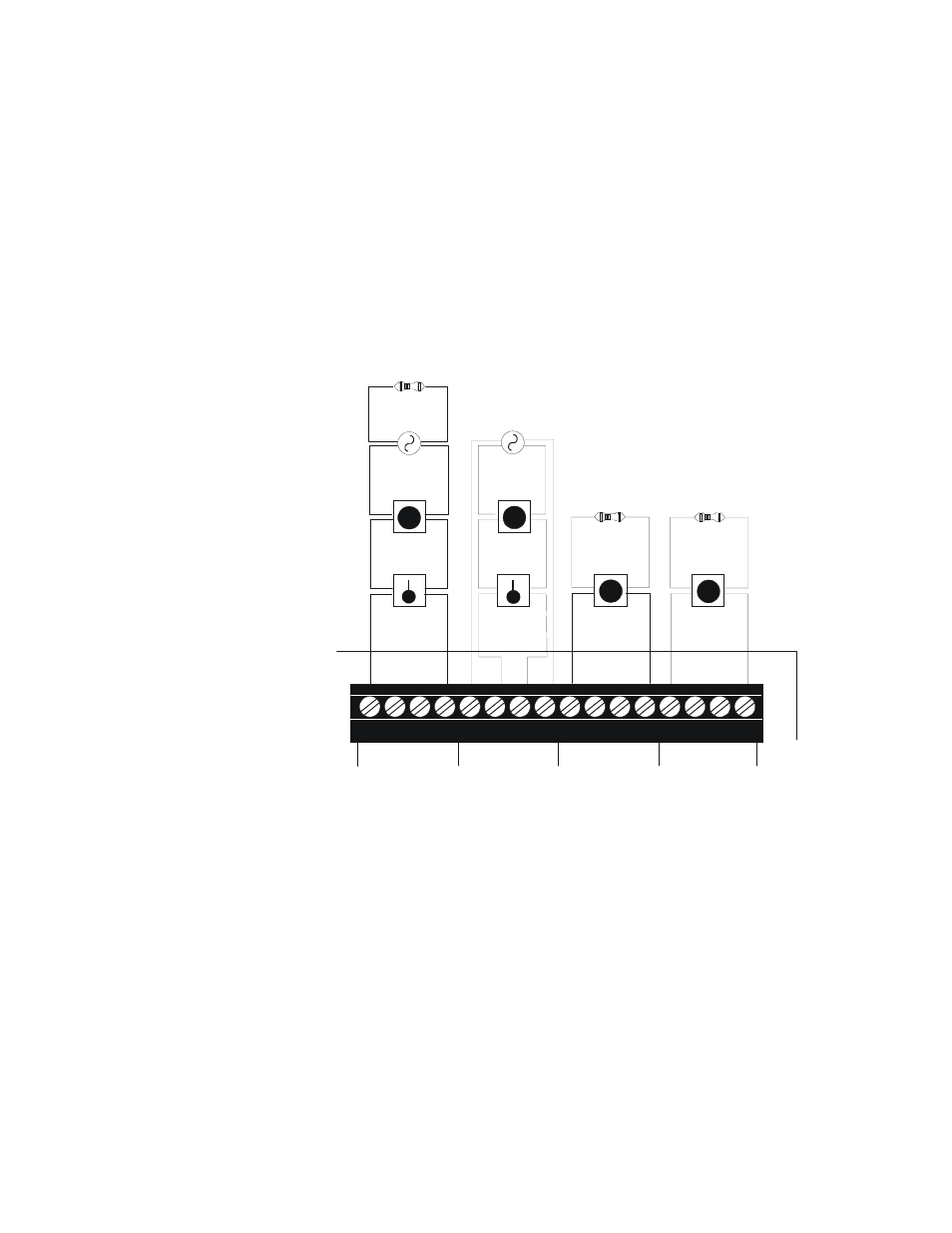

Figure 4 Example of an Alarm Initiating Device
B+ A+ A- B- B+ A+ A- B- B+ A+ A- B- B+ A+ A- B-
TB 4
+
+
+
+
+
+
_
_
_
_
_
_
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
A
ID
EX.
c
d
r
IN #1
IN #2
IN #3
IN #4
Manual
Pull Station
Heat
Detector
Two-wire
Smoke
Detector
Class B (Style B)
Initiating Device Circuit
4.7K, 1/2-Watt (part # 71252 UL listed)
Class A (Style D)
Initiating Device
Circuit
Abort Switch
4.7K, 1/2-Watt
(part # 71252
UL listed)
Manual Release
4.7K, 1/2-Watt
(part # 71252
UL listed)
