WARNINGS
• These instructions must be read and understood prior to attempting
installation. Professional installation or assistance is recommended.
• This mount is intended for use only with a maximum weight of 165 lbs
(75 kg). Use with weights heavier than this may result in instability
causing possible injury.
• The mounting surface must be capable of supporting the combined weight
of the mount and the display.
• Safety gear and proper tools must be used. Failure to do so can result in
property damage and/or injury.
• A minimum of two people are required for this installation. Do not attempt
to install this mount alone under any circumstance.
• Follow all instructions and recommendations regarding adequate ventilation
and suitable locations for mounting your display. Consult the owner‘s manual
for your display for more information
TOOLS REQUIRED:
Ratchet; 13mm, 14mm, 17mm sockets; Philips Head Screwdriver; Power Drill;
& 3/16 drill bit.
INSTALLATION INSTRUCTIONS
1. Pre-Drill holes for Lag Bolts in ceiling
using 3/16 drill bit. Attach the upper
portion of the mount to the ceiling
using (4) four Lag Bolts (Q) and (4)
Lag Bolt Washers (R). Use the
Concrete Anchors only if you are
installing the mount to a
Concrete Ceiling.
2. Insert the lower portion of the mount into
the upper tube and adjust to the desired
height. Secure the poles together using
(2) Hex bolts (S) and (2) Nylock nuts (T)
supplied. (2) Bolts and Nuts must be
used at all times.

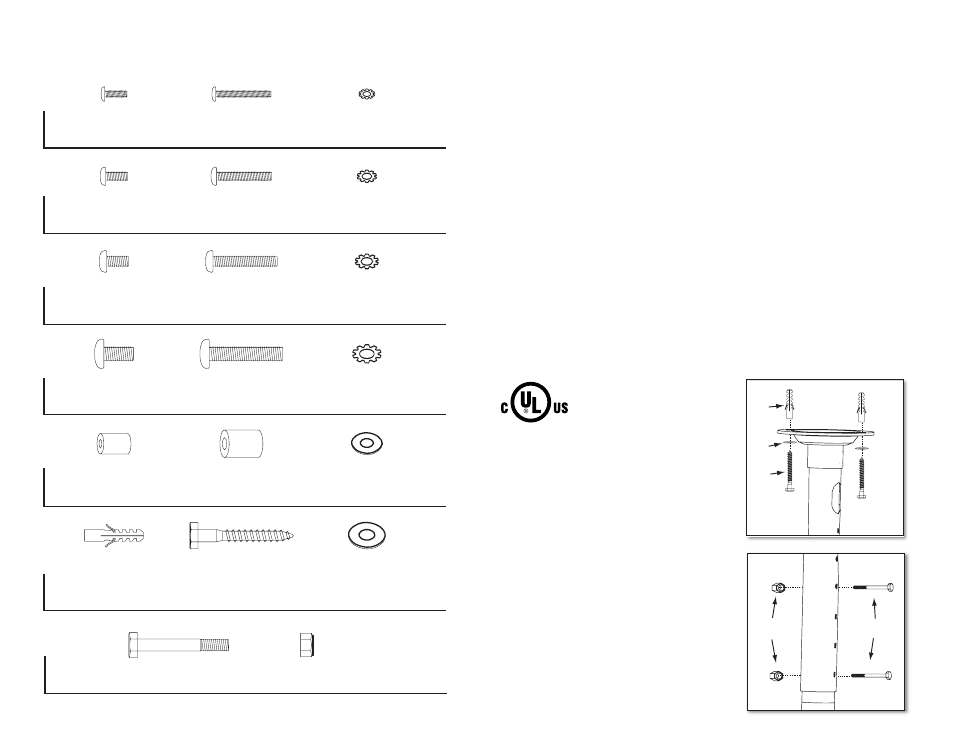

HARDWARE KIT
T S
Q
R
P
(A) M4x12 Bolt (x4) (B) M4x30 Bolt (x4) (C) M4 Lock Washer (x4)
(D) M5x12 Bolt (x4) (E) M5x30 Bolt (x4) (F) M5 Lock Washer (x4)
(G) M6x12 Bolt (x4) (H) M6x35 Bolt (x4) (I) M6 Lock Washer (x4)
(K) M8x40 Bolt (x4) (J) M8x16 Bolt (x4) (L) M8 Lock Washer (x4)
(M) Small Spacer (x4) (N) Large Spacer (x4) (O) M6 Washer (x4)
(P) Concrete
Anchor (x4)
(Q) M10x80
Lag Bolt (x4)
(R) Lag Bolt
Washer (x4)
Pkg 3
Pkg 2
Pkg 1
Pkg 4
Pkg 5
Pkg 6
Pkg 7
(S) Hex Bolt (x2) (T) Nylock Nut (x2)
CAUTION: This wall mount
is intended for use only
with the maximum weight
of 165 lbs
(Q) M8x63
