WARNINGS

• We highly recommend this product be installed by a qualified professional.
• Please do not begin installation until you have thoroughly read and

understood these instructions.
• This mount supports display mounting from 22” to 40”, VESA 75X75, 100x100,

200x100 & 200x200, and supports a maximum load of 80 lbs (36.4 kg).
• Ensure the wall that you plan to use will safely support four times the

combined weight of the mount and your chosen display.
• Under no circumstances should this product be mounted to metal studs.
• The manufacturer does not accept responsibility for incorrect installation.

SPECIFICATIONS

• Maximum Load: 80 lbs. (36.4 kg)

• Display Size: 22” to 40”

• Extension: 3’

• Pan/Swivel Range: 360°

• Tilt Range: +0° / -20°

TOOLS REQUIRED

• Power Drill
• 3/16” (5mm) Drill Bit
• 5/16” (8mm) Masonry Bit
• Phillips Head Screw Driver
• 3/8” Socket Head Wrench
• 7/16” Socket Head Wrench

INSTALLATION INSTRUCTIONS
Step 1: Use Ceiling Plate to Mark Mounting Hole Locations

a. The use of a stud finder is highly recommended.

Step 2: Mount the Ceiling Plate
For Mounting on a Wood Joist (Fig 1)

a. Pre-drill two holes into joist using a 3/16” drill bit.

Be sure to drill into the center of the joists.
b. Insert two Lag Screws into holes through

the Ceiling Plate and tighten down.
WARNING: Tighten screws so that the

Ceiling Plate is firmly attached, but

do not over tighten. Over tightening

can damage the screws, greatly

reducing their holding strength.
c. Thread in extension pipe and

tighten set screws provided.
d. Install Ceiling Plate Cover (optional).

For Mounting on a Concrete Ceiling (Fig 2)

a. Pre-drill four holes into concrete using 5/16” Masonry bit. Insert Hex Sleeve anchors

(not supplied) and tap in with hammer (per instructions with wall anchor).
WARNING: When installing Ceiling Plate on cinder block, verify first that you

have a minimum of 1-3/8” of concrete thickness to be used for the Concrete

Wall Anchors (not included). Do not drill into mortar joints! Be sure to mount

in a solid part of the block, generally 1”minimum from the side of the

block. Cinder block must meet ASTM C-90 specifications. It is suggested

that a standard electric drill on slow setting

is used to drill the hole instead of a hammer

drill to avoid breaking out the back of the

hole when entering a void or cavity.
Concrete must be 2000 psi density

minimum. Lighter density concrete

may not hold concrete anchor.
Make sure that the supporting surface will

safely support the combined load of the

equipment and all attached hardware

and components.

b. Remove washer and nut from end of bolt from

all four bolts. Place Ceiling Plate over bolts so they

align with the four holes in Ceiling Plate.
c. Re-install washer and nut onto end of bolt and tighten down

using a 7/16” socket head wrench until secure (per instructions

with wall anchor). WARNING: Tighten nuts so that ceiling plate is firmly attached,

but do not over tighten. Over tightening can damage the bolts, greatly reducing their

holding strength.

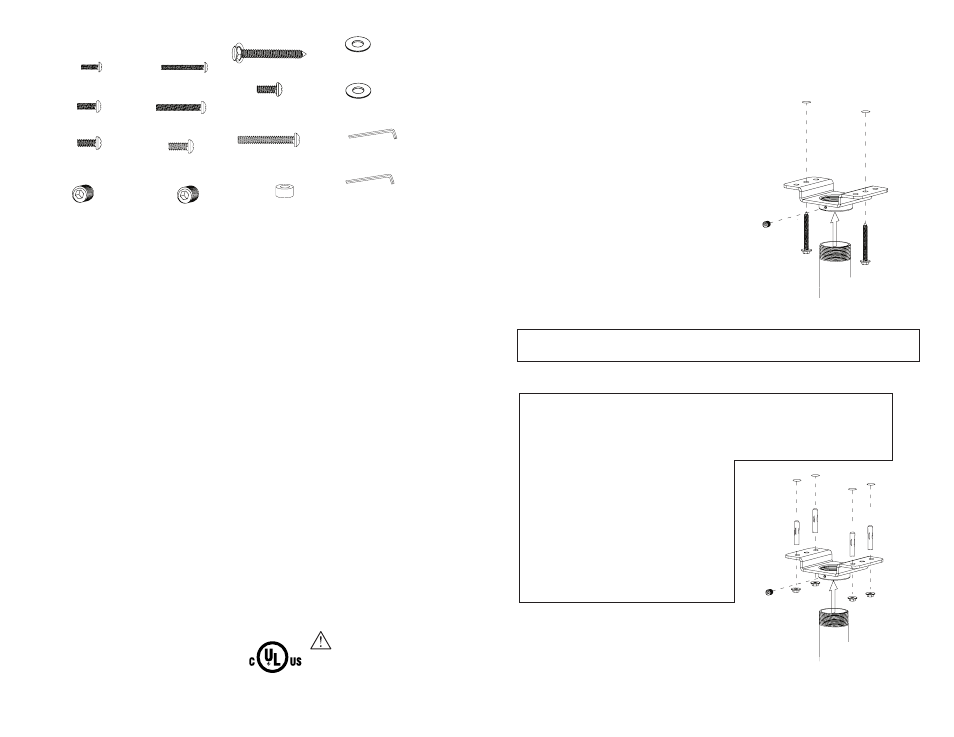

HARDWARE KIT (T/DT)

M4 x 12mm Philips

Head Screw (x4/8)

M6 x 12mm Philips

Head Screw (x4/8)

M8 x 14mm Philips

Head Screw (x4/8)

Allen Wrench, 2.5mm,

Security/Non-Security (x2)

Allen Wrench, 4mm (x1)

M4 x 30mm Philips

Head Screw (x4/8)

M5 x 30mm Philips

Head Screw (x4/8)

M6 x 30mm Phillips

Head Screw (x4/8)

M5 x 12mm Philips

Head Screw (x4/8)

M6 x 20mm Philips

Head Screw (x4/8)

M6 (17.8 x 6.5 x 1.5mm)

Metal Washer (x4/8)

BOX CONTENTS (T/DT):

• Ceiling Plate(1)

• Ceiling Plate Cover (1)

• Mount Head(1)

• Adapter Plate(1/2)

• Hardware kit (1)

• 3’ Fixed Extension Pole(1)

Fig 1

Fig 2

#14 x 2.5” Lag Screw (x4)

M8 (20.5 x 8.5 x 2mm)

Metal Washer (x8/16)

M4/M5/M6 spacer:

12mm (x4)

M5 x 5mm Set Screw (x4)

M5 x 5mm Set Screw,

Security (x4)

Concrete anchors not provided. 5/16” x 2-1/2” Red Head® Hex Sleeve Anchors, #50113,
are recommended for concrete or cinder block installation.

CAUTION:

These ceiling mounts are

intended for use only with

the maximum weight of

80 lbs (36.4kg).
