WindO/I-NV2 User’s Manual
23-27
2 Security Function Configuration Procedure
23
Use
r Ac
counts and the Sec
urit
y Function
9

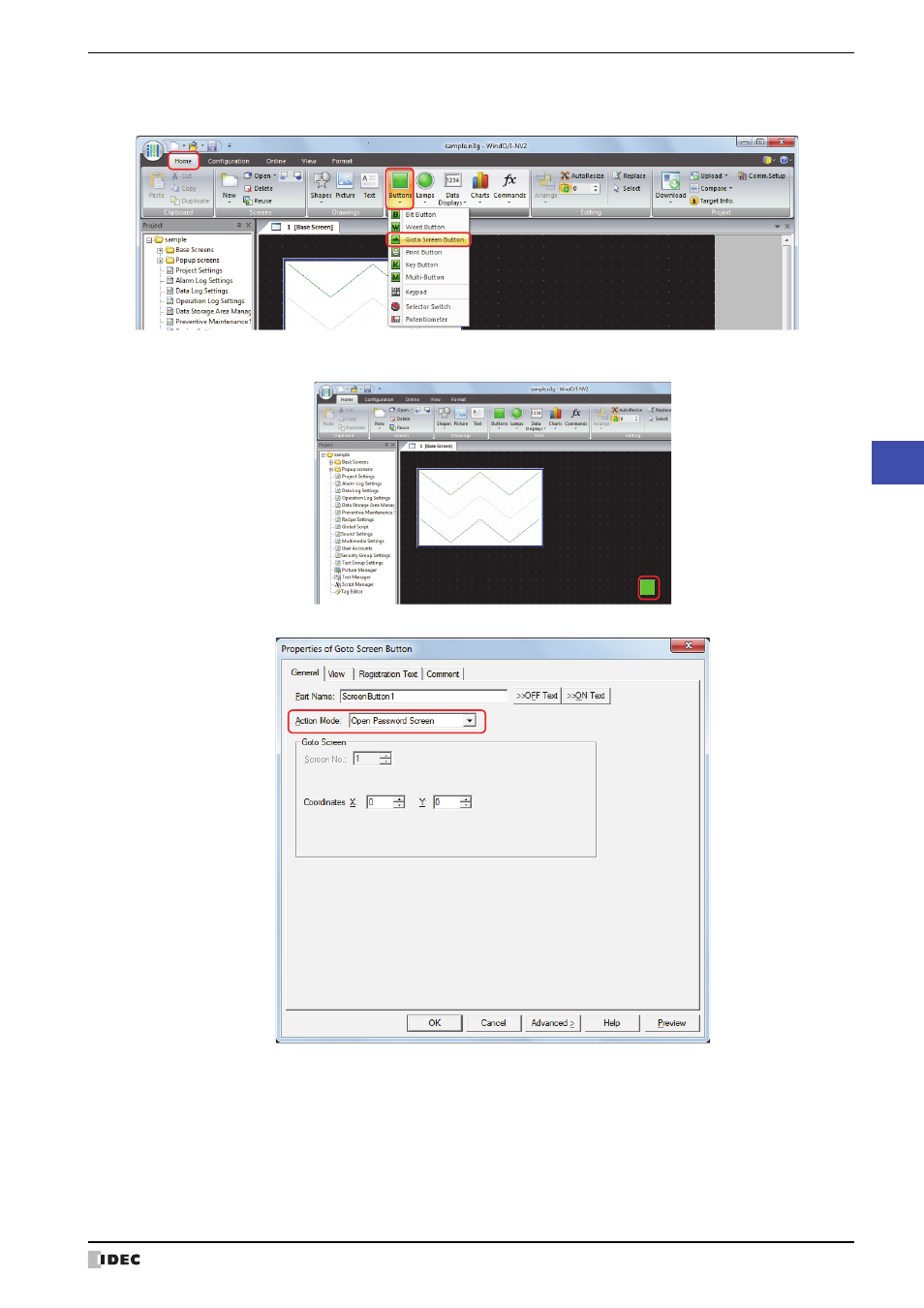

Place a Goto Screen Button to display the password screen on the base screen.
On the Home tab, in the Parts group, click Buttons, and then click Goto Screen Button.
10
Click a point on the edit screen where you wish to place the Goto Screen Button.
11
Double-click the dropped Goto Screen Button and the Properties dialog box is displayed.
12
Select Open Password Screen for Action Mode.
13
Specify the display location in coordinates for the password screen to open above the base screen with Coordinates
X, Y.
With the upper-left corner of the screen as the origin, the upper-left corner of the window is the X and Y coordinates.
X:
0 to (base screen horizontal size - 1)
Y:
0 to (base screen vertical size - 1)
