2.0 Technical Information
2.1 Specifications for Underhung End Trucks
Harrington Hoists, Inc.
A B D
E E
T
U
Y
M
X
AA

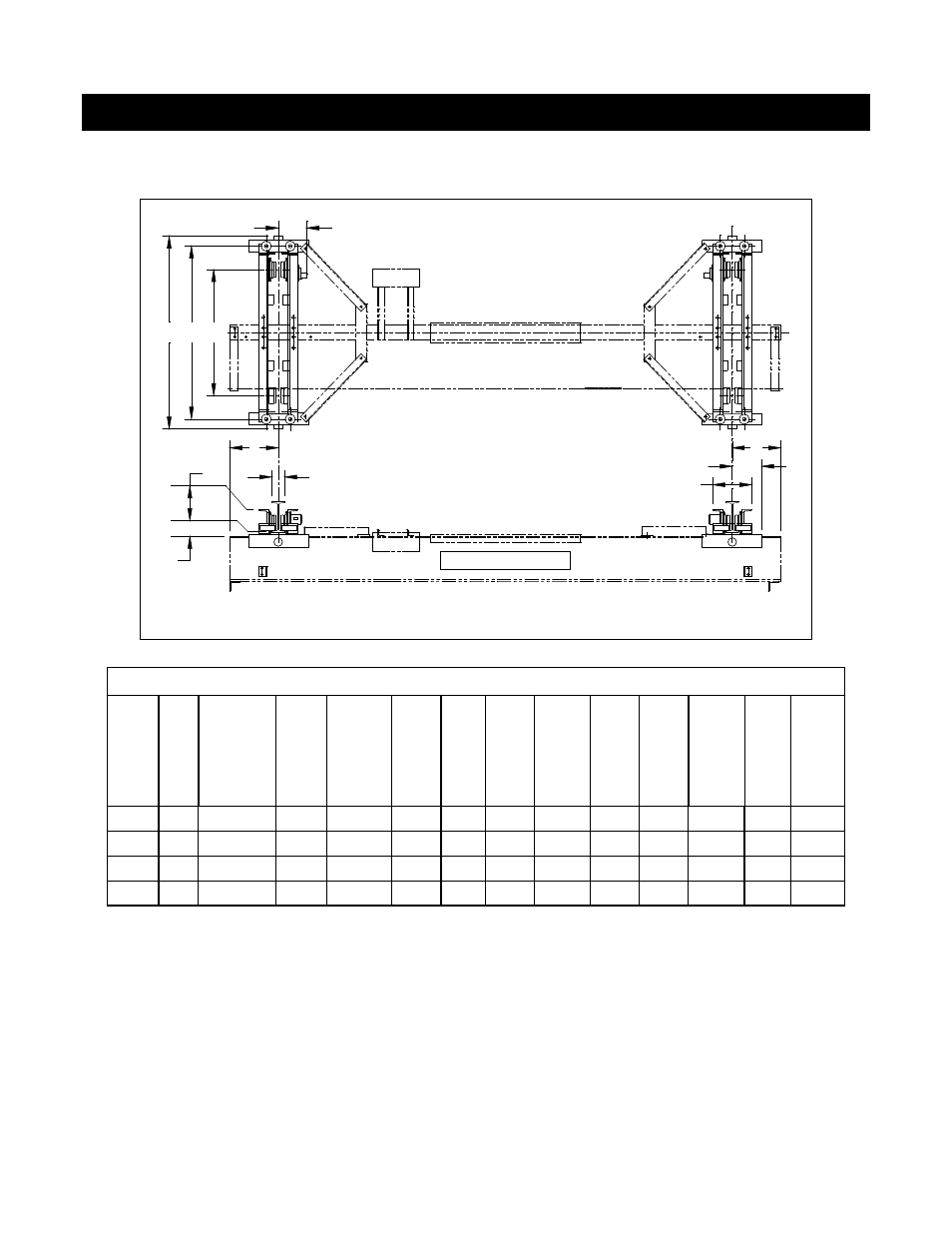

Figure 2-1 Underhung End Truck Dimensions
Underhung Push (Manual) End Trucks (Refer to Fig. 2-1)
Max.
Cap.
(Tons)
Max.
Span
(ft)
End Truck
Model #
Wheel
Dia.
(in)
Flange
Range
Std. (in)
A
Overall
Length
(in)
B
Roller
Base
(in)
D
Wheel
Base
(in)
E *
Beam
Beyond
Span
(in)
M
End
Truck
Frame
Width
(in)
U **
Wheel
Bottom
to
Beam
Top
(in)
X
Width
Beyond
Span
(in)
Y
Height
(in)
End
Truck
Weight
(lbs/pr)
2 35 UP-3-0235 4.33 3 - 6 60 53 39 12 T+8.1 1.8 11.3-T/2 6.5 448
2 45 UP-3-0245 4.33 3 - 6 82 75 61 12 T+8.1 1.8 11.3-T/2 6.5 585
3 35 UP-3-0335 4.92 3 - 6 60 53 35 12 T+8.2 1.9 11.3-T/2 6.5 472
5 35 UP-3-0535 5.51 4 - 6 60 53 33 12 T+9.8 2.0 11.3-T/2 6.4 546
* minimum overhang is M/2
** includes 3/8" thick beam mounting plates
