End Truck
Bridge Beam
Brace
Brace

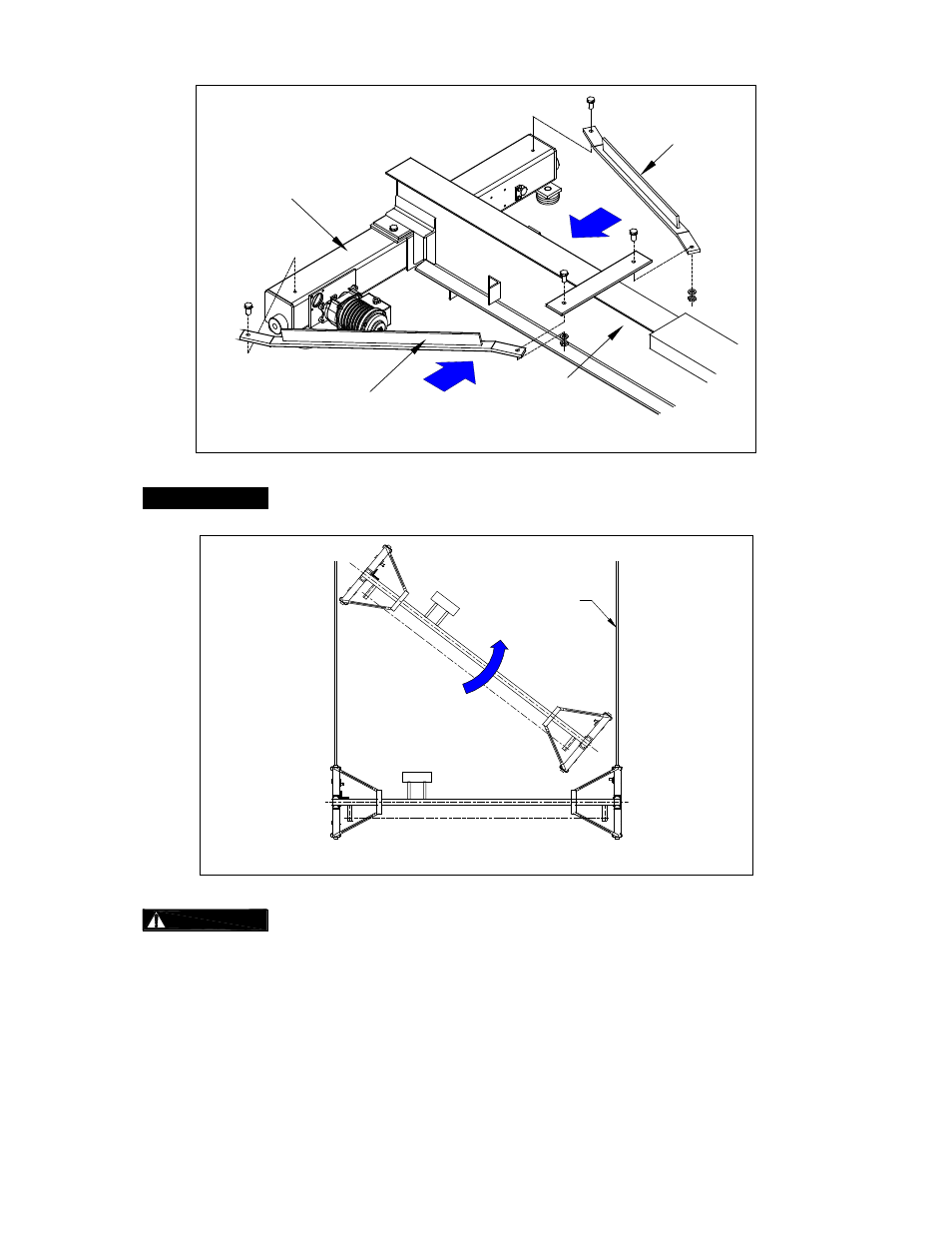

Figure 3-8

Another way is to install your crane system is to first assemble the crane on the floor
beneath the runway/rails. Then lift the crane into position as shown in Figure 3-9.
Travel Rail
Figure 3-9

When installing the hoist and trolley on the bridge beam, refer to the installation
instructions for your hoist and trolley.
3.3 Max-E-Lift End Trucks (for Double Girder Crane Systems)
3.3.1 Assemble and install the Max E Lift cranes using the appropriate information in section 3.1 or 3.2
based on whether your Max E Lift system is underhung or top running.
3.3.2 Refer to Figure 3-10 and verify the following:
a) End Truck Alignment - verify A = B and X = Y.
