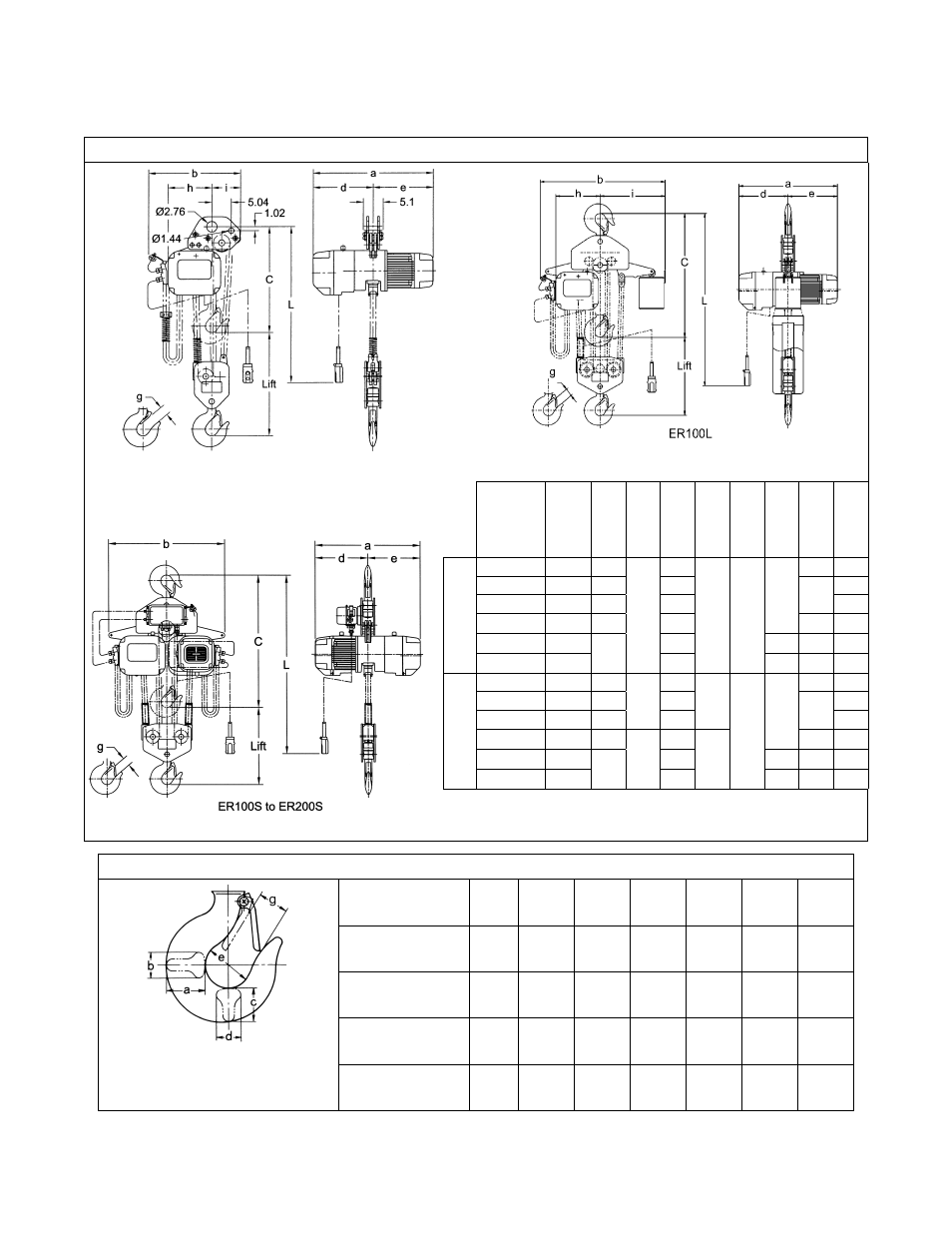

2.2 Dimensions
Table 2-2
Hoist Dimensions
ER080S
Product
Code
Head-
room:
C
(in)
L*
(ft)
a
(in)
b
(in)
d
(in)
e
(in)
g
(in)
h
(in)
i
(in)
ER080S ~
42.0
8.7
23.8
11.3
7.5
ER100L
52.6
9.2
39.4
20.4
ER100L-LG
39.7
8.7
28.0
14.0
8.9
ER100S
52.6
9.2
34.2
2.4
ER150S
60.6
41.3
3.1
SIN
G
LE
S
P
EED
ER200S
65.0
10.5
30.9
49.1
15.5 15.5
3.4
ER080SD ~
42.0
8.7
23.8
11.3
7.5
ER100LD
52.6
9.2
39.4
20.4
ER100LD-LG
39.7
8.7
32.2
28.0
15.5
14.0
8.9
ER100SD
52.6
9.2
34.2
2.4
ER150SD
60.6
41.3
3.1
DUAL
SP
EED
ER200SD
65.0
10.5
33.5
49.1
16.8
16.8
3.4
*The "L" dimensions are based on the standard lift of 10 feet.
~Hoist available lug mount only. Dimension C (headroom) and L are to the
center of the lug hole.
Table 2-3
Hook Dimensions*
Capacity Code
Hook
a
b
c
d
e
g
080S
B
3.3
2.2
2.9
1.9
3.3
2.4
100L, 100S
T & B
3.3
2.2
2.9
1.9
3.3
2.4
150S
T & B
4.1
2.8
3.4
2.4
3.9
3.1
T = Top Hook
B = Bottom Hook
Units = in.
200S
T & B
4.6
3.3
3.9
2.8
4.3
3.4
*Refer to EROM
Section 5.7
for inspection dimensions and limits.
