6.0 Maintenance and Handling

6.2

Lubrication

6.2.1

Load Chain

§ Refer to 6.2.1 of the EROM.

6.2.2

Hooks and Suspension Components:

§ Refer to 6.2.2 of the EROM.

6.2.3 Gear

Box:

§ Refer to 6.2.3 of the EROM except use the following table for checking oil level.

Table 6-3

Criteria for Checking Hoist Gear Oil Level

Oil Level (Hoist at level position)

Capacity Code

Min

Max

080S, 100L, 100S, 0150S,
200S

1“ below bottom
edge of check hole

Even with bottom
edge of check hole.

6.3

Motor Brake -

Use the table below in conjunction with Section 6.3 of the EROM. This table replaces

Table 6-3 of the EROM.

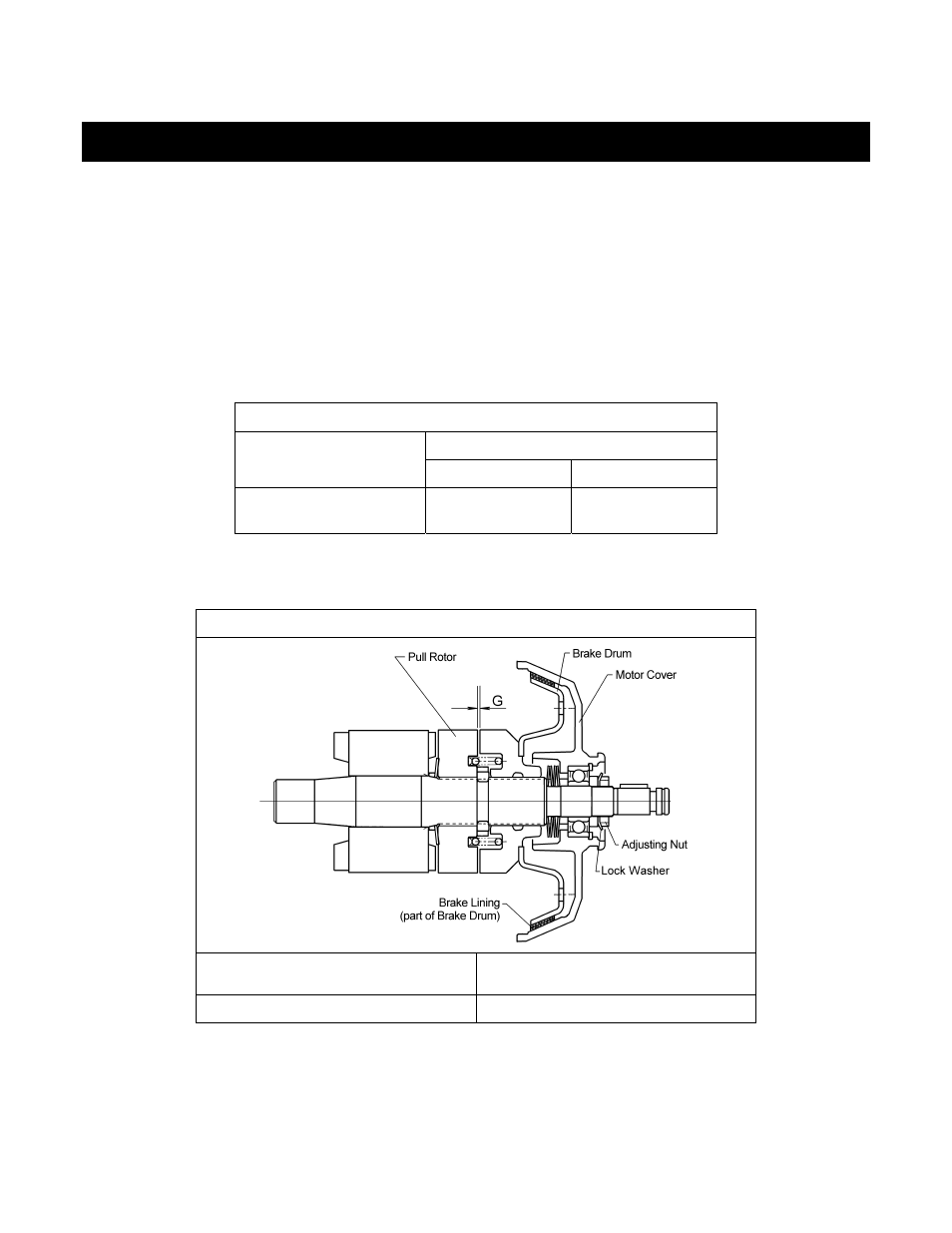

Table 6-3

Motor Brake Gap

Capacity Code

Brake Gap (G)

inch (mm)

080S, 100L, 100S, 150S, 200S

0.032 (0.8)

6.4 Load

Chain

6.4.1

Lubrication and Cleaning – refer to

Section 6.2

of EROM

.

6.4.2

Load Chain Replacement for ER080S and ER100L:
