10.0 8 to 20 Ton Parts List

When ordering Parts, please provide the Hoist code number, lot number and serial number located on the Hoist
nameplate (see fig. below).

Reminder: Per sections 1.1 and 3.5.1 to aid in ordering Parts and Product Support, record the Hoist code number,
lot number and serial number in the space provided on the cover of this manual.

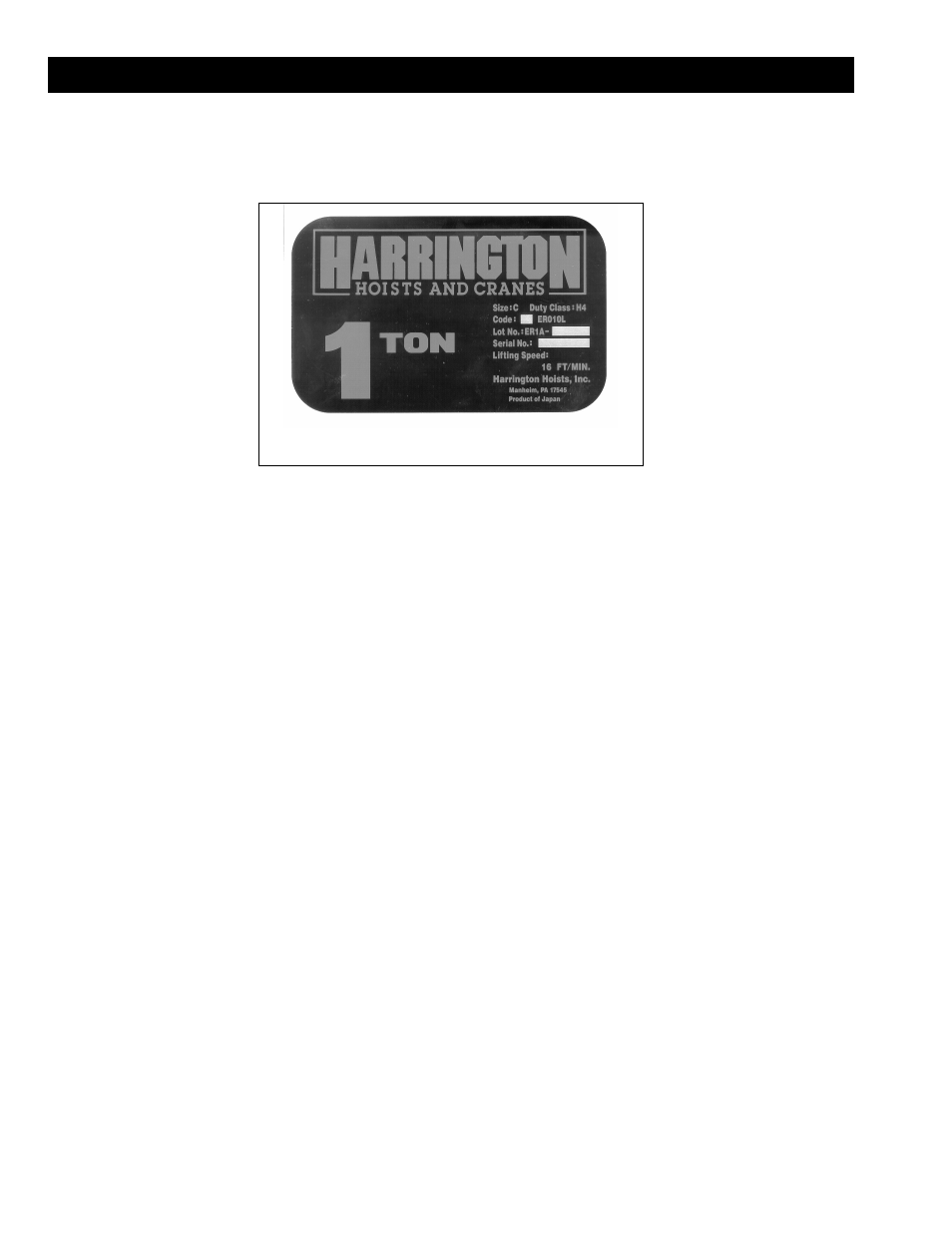

ER Series Nameplate

The parts list is arranged into the following sections:

Section

Parts Common to Plate Suspension (lug mount) and Hook Mount.

Page

10.1 Housing and Motor Parts…………….…………………………………………………...……… 22

10.2 Gearing Parts……………………………………………………………………………………… 26

10.3 Chaining Parts………………………………………….…………………………………….……. 28

10.4 Bottom Hook Parts 8 &10 Ton....……………………………………………………………….. 30

10.5 Bottom Hook Parts 15 & 20 Ton…………………………………….……………………….….. 32

10.6 Electric Parts………………………………………………………………………………………. 34

10.7 Push Button Control Station Parts………………………………………………………………. 36

10.8 Chain Container Parts 8 & 10(L) Ton…………………………………………………………… 38

10.9 Chain Container Parts 10(S) thru 20 Ton………………………………………………………. 39

Parts for Plate Type Suspension Type.

10.10 Push Button Type Control Station and Cable Parts…………………………………………. 40

10.11 Top Suspension Plate Parts 8 & 10 Ton……………………………………………………… 44

10.12 Top Suspension Plate Parts 15 & 20 Ton…………………………………………………….. 46

Parts for Hook Mount.

10.13 Hook Type Control Station and Cable Parts………………………………………………….. 48

10.14 Top Hook Parts………………………………………………………………………………….. 50

In the column "Parts Per Trolley" a designator is used for parts that apply only to a particular model or option.

Refer to Section 2.1 for ER Hoist model numbers and additional descriptions.

The designators are:

S = Single Speed

D = Dual Speed
