5
DataTrac Setup

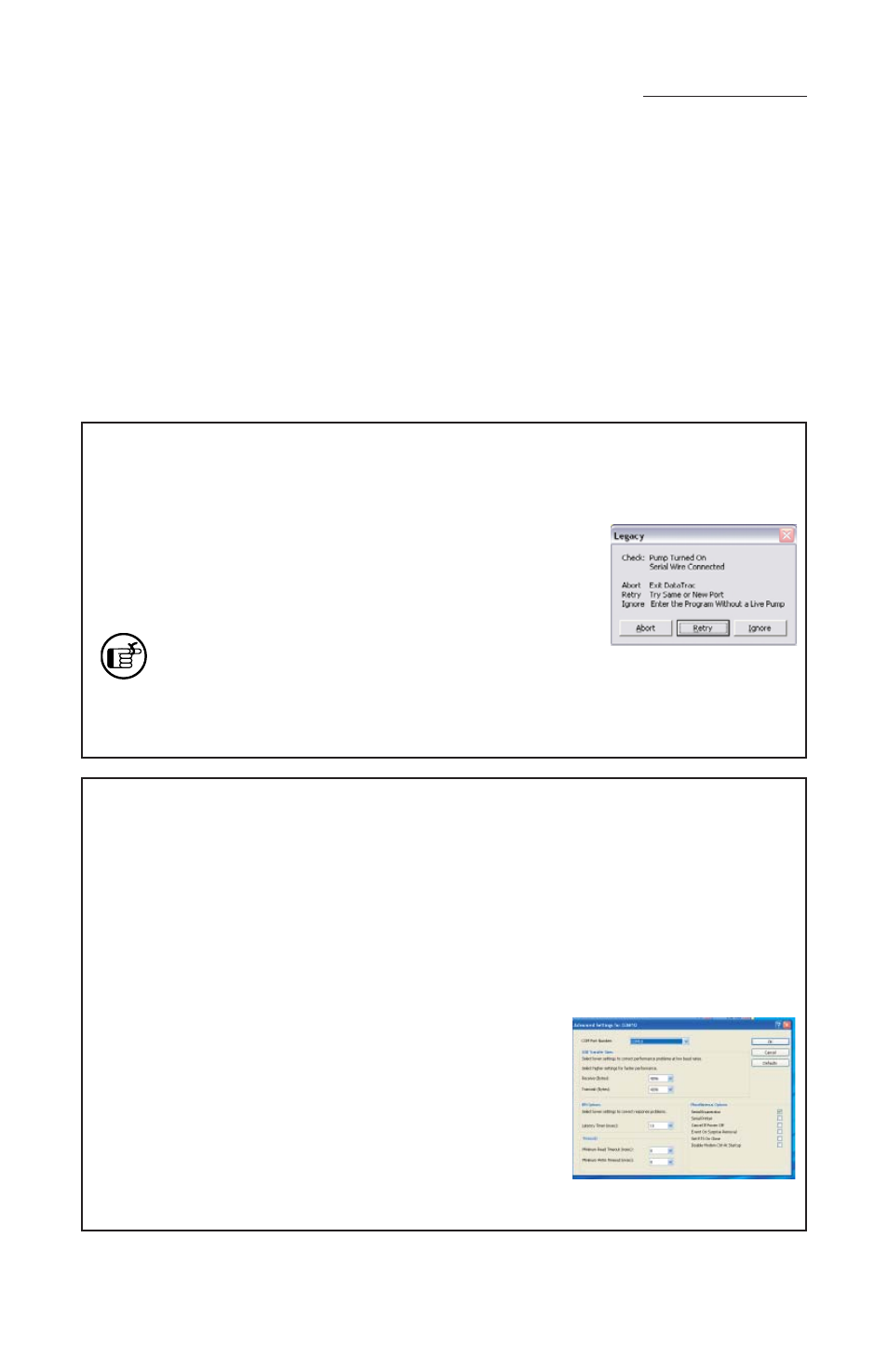

Figure 2B. Connection
Error Box
Successive Connections
1. Connect the pump to a PC using the DataTrac adapter cable.
2. Activate the pump LCD by pressing any button on the pump keypad.
3. Launch DataTrac Software on the PC by double-clicking the Leland Legacy
shortcut icon on the PC desktop.
4. The Leland Legacy connection window will display (Figure 2).
a. Click Connect to Pump.
5. The Leland Legacy Connection window will display a shaking hands icon
indicating a successful connection (Figure 2A). Proceed to Step 6.
Connection Error Box
If an error box displays during connection (Figure 2B), follow this procedure:
a. Ensure pump LCD is activated. See Step 2 on page 4.
b. Check cable connections and click Retry. If the
error box displays again, go to Step c.
c. Ensure the COM ports for the adapter cable
are numbered between 1 and 9. See changing
the COM Port box below.
Another option in the error box is Ignore. Clicking
Ignore opens the SKC DataTrac Pump Manager
window but only allows limited access to software
features.
Changing the COM Port
To change the COM port:
1. Ensure DataTrac adapter cable is connected to a USB port.
2. Click Start menu.
3. Right click on My Computer.
4. Select
Manage.
5. Select Device Manager.
6. Expand
the Ports (COM & LPT) menu.
7. Double-click to select USB Serial Port
(COM10 or similar).
8. Select Port Sett ings.
9. Click
on Advanced.
10. Select a COM port between 5 and 9 from
the COM Port Number dropdown menu.
11. Click OK to close.
12. Follow instructions for Connecting the
Pump to a PC (see page 4).
COM Port Window
