Place onto to tv, Mount left and right speakers – Salamander Designs FX200/LRK User Manual
Page 3
2.

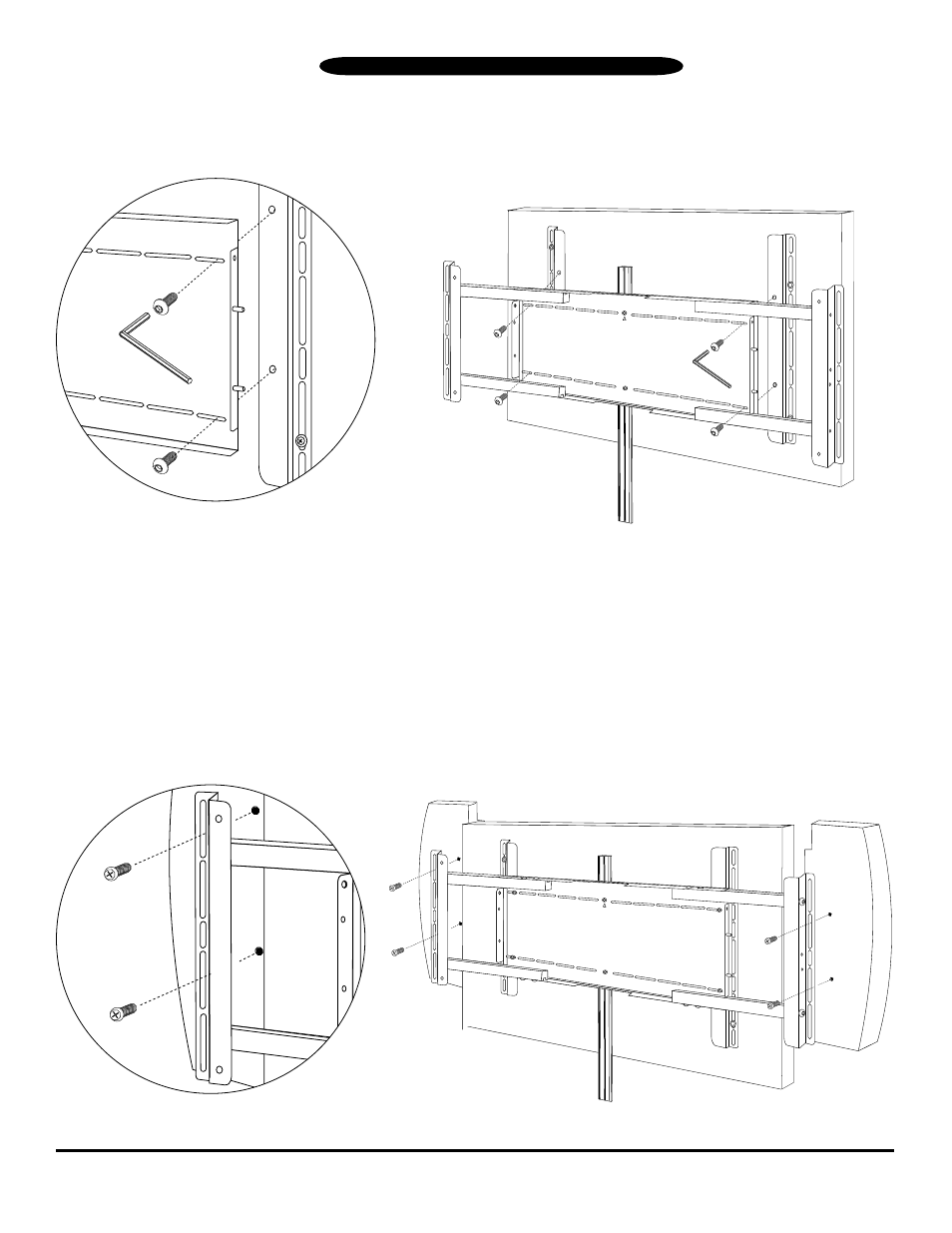

Place onto to TV
NOTE: Arrow indicates UP on horizontal interface bracket.
Center the horizontal interface bracket with speaker mounts onto the TV. Mount the bracket the two vertical brackets, using
4 mounting screws secure in place with the hex key. Hardware supplied with FX200 Mount.
3.
Mount Left and Right Speakers
Skip to step 4 if you are not installing left and right speakers.
Mount speakers onto vertical brackets using the supplied manufacturer screws.
Align speakers with center of TV.
Adjust speaker position maintaining approximate 1/2” clearance with TV.
Tighten the 8 top and bottom screws (B) with the hex key (A).
Salamander Designs Ltd.
www.salamanderdesigns.com
800-535-5659
© 2009 Salamander Designs Ltd.
Doc No. 501-410 / v.10.09 / 3 of 4
Center speakers on TV.
Refer to FX200 Mount instructions for more details.
