1.
Attach Speaker Posts
Left & Right Speaker Kit

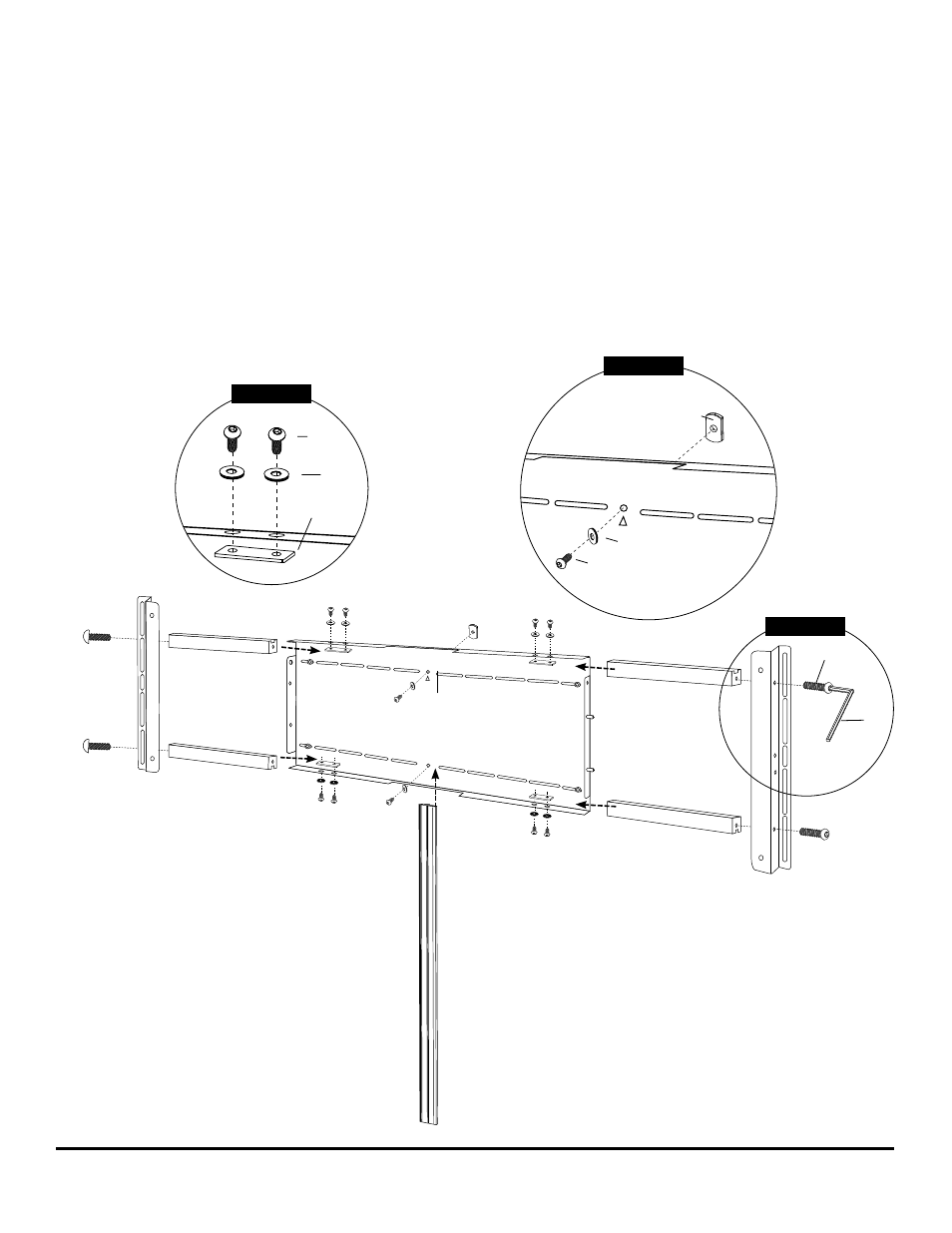

Loosely assemble 8 of the screws (B), washers (C) and
flat nuts (D) through the holes along the top and bottom
of the horizontal bracket. Do not tighten. See Diagram 1.
Slide the extrusion slot into the flat nut assembly as shown.
Attach speaker brackets using screws (E).
See Diagram 2.
Center Speaker Kit
Loosely assemble 2 of the screws (DD), washers (CC)
and flat nuts (EE) through the 2 holes along the center
of the horizontal bracket. See Diagram 3.
Slide the extrusion through the flat nuts (EE)
assembly as shown.
B
C
D
E
F
UP
DD
EE
Diagram 1
Diagram 2
Diagram 3
