MOTHER BOARD
FUNCTIONS
The Mother PC Board simply supplies a convenient
means to mount and interconnect the different
control components such as the relays, Master
and Motor Control PC Boards. It contains the
low voltage power supply fuse (F2). The power
supply generates +15VDC and -15VDC required
by the Control and Front Panel PC Boards. The
+15VDC and -15VDC outputs each have an LED
to indicate that they are functioning properly.

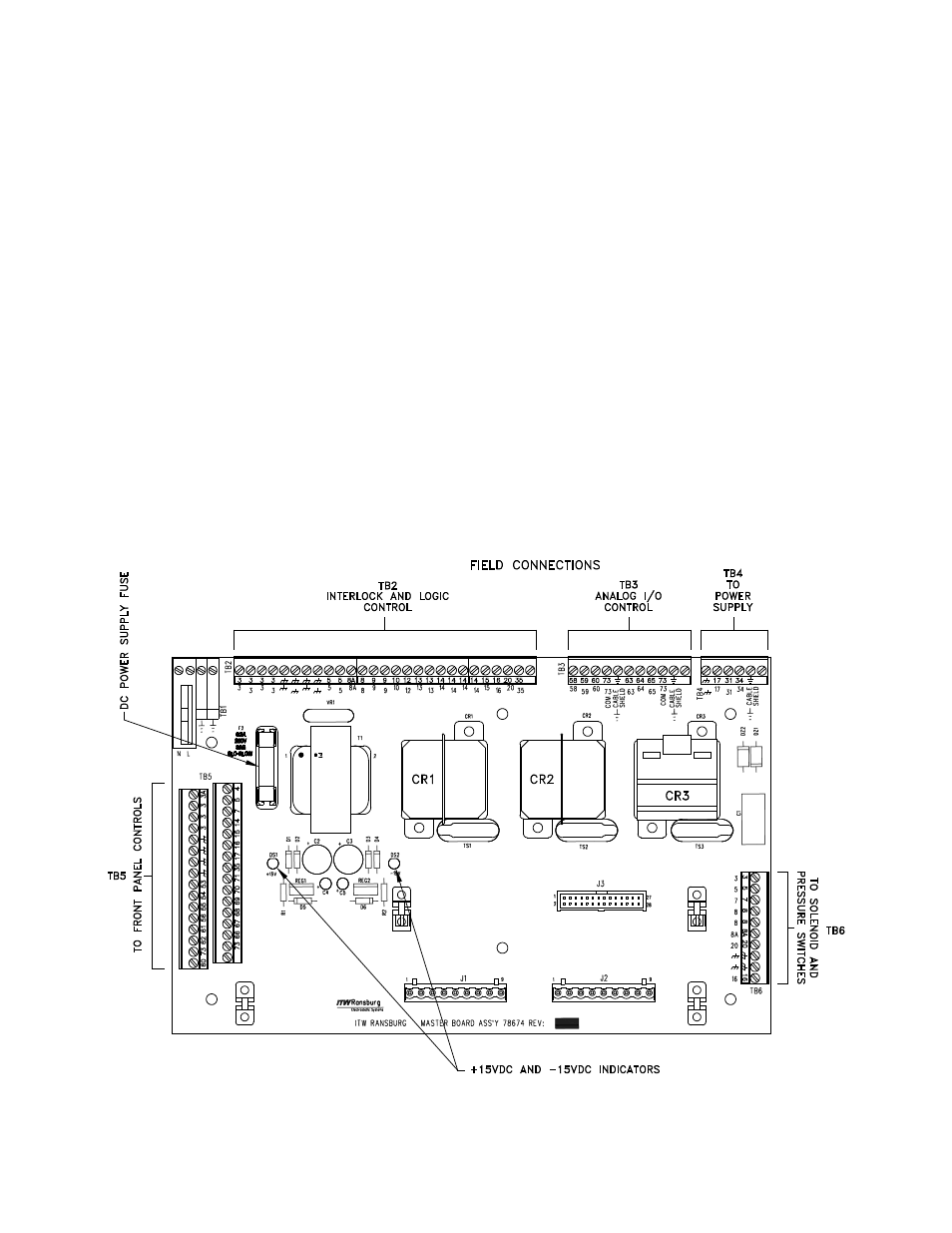

Figure 11: Motherboard PCB
Voltage Master 2 - Operation
25
Ransburg
CP-02-02.6
