SYSTEM INSTALLATION
The 78789 control panel can be interfaced with
Ransburg Air Logic Stations. Air Logic Stations
send and receive pneumatic signals for the pur-
pose of remote control from hazardous locations
such as inside the spray booth. Contact your local
Ransburg representative or customer support for
more detailed information on the Air Logic Stations
or additional control options.
The use of a constant voltage transformer (CVT)
is recommended. This will improve high voltage
regulation, especially if there are large AC line
voltage fluctuations or voltage transients such
as those typically produced by heavy electric
machinery or welding equipment. CVT's are
available from local electrical suppliers and can
be used between the fused disconnect and the
control panel. The CVT should be rated for 750VA
or greater and be properly rated for the voltage
and frequency of the source power supplied by
the fused disconnect.

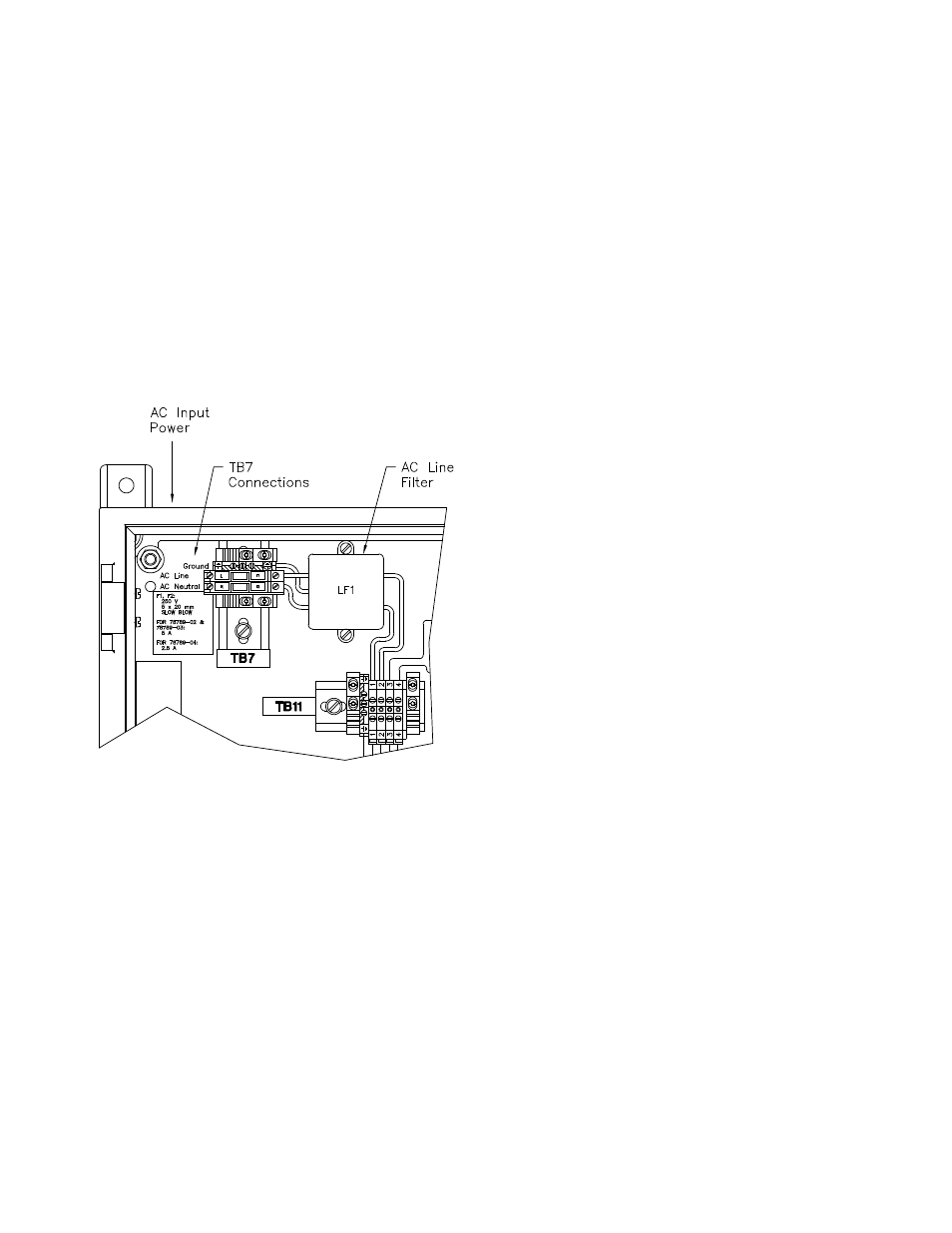

Figure 4: AC Power Input Connections
Voltage Master 2 - Installation
15
Ransburg
CP-02-02.6
