Section 3: Assembly
08/12 15 51300 Rev. 1

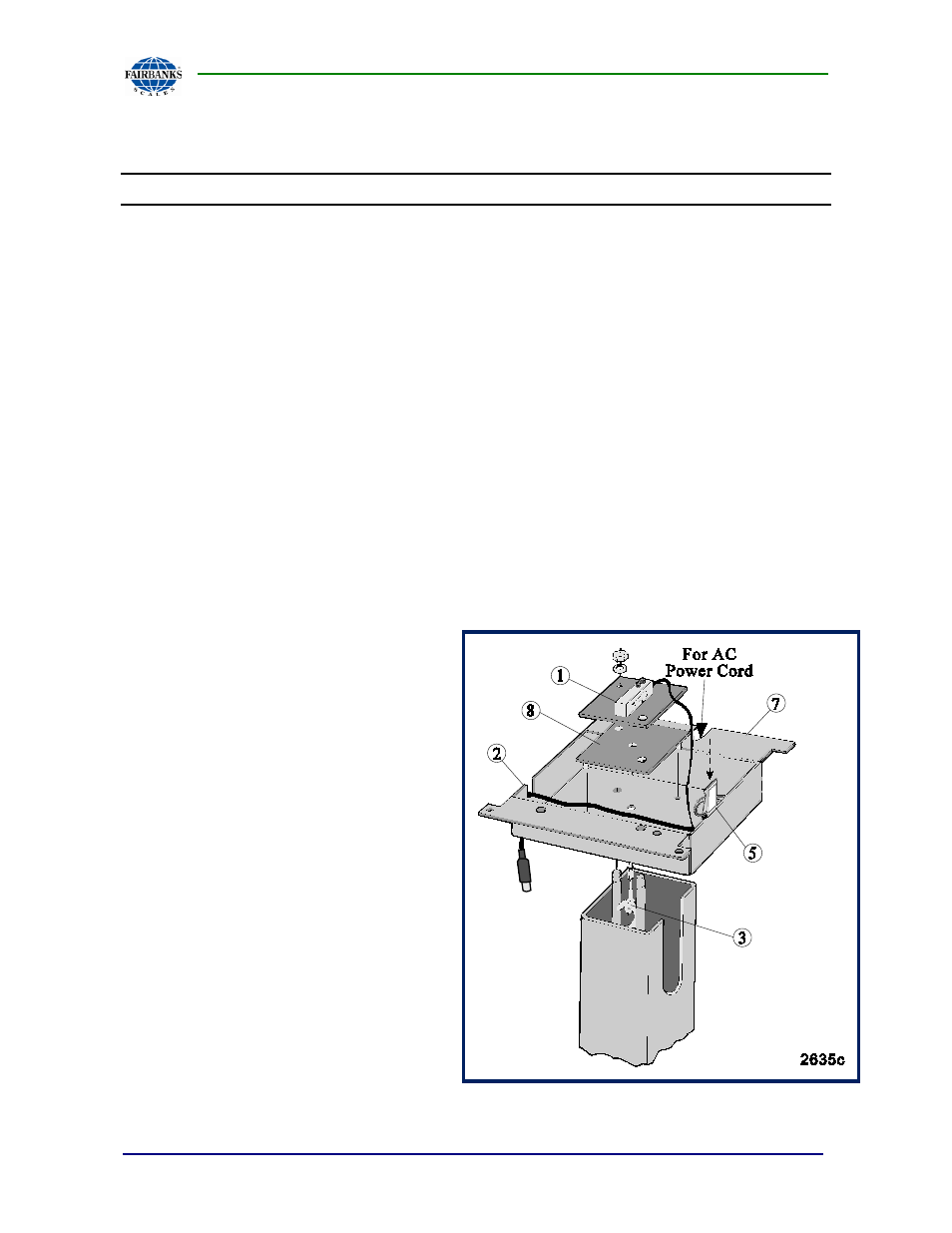

3.3. MOUNTING BRACKET KIT ASSEMBLY
NOTE: The MOUNTING BRACKET KIT ASSEMBLY is partially assembled.
1. With the portable platform right-side-up, place the Bracket ( #7 ) on top of the
pillar.
– The two (2) pillar rods must pass through the two (2) holes in the Bracket
( #7 ).
– The scale display may face any direction on the platform.
2. Place the Stiffener Plate ( #8 ) on the pillar rod, inside the bracket.
3. From the parts envelope, remove the Cable Assembly ( #2 ) which connects the
load cell to the platform.
4. Turn the Jam Nut onto the Linkage Assembly all the way to the bottom of the
threads.
5. Insert the threaded end of the Cable Assembly ( #2 ) into the hole in the bottom of
the Load Cell Assembly ( #1 ).
6. Turn the Linkage Assembly until the top of the threads can be seen in the Load
Cell opening.
7. With a quarter inch (¼”) wrench,
gently tighten the Jam Nut against
the Load Cell.
8. Place the Load Cell Assembly
( #1 ) on top of the pillar bolts, with
the load cell cable exiting in the
direction to easily connect the cable
to the counting scale.
