)(& ,QF
200~230 VAC + 10% 50/60Hz Single Phase 3
200~230 VAC + 10% 50/60Hz Single Phase 2
FRAME GROUND 1
DESCRIPTION PIN NUMBER

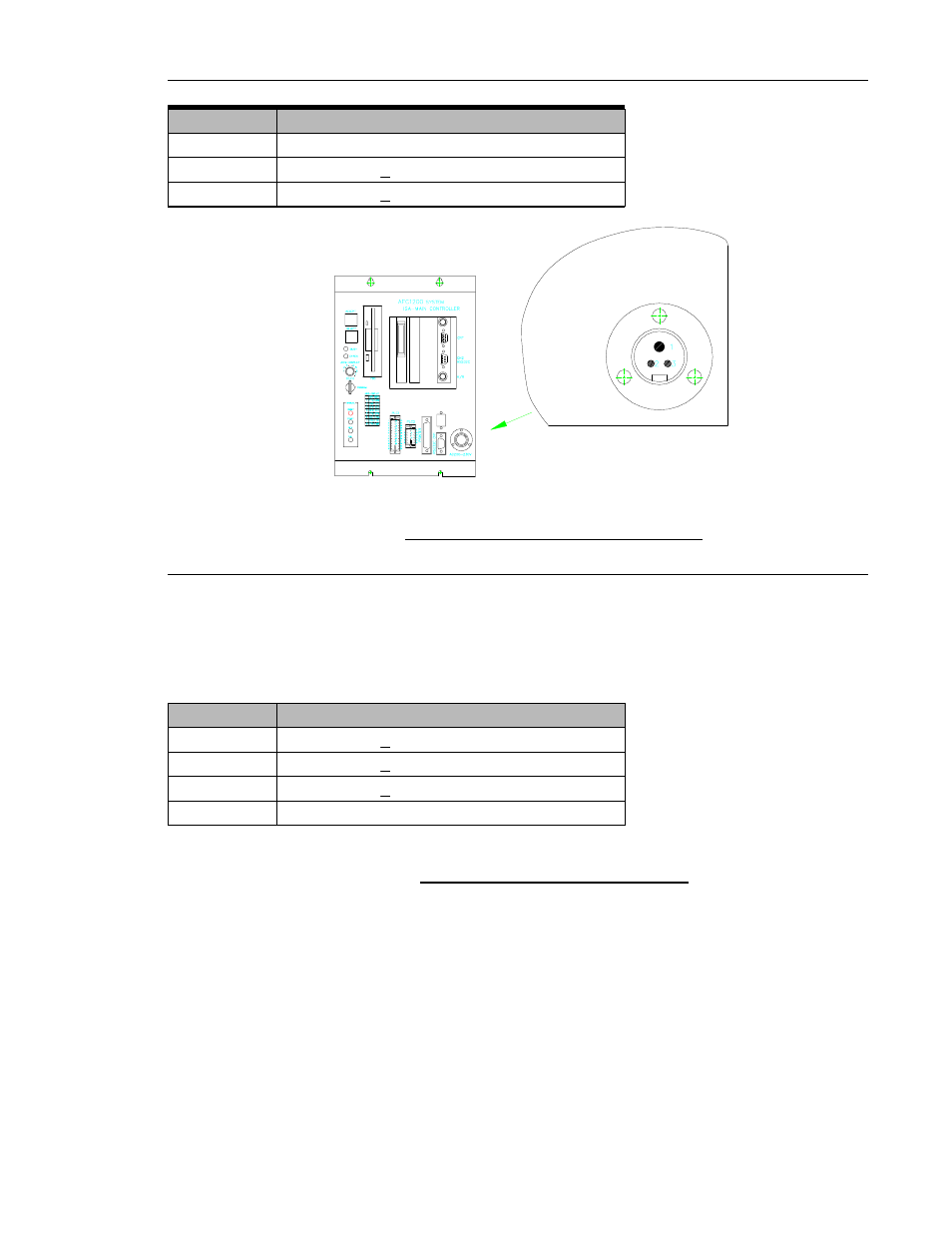

FIG. 4-6-2 ISA Main Unit Power Connector
4.6.3 Axis Controller Unit
WARNING:
Follow Lockout/Tagout and other safety precautions when connecting and
disconnecting cabling, wiring, and equipment.
FRAME GROUND D
200~230 VAC + 10% 50/60Hz 3-Phase C
200~230 VAC + 10% 50/60Hz 3-Phase B
200~230 VAC + 10% 50/60Hz 3-Phase A
DESCRIPTION PIN NUMBER
FIG. 4-6-3 Axis Unit Power Connector
NOTE: After an Axis Unit is powered down, the power must not be applied again for at least five (5)
seconds. Repeated power up and power down may temporarily disable the Axis Unit. If an
Axis Unit does become disabled, turn the power off for five (5) minutes before making
another attempt to power up.
Chapter 4: System Setup and Wiring
Page 4-11
