Preceptor Series – Remote Load Die Cast EXIT Series
Emergi-Lite Tel: (888) 552-6467 ext. 547 or 255 Fax: (888) 867-1565 www.emergi-lite.com 07/04 750.1099 Rev. A
4/4
Unit with Advanced Diagnostic battery charger (green & red
LED)
The display of the advanced diagnostic charger includes a green LED for
“AC ON” and a red LED for “Service Alarm” ( see fig. 8). In normal AC
operation the green LED is on and the red LED is off. The “Service
Alarm” turns on whenever the equipment has identified a component
fault in either the charger circuitry, the battery, the emergency remote
load, etc. If the “service alarm” turns on, the canopy has to be opened
for troubleshooting - for details read the Remote Canopy AD - Owner’s
Manual.
1. Manual Test
Push the test button: the “AC ON” indicator will stay on, the EXIT sign
and the remote lights will turn off. The one-minute test can be aborted
earlier by pressing the test button another time.
2. Time Delay (optional)
After a short-duration power failure, the unit equipped with the time delay
option will remain in emergency mode with the remote load turned ON
for the length of the time delay (5,10,15,20 minutes). Once this time has
elapsed, the unit will automatically go back to stand-by.
3. Advanced Diagnostic Testing
For details, see the Owner’s Manual “Remote Canopy Advanced Diag-
nostic”.
Maintenance
None required. The regular charger unit should be tested monthly in
accordance with the requirements of NFPA 101, Life Safety Code or
local codes. If AC supply to the unit is to be disconnected for 2 months or
more, the battery must be disconnected.

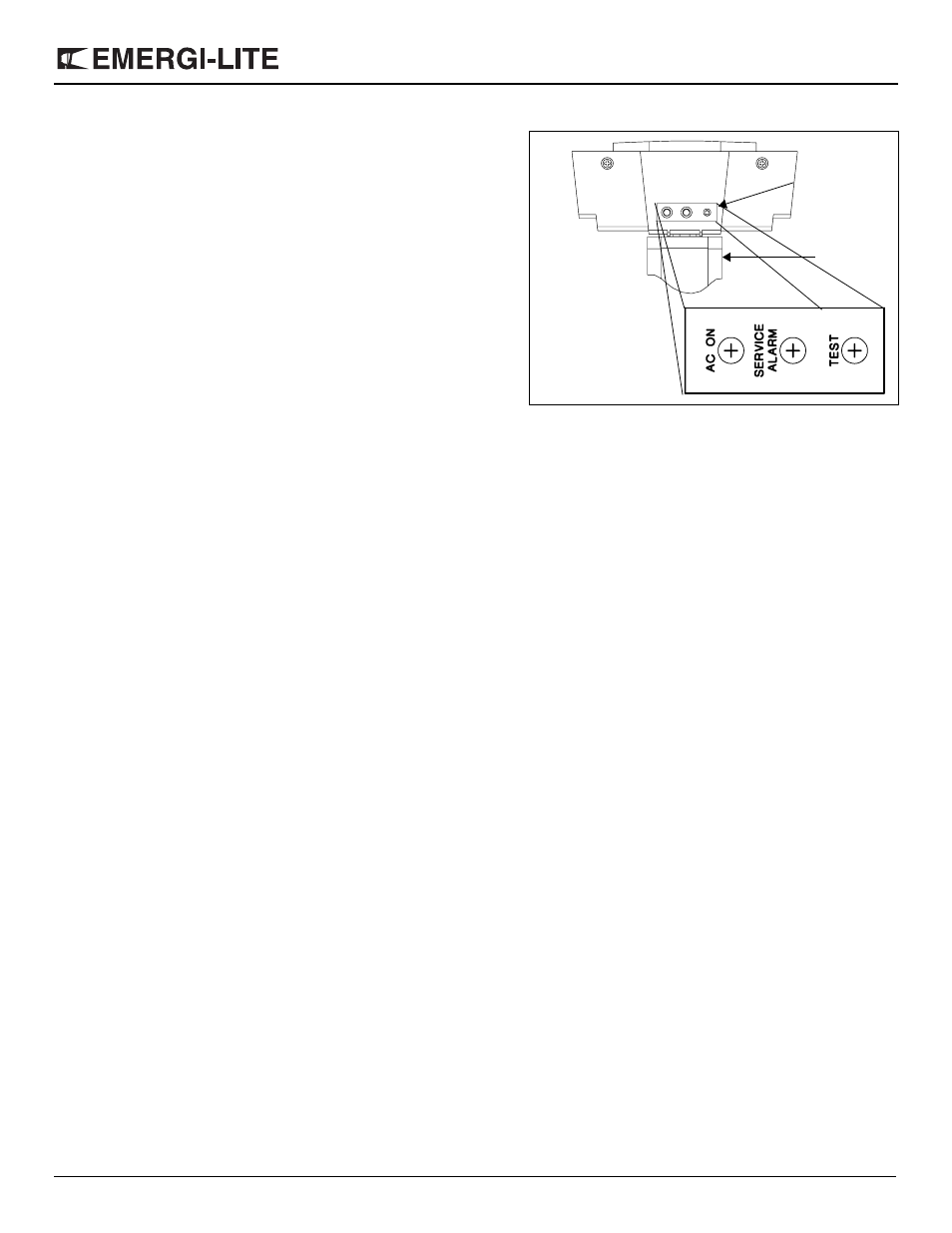

Figure 8
Test switch
Exit frame
and pilot light
