Operation 4 IR7000
32
Teledyne Analytical Instruments., - Rev. 3
submenu using the UP (
Δ) or DOWN (∇) buttons To access the next
submenu within the SETUP menu, release the SETUP button then press
the SETUP button again. This cycles through the submenus one at a time.
To configure the instrument for your application, follow the steps
outlined below.

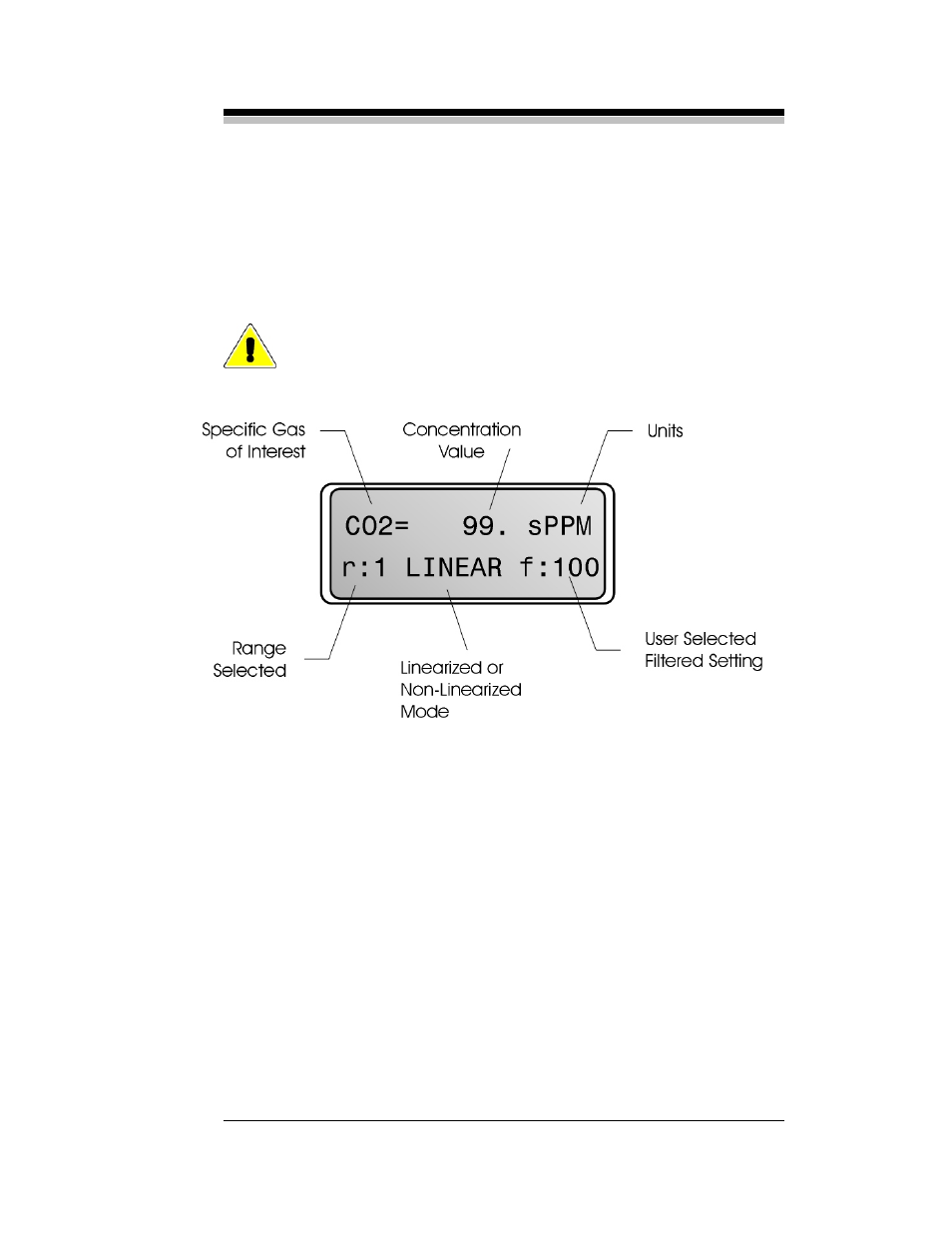

CAUTION: Make sure that the power cord is attached and the instrument is
properly grounded. Make sure that there are no leaks in the
sample system.
Ensure that the inlet pressure of the sample gas is less than 5
psig and stable.
Figure 4-1: SETUP and MODE Menus
SETUP MODE
Cal Gas Calibrate
Full Auto Chart =
Range (1-4) Filter =
Alarm L Calibration Hold/Track
Alarm H Linear/Non linear
Cal Delay Bright =
O2 Cal Gas Alarm = On/Off
Auto = Full/Zero
