Fulton Alliance (FT-HC) Horizontal Coil Thermal Fluid (hot oil) Heater - Manual (Page 27)

Questions? Call (315) 298-5121, or visit us online at www.fulton.com
SECTION 2
FTHC-IOM-2012-1001
INSTALLATION
2-21
(50.8)
2
C
L
J
E
F
D
1/2C
(76)
3
A
N2 REGULATOR
CONNECTION
TEST
MANUAL
LEVEL
LIQUID
DRAIN & LIQUID LEVEL
(13)
1/2
DRAIN
N
G H
OUTLET
INLET
COUPLING
SWITCH
LIQUID LEVEL
BUFFER
THERMAL
DEAERATOR
M
B B
K
EXPANSION TANK
(13)
1/2
(TYP.)
VENT
P
VALVE CONN.
SAFETY RELIEF

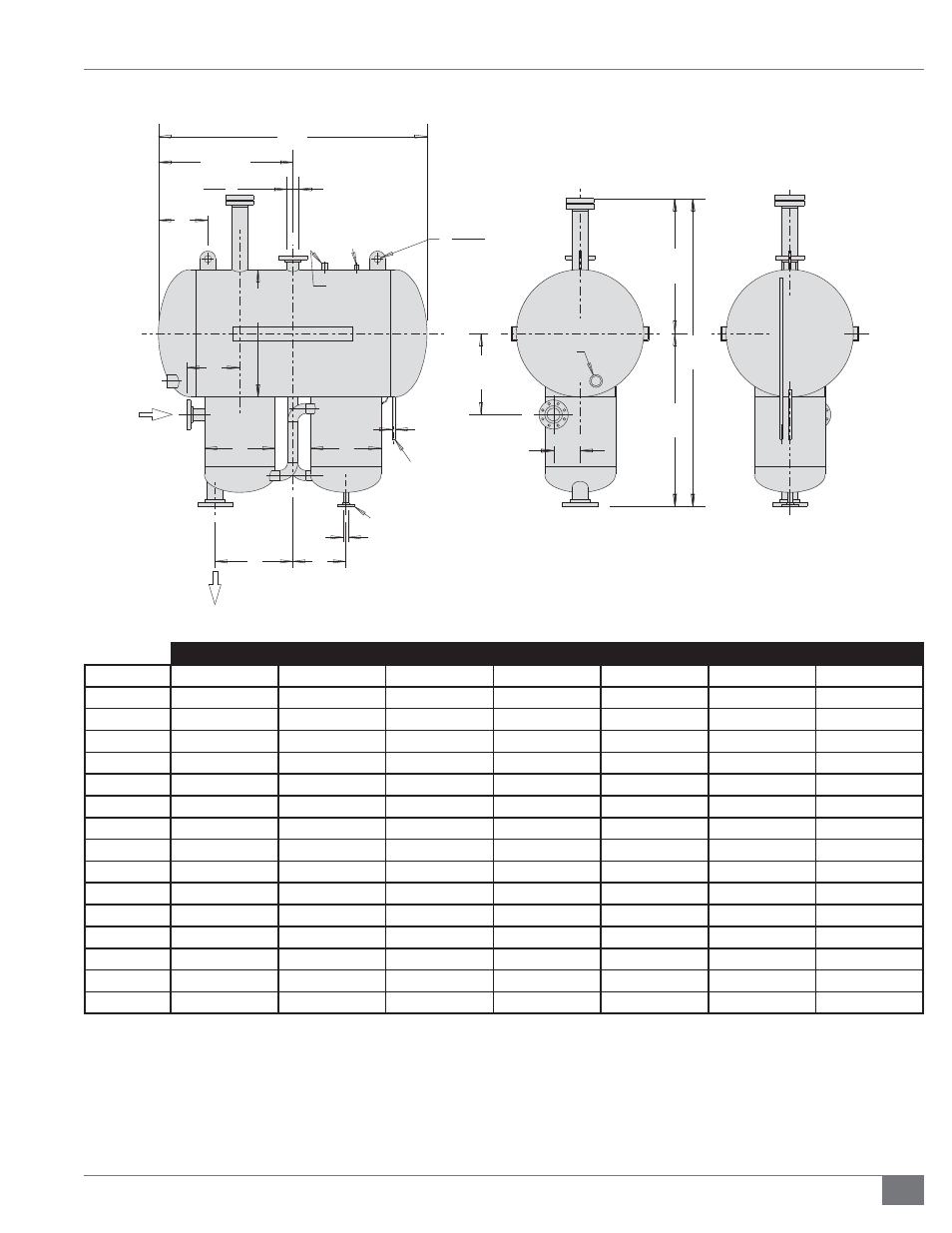

FIGURE 12 - COMBINATION/EXPANSION/DEAERATOR THERMAL BUFFER TANK
FT-0200-L FT-0500-L FT-1000-L FT-1500-L FT-2000-L FT-3000-L FT-5000-L
A 20 (510) 26 (660) 36 (915) 36 (915) 42 (1070) 42 (1070) 60 (1524)
B 12 3/4 (325) 16 (405) 20 (510) 20 (510) 22 (560) 26 (660) 26 (660)
C 54 (1370) 74 (1880) 76 (1930) 106 (2690) 106 (2690) 140 (3556) 130 3/8 (3312)
D 60 5/8 (1540) 66 5/8 (1692) 87 5/8 (2226) 87 (2210) 107 5/8 (2734) 115 1/8 (2924) 132 1/8 (3356)
E 34 (865) 37 (940) 49 (1245) 49 (1245) 62 1/2 (1590) 70 (1778) 77 1/2 (1969)
F 26 5/8 (676) 29 5/8 (752) 38 5/8 (981) 38 5/8 (981) 45 1/8 (1146) 45 1/8 (1146) 54 5/8 (1387)
G 16 11/16 (424) 19 3/4 (502) 22 1/4 (565) 24 3/4 (629) 31 3/16 (792) 33 3/16 (843) 32 3/16 (818)
H 12 (305) 14 (355) 15 (380) 17 1/2 (445) 24 (610) 24 (610) 24 (610)
J 4 1/2 (115) 6 (150) 7 11/16 (202) 8 (203) 8 1/2 (216) 9 15/16 (252) 9 3/8 (238)
K 4 1/4 (108) 11 1/2 (290) 14 (355) 14 (355) 15 1/2 (394) 15 1/2 (394) 20 5/8 (524)
L 15 (380) 18 (460) 24 (610) 24 (610) 28 (710) 28 (710) 37 (940)
M 12 15/16 (329) 14 15/16 (379) 14 15/16 (379) 14 15/16 (379) 14 15/16 (379) 18 15/16 (481) 18 15/16 (481)
N 3/4 (20) 3/4 (20) 1 (25) 1 (25) 1 (25) 1 (25) 1 (25)
P 3/4 (20) 3/4 (20) 1 (25) 1 1/4 (32) 1 1/2(38) 1 1/2 (38) 1 1/2 (38)
Dry Wt. 636 (289) 970 (440) 1350 (612) 1710 (776) 2550 (1134) 3200 (1451) 5300 (1637)
Max Full Wt. 1314 (596) 2450 (1111) 4380 (1987) 5875 (2667) 8230 (3733) 11,610 (5265) 17,370 (7895)
Inlet and outlet dimensions vary with installation. All dimensions are approximate. Specifi cations are subject to change without notice.
Dimensions are in inches (mm). Capacities are in gallons (liters). Weights are in pounds (kg).
