Fulton Vertical Electric (FT-N) Thermal Fluid (hot oil) Heater - Manual (Page 25)

Fulton Thermal Corp.*Electric Thermal Fluid Heaters Manual* Version 2010-0423
Page 25

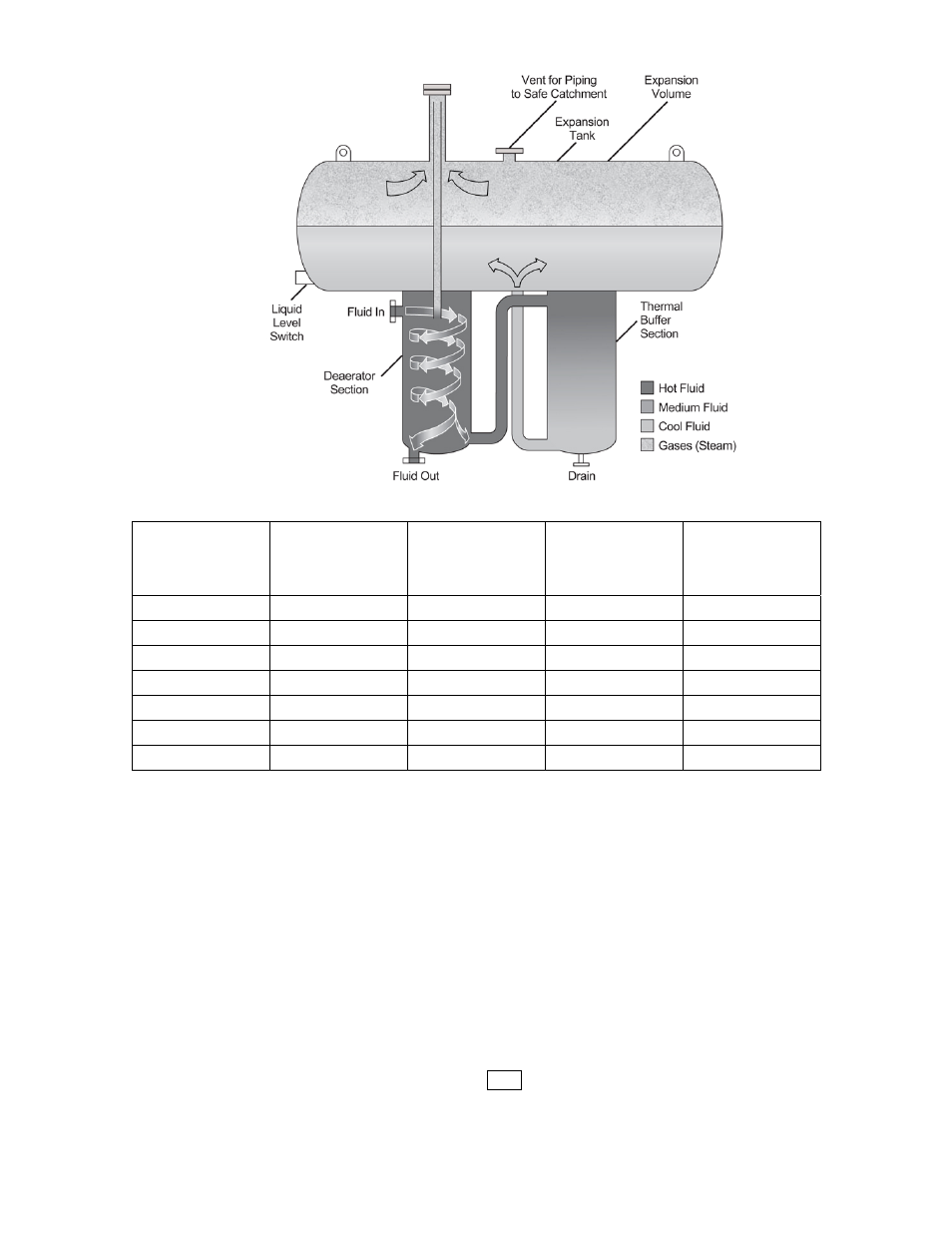

Model Capacity
(Gallons)
Initial Fill
(Gallons)
Available for
Expansion
(Gallons)
Max System
Volume
FT-200-L 52 25 46 184
FT-500-L 132 40 121 525
FT-1000-L 264 80 232 1000
FT-1500-L 397 90 380 1400
FT-2000-L 528 145 444 1700
FT-3000-L 793 215 717 2600
FT-5000-L 1310 300 1168 4600
9. Pressurized Systems
a) Nitrogen pressurization may be used to advantage where the total system content is very
large or in a system operating near or above the vapor pressure of the fluid employed or
if the inlet of the DA tank is not the highest point in the piping system.
b) In conjunction with this system, an automatic venting device must be fitted to the system
expansion tank. Consult Fulton Thermal Corporation for further details.
c) The location for the liquid level switch is a 2-1/2” NPT connection on the same end of the
tank as the inlet. The liquid level switch is supplied and shipped with the unit, and must
be installed by the customer and then wired to the control panel.
Note
If the tank is located outdoors nitrogen is required.
