SECTION 2
FTA-IOM-2013-0227
INSTALLATION
2-33
Roof
Minimum
6' Above
Any Structure
Within 30'
Support As
Necessary
Install
Appropriate
Weather
Cap
Horizontal
Run 2'
Draft Regulator
(If Necessary) Draft Regulator
(If Necessary)
Expansion Joints
As Required
Horizontal
Run 2'
60°
(45° Min.)
Cleanout
Door
Cleanout
Door
Cleanout
Door
This Distance
Must Not
Exceed 70%
Of Total Rise
Baffle
3'
3'
30°
Max
Stagger
Entrances
A A
A-A
Tota
Rise

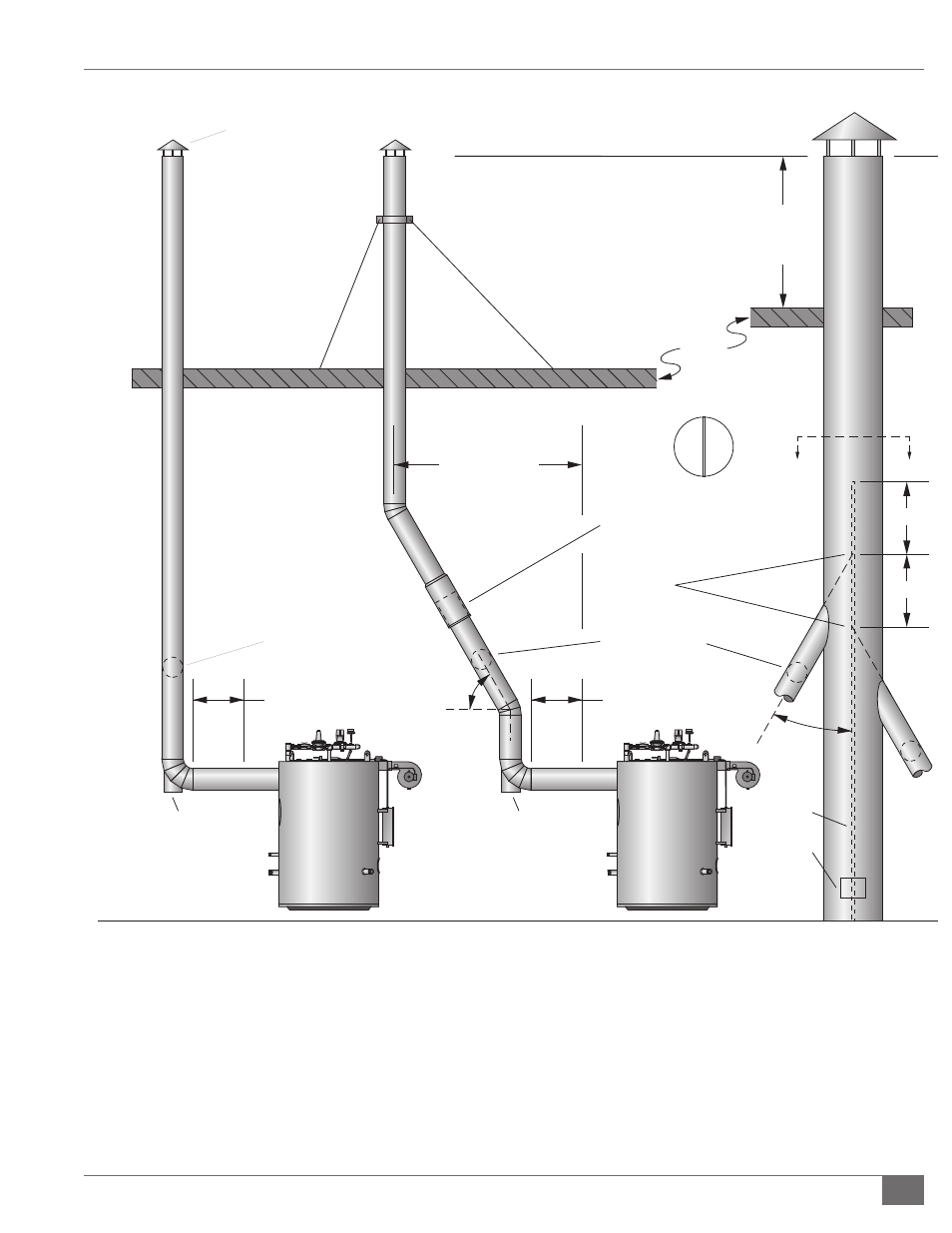

FIGURE 17 - TYPICAL STACK AND FLUE INSTALLATION
