Fulton Vertical Tubeless (FT-A) Thermal Fluid (hot oil) Heater - Manual (Page 15)

Questions? Call (315) 298-5121, or visit us online at www.fulton.com
SECTION 2
FTA-IOM-2013-0227
INSTALLATION
2-9

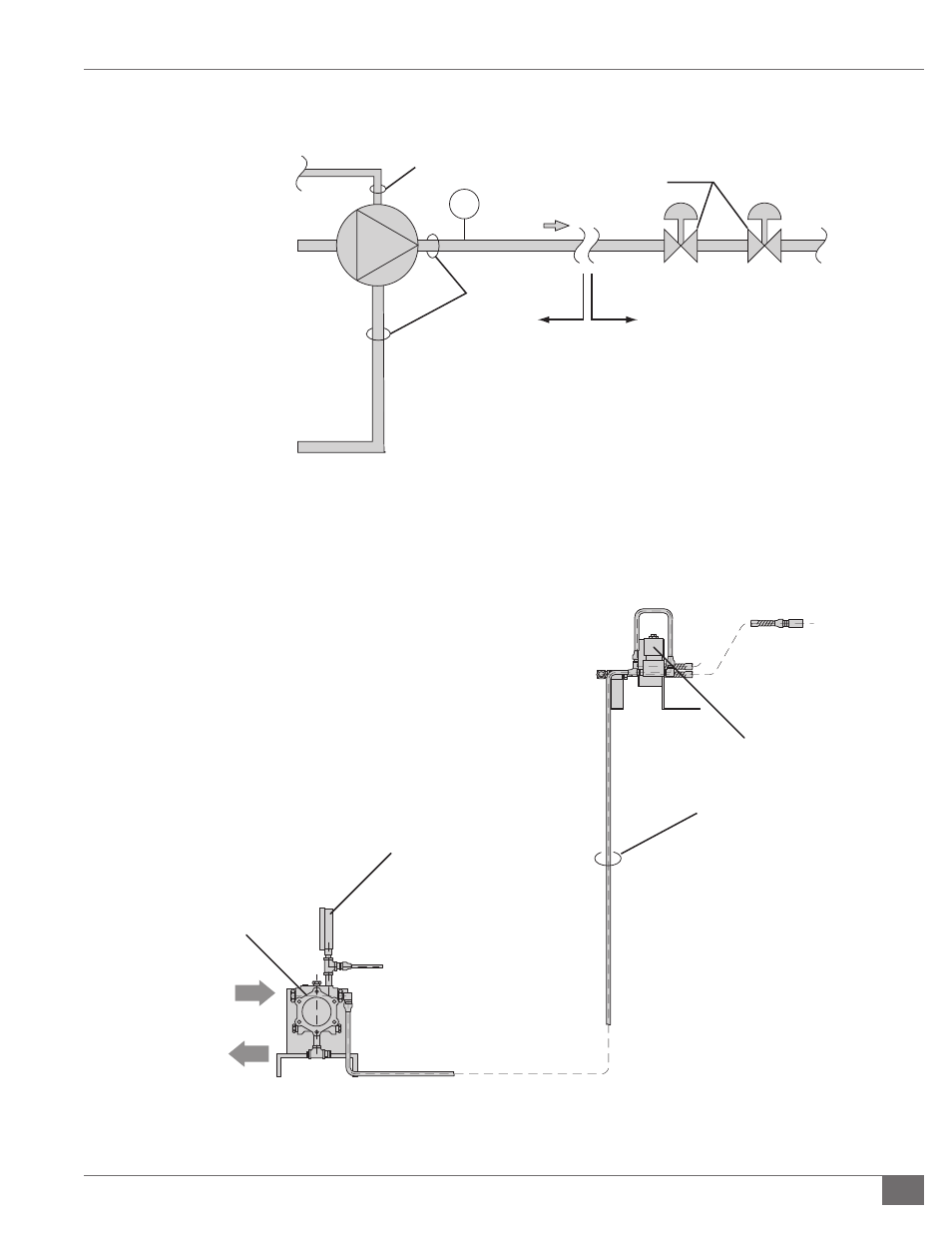

FIGURE 4 - TYPICAL NO. 2 OIL FIRED FUEL TRAIN
0-400 PSIG
TO LOW PRESSURE OIL
SWITCH ON CONTROL PANEL
RETURN
TO TANK
PUMP
INLET
BURNER
3/8" COPPER
TUBING
OIL S.S.O.V.
MOUNTED
TO SKID
MOUNTED TO
TOP OF UNIT
PI
1/4" COPPER
TUBING
SUPPLY
NC OIL VALVE
PRESSURE
INDICATOR
FUEL
OIL PUMP
INLET
RETURN
3/8" COPPER
TUBING
