Introductory Rotational Apparatus

012-03051F

24

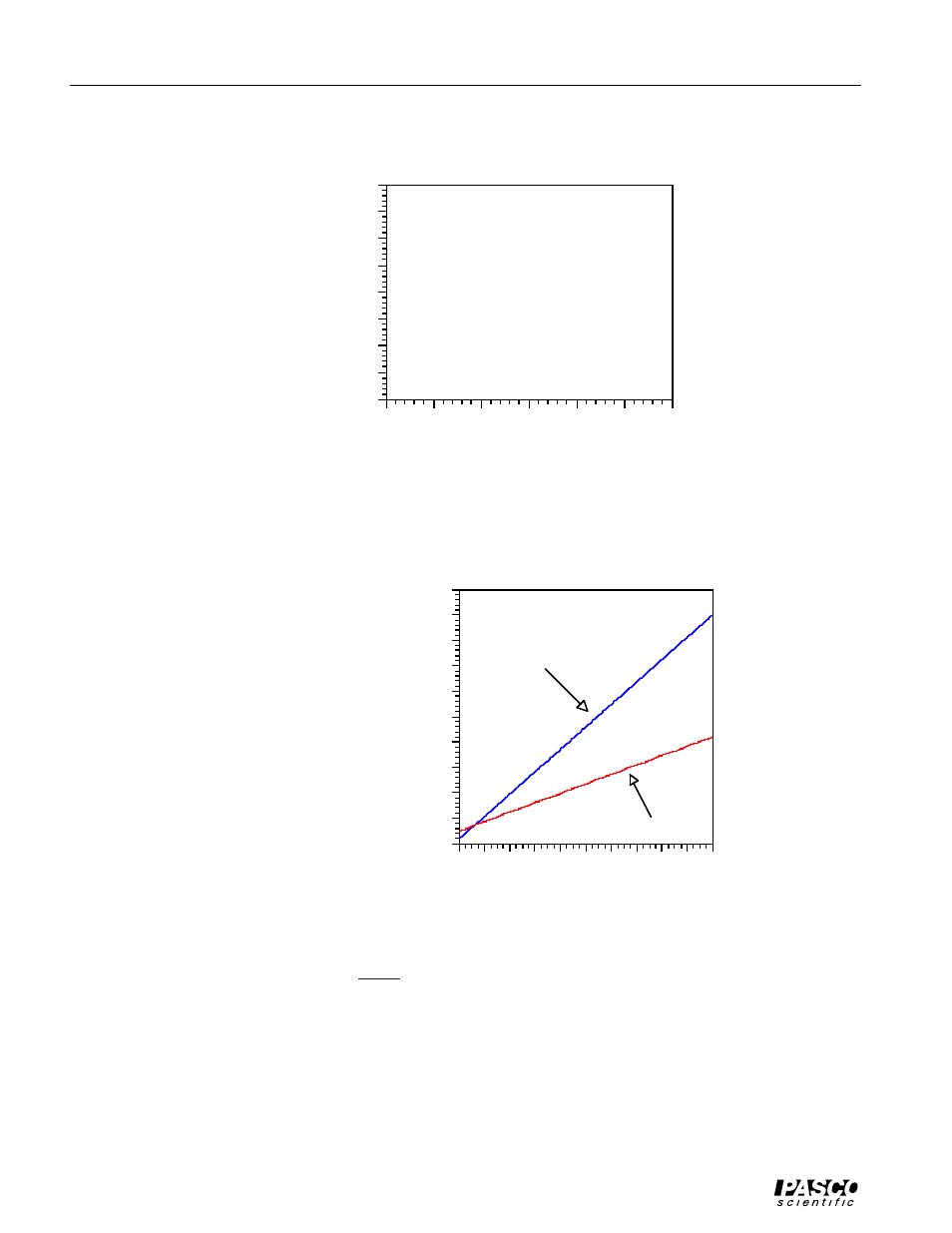

Acceleration vs. Force

Radius = 1.5 cm

0

0.5

1

1.5

2

2.5

3

3.5

4

4.5

5

0

0.2 0.4 0.6 0.8

1

1.2 1.4 1.6 1.8

2

Angular Acceleration

Applied Force

Base plate alone

With added disk

Ranking the three objects in increasing order of inertia would give: ring, bar, then disk. This is misleading,
because for objects of the same mass and radius the ring would have the highest inertia. The lower inertia of the
ring is due to its smaller radius, not its shape.

Using the spring scale as a constant-force apparatus is good in a way because it allows the student to directly see
that the acceleration is proportional to the force, without messing around with the falling masses as in experiment
2. Its accuracy is limited, however, by the difficulty in maintaining a constant force on the scale. For this reason, I
would consider experiment 2 to be preferable to experiment 1 for anything but the most basic introductory course.

The acceleration is directly proportional to the
force for a constant radius.

Increasing the mass by adding another disk
increased the rotational inertia and decreased
the acceleration.

Notes – on Analysis

The acceleration is directly propor-
tional to the radius for a constant
force.

0

0.5

1

1.5

2

2.5

3

3.5

4

0

0.005

0.01

0.015

0.02

0.025

0.03

Angular Acceleration

Radius

Acceleration vs. Radius

Force = 1.0 N

Acceleration vs. Force

Radius = 1.5 cm

Acceleration vs. Radius

Force = 1.0 N
