CC6566 - CC6566-3 Concrete Saw Manual

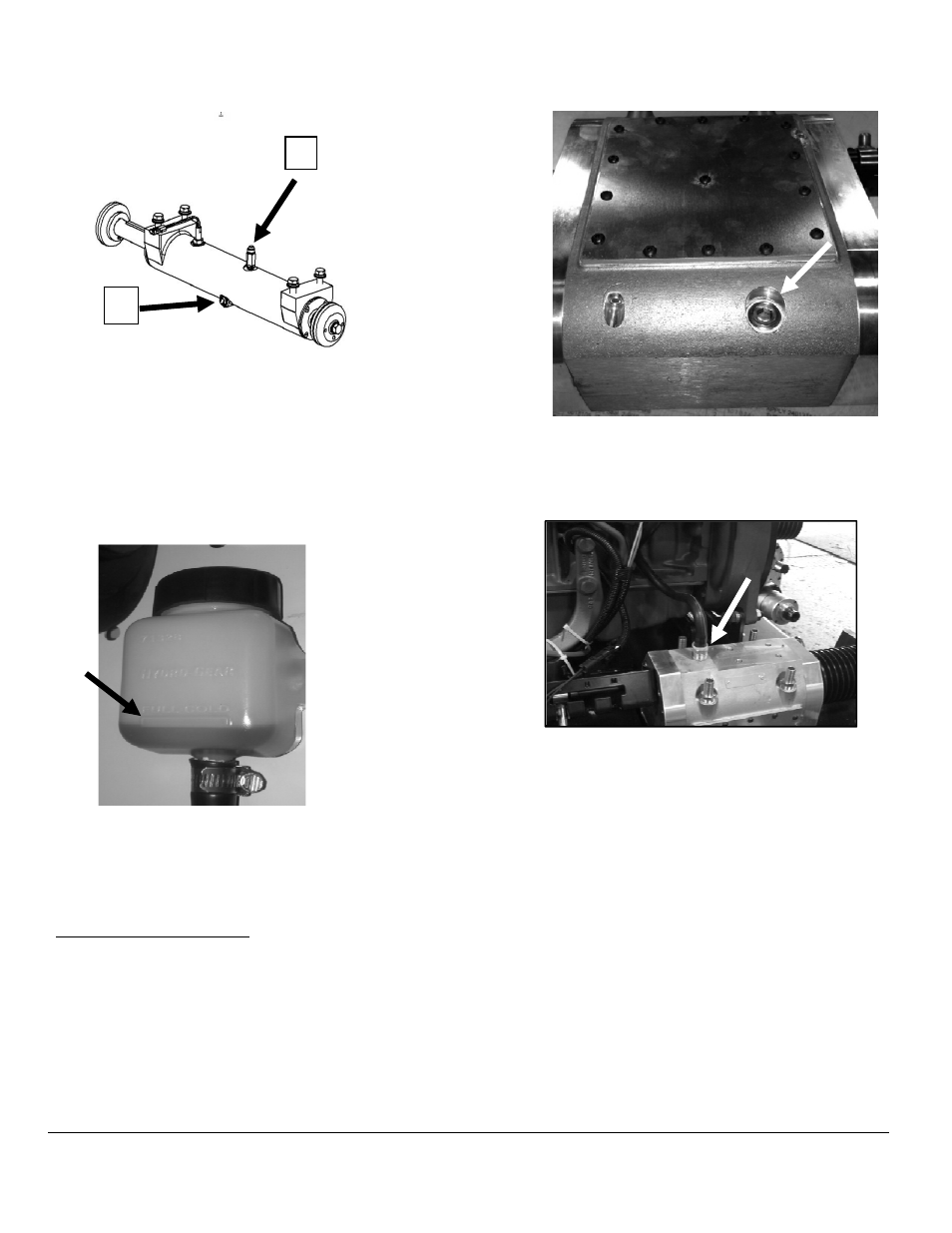

Figure 48 Single Speed Blade Shaft
Assembly
A – Casing vent line
B – Oil drain plug
8. Add automatic transmission fluid into the
expansion tank up to the Full Cold line.
Figure 49 Expansion Tank
9. Discard the used transmission fluid according to
city, state, and federal regulations.
Changing Oil - Three Speed
1. Raise saw to a slight angle for better drainage.
2. Place an oil pan beneath the 3-speed
transmission casing.
3. Using a 3/8” hex key wrench, remove the 1/2”
pipe plug located on the lower right rear of the
3-speed casing.
Figure 50 Casing Drain Plug
4. Remove the casing vent line by unscrewing the
3/8” pipe fitting on the top of the casing.
Figure 51 Casing Vent Line
5. Flush the casing by pouring SAE 75W-90
synthetic gear oil or equivalent in the top of the
casing until clean oil is discharged through the
lower drain port.
6. Replace the 1/2" pipe plug in the lower drain
port and remove the oil pan from beneath the
saw.
7. Lower the saw a horizontal position.
8. Remove the 3/8” overflow pipe plug from the
right hand side cover of the transmission.
A
B
