Introducing the CC6566 and CC6566-3
Components

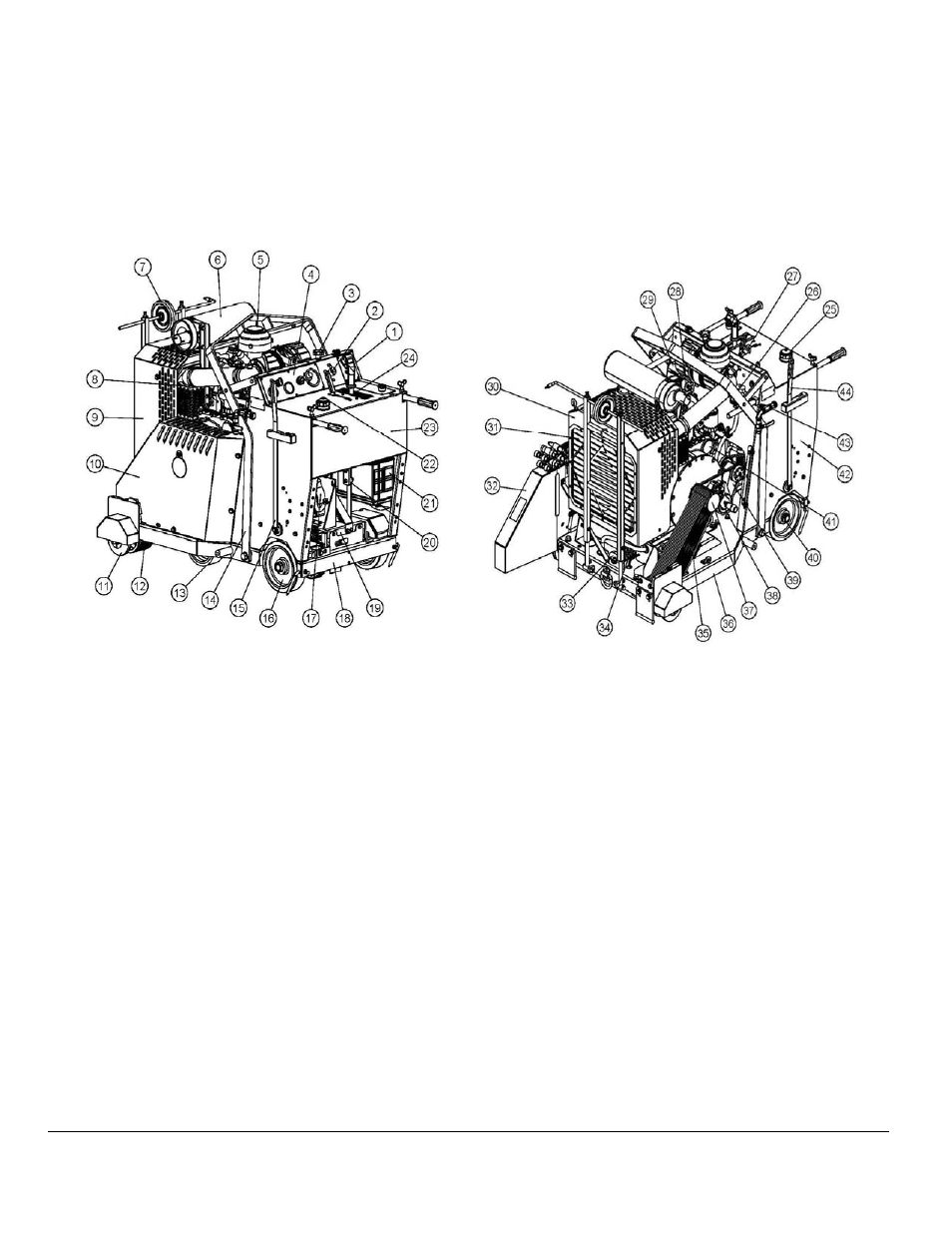

Figure 1: Side Views of CC6566
1. Control Grip
2. Depth
Indicator
3. Depth Stop
4. Instrument Panel
5. Air Cleaner
6. Muffler
7. Front
Pointer
8. Engine
9. Radiator
Shroud
10. Belt Guard
11. Blade Shaft
12. Belt Drive
13. Front Wheel and Axle
14. Frame
Lift
15. Parking Break
16. Rear Axle
17. Eaton Transmission
18. Frame Base
19. Rear Drive Assembly
20. Control
Lever
21. Battery
22. Fuel Tank Assembly
23. Frame
Upright
24. Control Lever
25. Fuel Tank Assembly
26. Expansion
Tank
27. Instrument Panel
28. Fuel Supply
29. Coolant Tank
30. Radiator Shroud
31. Radiator
32. Blade
Guard
33. Belt Tensioner
34. Detent Pin (CC6566-3)
35. Belt Drive
36. Frame Base
37. PTO Assembly
38. Rotary Tensioner
39. Transmission
Jackshaft
40. Rear Axle
41. Engine
42. Frame
43. Water Supply
44. Parking Brake
