Restriction Indicator

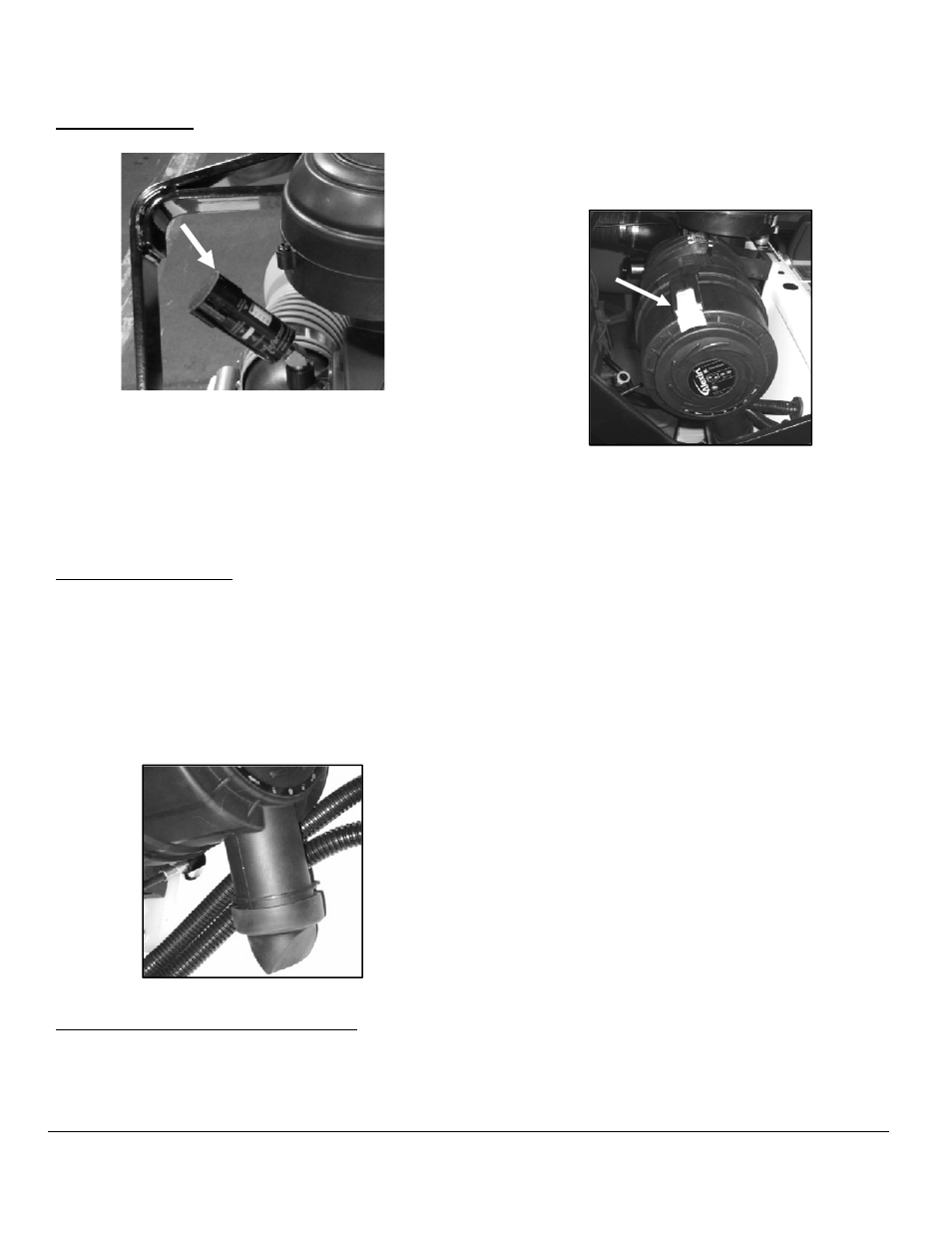

Figure 40: Restriction Indicator
1. Service the air cleaner when the restriction
indicator turns red.
2. Press the restriction indicator reset button on
the top of the indicator to reset the unit after the
air cleaner has been serviced.
Rubber Dust Ejector Boot
The rubber dust ejector boot valve ejects debris
and water when operating the saw. Occasionally
inspect and clean the ejector boot.
 Press inward on both sides of the ejector boot
near the valve opening to release debris and
water, and clean the valve opening as
necessary.
Figure 41: Rubber Dust Ejector Boot
Cleaning/Replacing the Outer Primary Filter
Service the outer primary filter according to the
restriction indicator service bar. Replace the filter
annually. DO NOT over-service or under-service
the filter. DO NOT operate the saw without the filter
installed.
1. Pull out the tab on the air cleaner’s end cover.
Figure 42: End Cover Tab
2. Turn the end cover clockwise to unlock the
cover and pull the end cover away from the air
cleaner.
3. Pull the outer primary filter out of the air cleaner
and inspect it for damages. Replace as
necessary.
4. Move away from the saw and clean the filter
from the inside out. Use dry compressed air to
clean the filter (a maximum of 70 psi or 5 bar),
or lightly tap or wash the filter out. Let the filter
dry completely after washing. DO NOT damage
the filter when cleaning.
5. Inspect the inside of the air cleaner and the end
cover for debris, and wipe them down with a
damp cloth as necessary. DO NOT use
compressed air to blow out the inside of the air
cleaner. DO NOT allow dust to enter the air
intake tube when cleaning or replacing parts.
6. Place the filter into the air cleaner (over the
inner safety filter) and gently push the filter into
the unit until it feels secure.
