Forward Control
Push the speed control lever forward to the desired
traveling speed. The maximum speed the saw will
move forward, at full throttle, is 200 ft/min.
Reverse Control
Pull the speed control lever backward to the
desired traveling speed. The maximum speed the
saw will move in reverse, at full throttle, is 200
ft/min.
Neutral Control
Place the speed control lever at Neutral to stop the
saw from moving forward or backward. DO NOT
assume at any time that the transmission will act as
a brake in neutral
.
Transmission
Disengage the transmission prior to starting the
engine to prevent unnecessary saw movement.
The engine must run at half throttle or greater for
proper transmission efficiency when maneuvering
the saw with power.

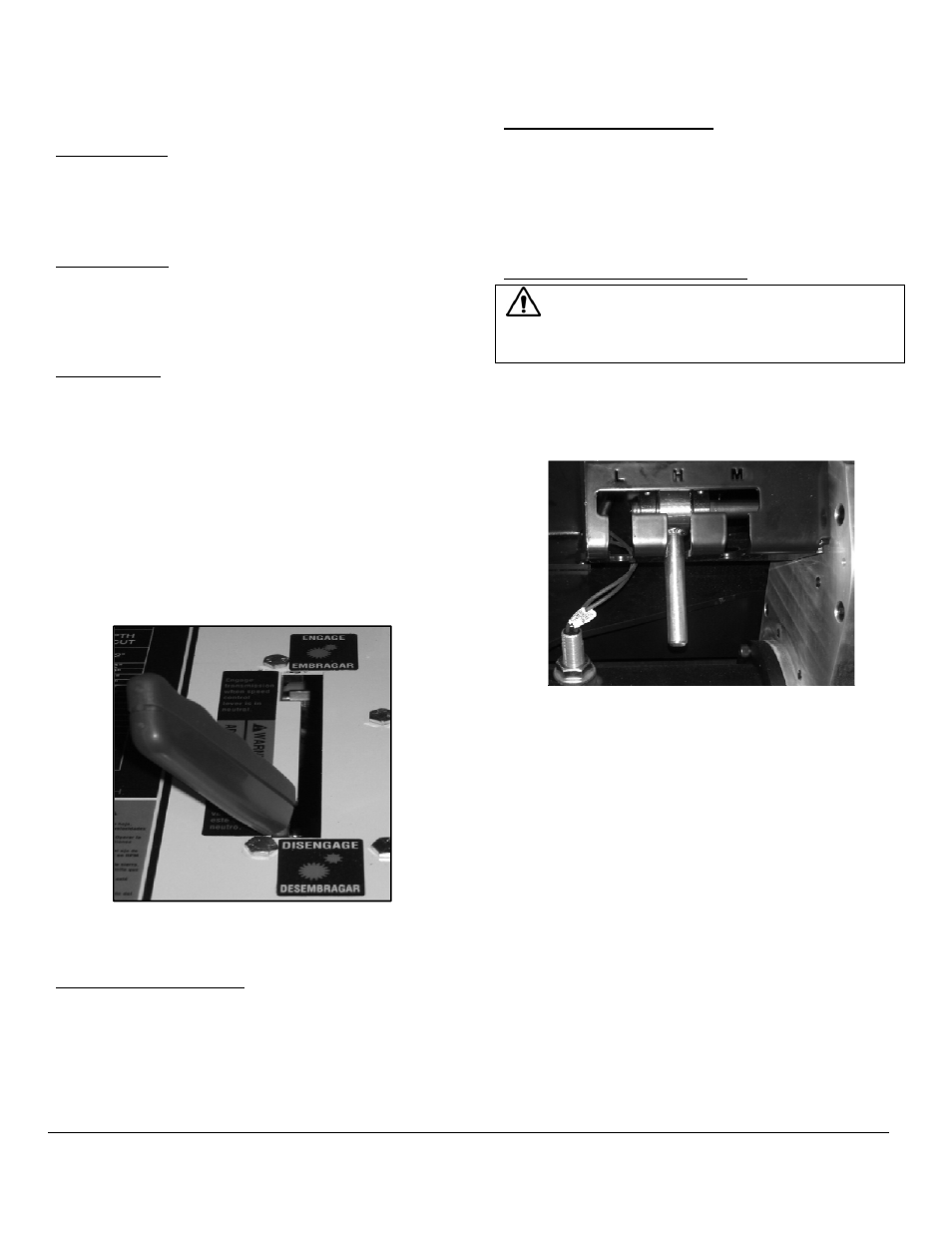

Figure 24: Transmission Lever
Engaging the Transmission
1. Place the speed control lever at Neutral.
2. Start the engine.
3. Slide the transmission engagement lever over
and out of the Disengage slot, and up and into
the Engage slot.
Disengaging the Transmission
1. Place the speed control lever at Neutral.
2. Slide the transmission engagement lever over
and out of the Engage slot, and down and into
the Disengage slot.
Shifting Three Speed Transmission
CAUTION
 Do not attempt to shift transmission when motor
is running
1. Stop
engine.
2. Open access door to expose transmission
lever.
Figure 25: Transmission Lever
3. Using wrench rotate blade shaft one flat either
direction until lever engages into desired slot in
shift gate
You will need to rotate the output shaft BY
HAND to complete this motion.
4. Drop shift lever into desired shift gate slot. From
left to right, Low, High, Medium marked L, H,
and M.
