EP1000A E-Port Instruction Manual
Configuration Parameters 47
10.0.0.0 to 10.255.255.255 Class A
172.16.0.0 to 172.31.255.255 Class B
192.168.0.0 to 192.168.255.255 Class C
For example:
• Set Your PC’s Network Adapter Card IP Address to 10.1.1.10 (only change the Network
Adapter Card, do not change your Dial-Up Adapter settings)
• Set the IP address of the E-Port to 10.1.1.11
• Set the network mask for both the PC network adapter and the E-Port board to 255.255.255.0
4.4 Network Management
To view communications statistics for an E-Port unit, click on the Diagnostics option located at the bottom
of the E-Port Configuration web page (
Figure 4-6 ). The statistics will be shown in the resulting display
( Figure 4-7 ). The display lists each of the instruments connected to the E-Port, with each instrument’s
number of transactions, and number of errors associated with that instrument.

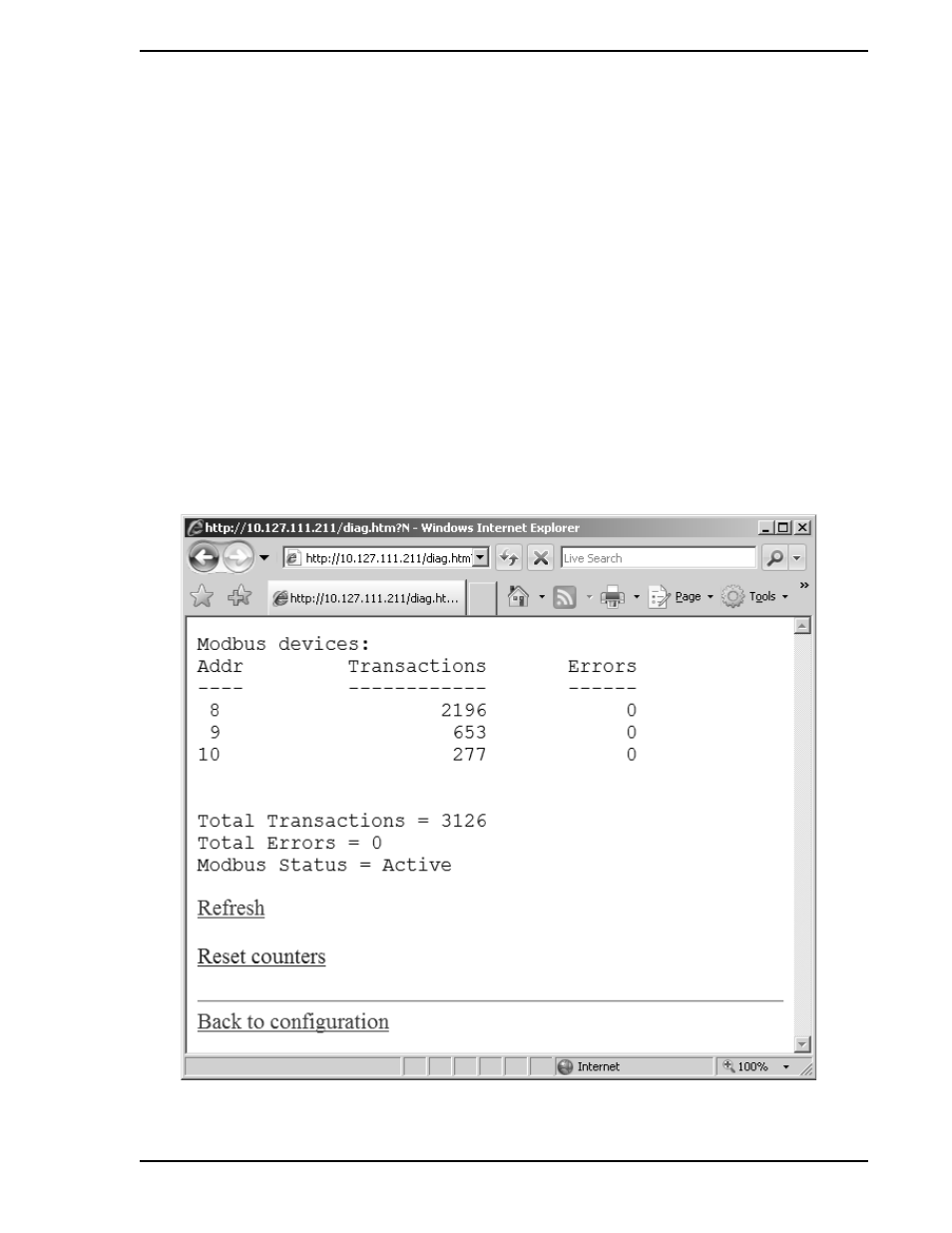

Figure 4-7. E-Port Modbus Statistics Display
