EP1000A E-Port Instruction Manual
Installation 21
2.4.1.3 dc Power Connection (Optional)
The optional dc power cable ( Figure 2-8 ) provides the ability to connect the EP1000A E-Port unit to a dc
power source.
1. Connect the P5-type power plug of the dc power cable into the power jack of the power
adapter cable (
Figure 2-7 ).
2. Connect the + and - wires to the appropriate terminals at your dc power source.
2.4.2 Data Connections
2.4.2.1 Connecting to a 53SL6000 Controller
Part Number Description Comments / Instructions
677C100U01 Power Cable, optional, dc Provides the ability to connect to a
dc power source.

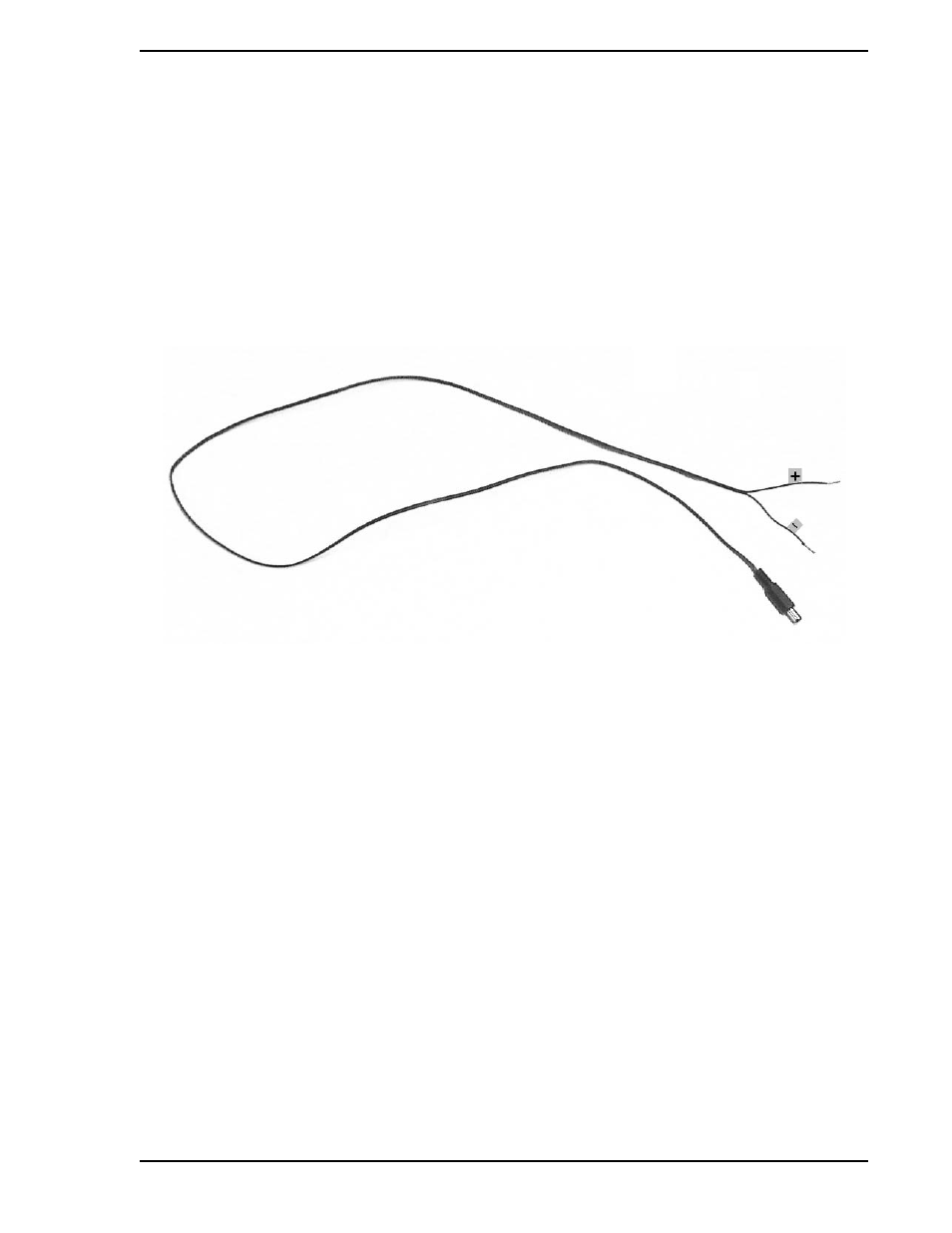

Figure 2-8. Optional dc Power Cable
Part Number Description Comments
698B239U01 Cable, SL6000 front port Provides an RS232 data
connection from the E-Port unit
RS232 port to the data port on a
53SL6000 controller.
