EP1000A E-Port Instruction Manual

Installation 15

1.

Verify that you have both a left and right aluminum bracket. (Place them side by side, with the
flanges pointing away from each other. The tops of the center screw holes in the flanges
should be pointing in the same direction (

Figure 2-1

).

2.

Using two of the screws provided, attach a DIN rail clip to the flange on one of the brackets.

3.

Align the second DIN rail clip so that it matches the first clip.

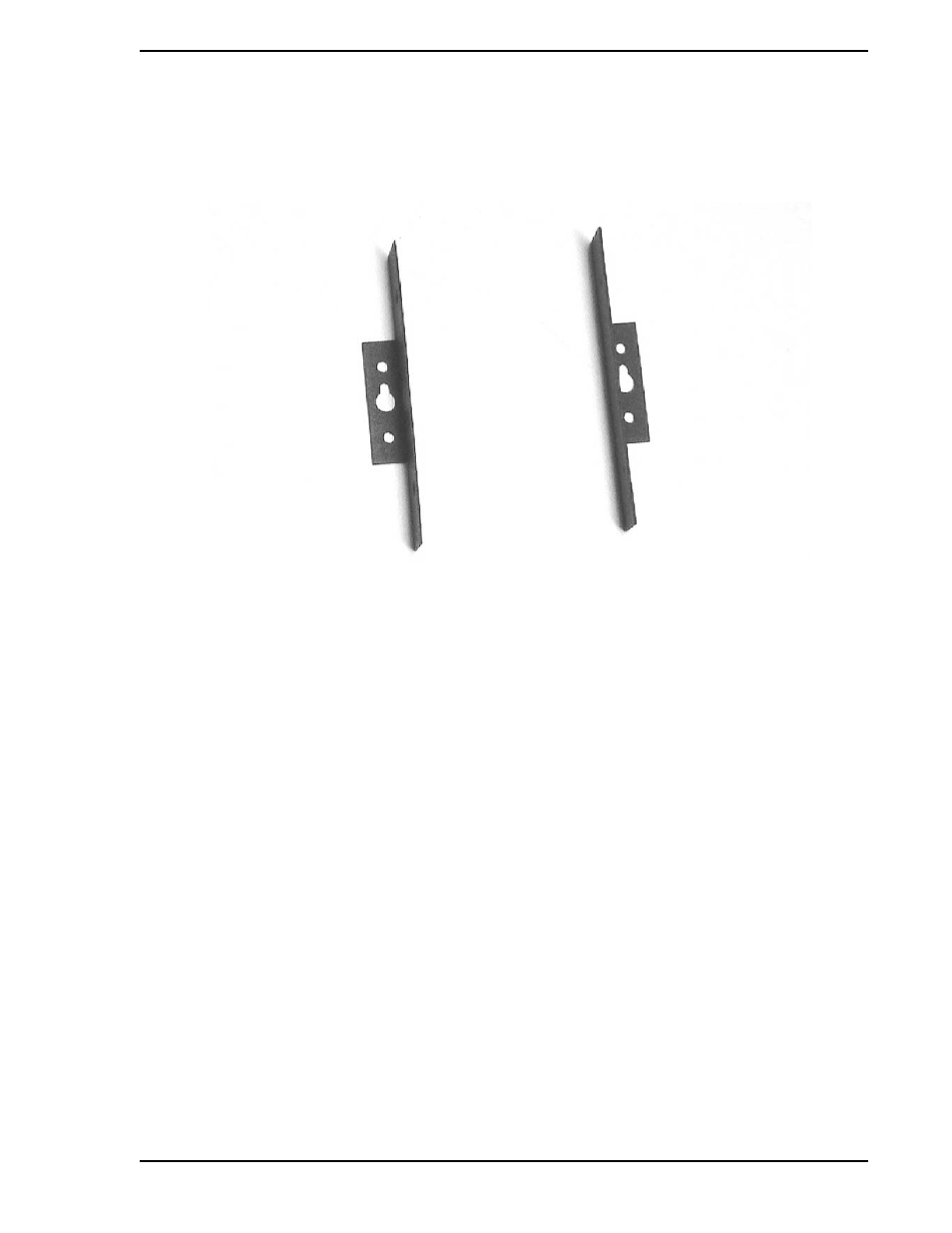

Figure 2-1. Aluminum Mounting Brackets (Pair)
