EP1000A E-Port Instruction Manual
38 Configuration Parameters
3.3.2 Using Super32 Statistics
Click on the Comm Stats View toolbar button. The network Comm[unications] Stat[istic]s View window will
be displayed for all Micro-DCI networks.
3.3.3 Using E-Port Diagnostics
To view communications statistics for an E-Port unit, click on the Diagnostics option located at the bottom
of the E-Port Configuration web page (
Figure 3-5 ). The statistics will be shown in the resulting display
( Figure 3-8 ). The display lists each of the instruments connected to the E-Port, with each instrument’s type,
number of transactions, and number of errors associated with that instrument.

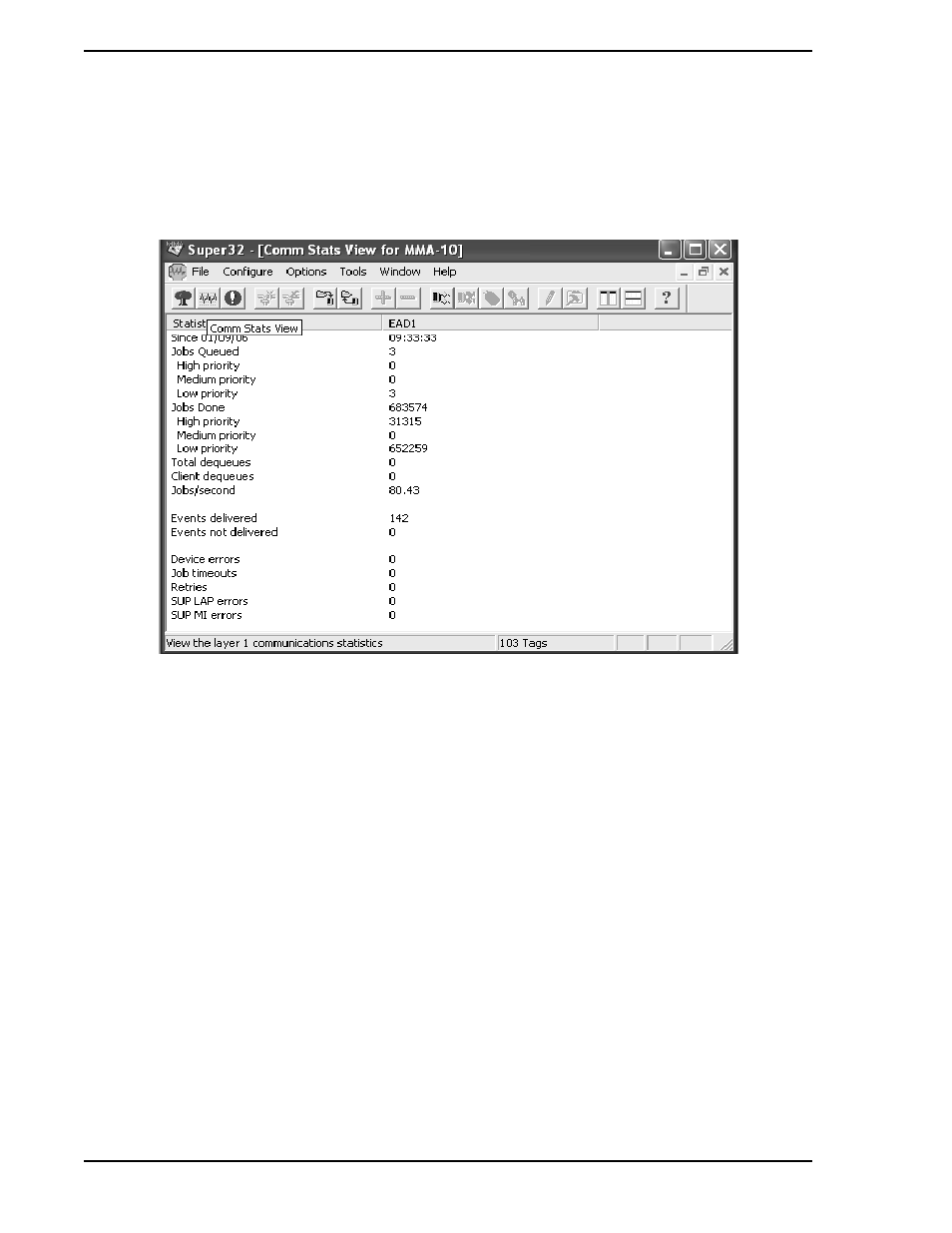

Figure 3-7. Super32 Statistics Display
