EP1000A E-Port Instruction Manual
Configuration Parameters 33
6. Click Next. The Network Mode selection window ( Figure 3-3 ) is displayed.
7. Choose the mode for the Communications Services node which was selected in Step 2 .
Available modes are Standalone, Master, and Backup.
8. Click Next. The Finish window is displayed. The Finish window provides a summary of the
configuration performed for the E-Port network.
9. Click Finish to complete the E-Port network configuration. A confirmation window will advise if
the operation was successful, and an entry for the new network will be displayed, below its
Communications Services node, on the Super32 window.
3.2 Configuring the E-Port
3.2.1 Getting Started
To run the E-Port setup program:
1. Start Super32. To do so from the Windows task bar, select the sequence Start > Programs >
MicroMod > Micro-DCI Communications Services > Super32.
2. From the Super32 Tools menu, select Configure E-Ports to launch the E-Port setup
program.
3.2.2 Configure the E-Port Unit Settings
The E-Port setup program will allow you to view your E-Port unit's current settings, or modify the settings.

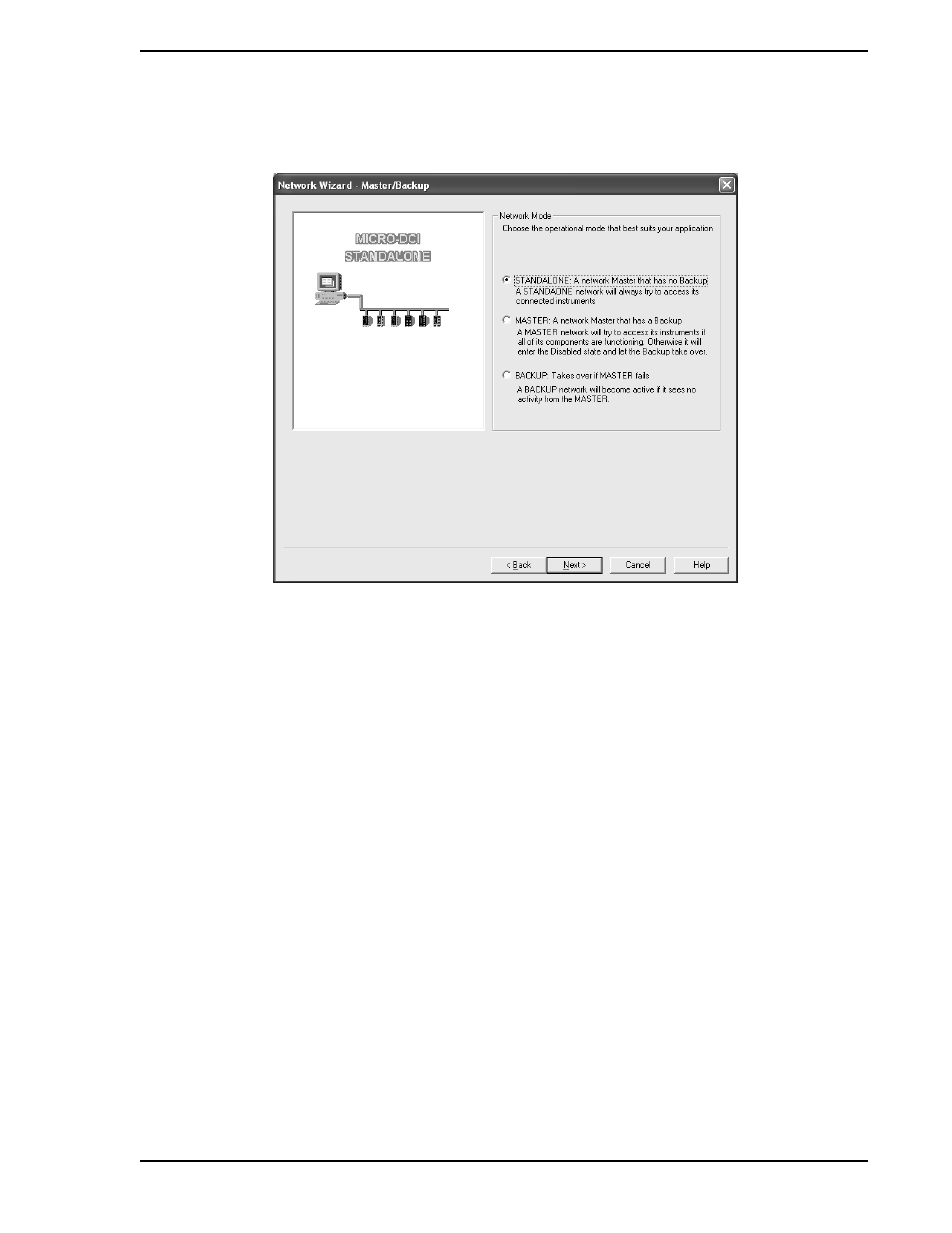

Figure 3-3. Network Mode Selection Window
