INSTALATION/OPERATIONS MANUAL INNOVATOR II
MAGNUM VENUS PLASTECH REV 1.40
MAY 2012 PAGE 11
Innovator 2012 Accessories
PARTS ARE RELEASED FOR ASSEMBLY ON APPLICATION DWG.
5) THE B/M IS TO BE USED AS AN ASSEMBLY AID ONLY.
4) ALL LINES WITHOUT NUMBERING TO BE HARD PLUMBED.
3) LINE SIZES INDICATED BY SYMBOL ON LINE NUMBER.
2) ALL EXPOSED LINES TO BE POLY TUBING
1) ALL LINES TO BE NUMBERED AS SHOWN ON DRAWING.
NOTES:
55
55
55
55 1/2 O.D. TUBING
3/8 O.D. TUBING
1/4 O.D. TUBING
1/8 O.D. TUBING
PROPERTY OF MAGNUM VENUS PRODUCTS.
1/1 E
A
B
D
C
1 4 2 3
A
B
C
D
2 1 4 3
ISSUED:
SHEET:
SCALE:
DATE:
APPROVED:
DATE:
DATE:
CHECKED:
FINAL ASSY
DRAWN: TOLERANCES
.XXX=±.005
ALL DIMENSIONS ARE IN INCHES
UNLESS OTHERWISE SPECIFIED
.XX=±.01
X/X=±1/32
TIR=±.005
XX°=±1/2°
MAGNUM VENUS PLASTECH
1862 Ives Avenue Kent, Washington 98032
Subsidiary of Graves Spray Supply, Inc.
TITLE:
SIZE:
SYSTEM:
DRAWING No: REV:
NEXT ASSY
NO.
DASH
PART
PER ASSY
QTY REQD
FINAL NEXT
APPLICATION

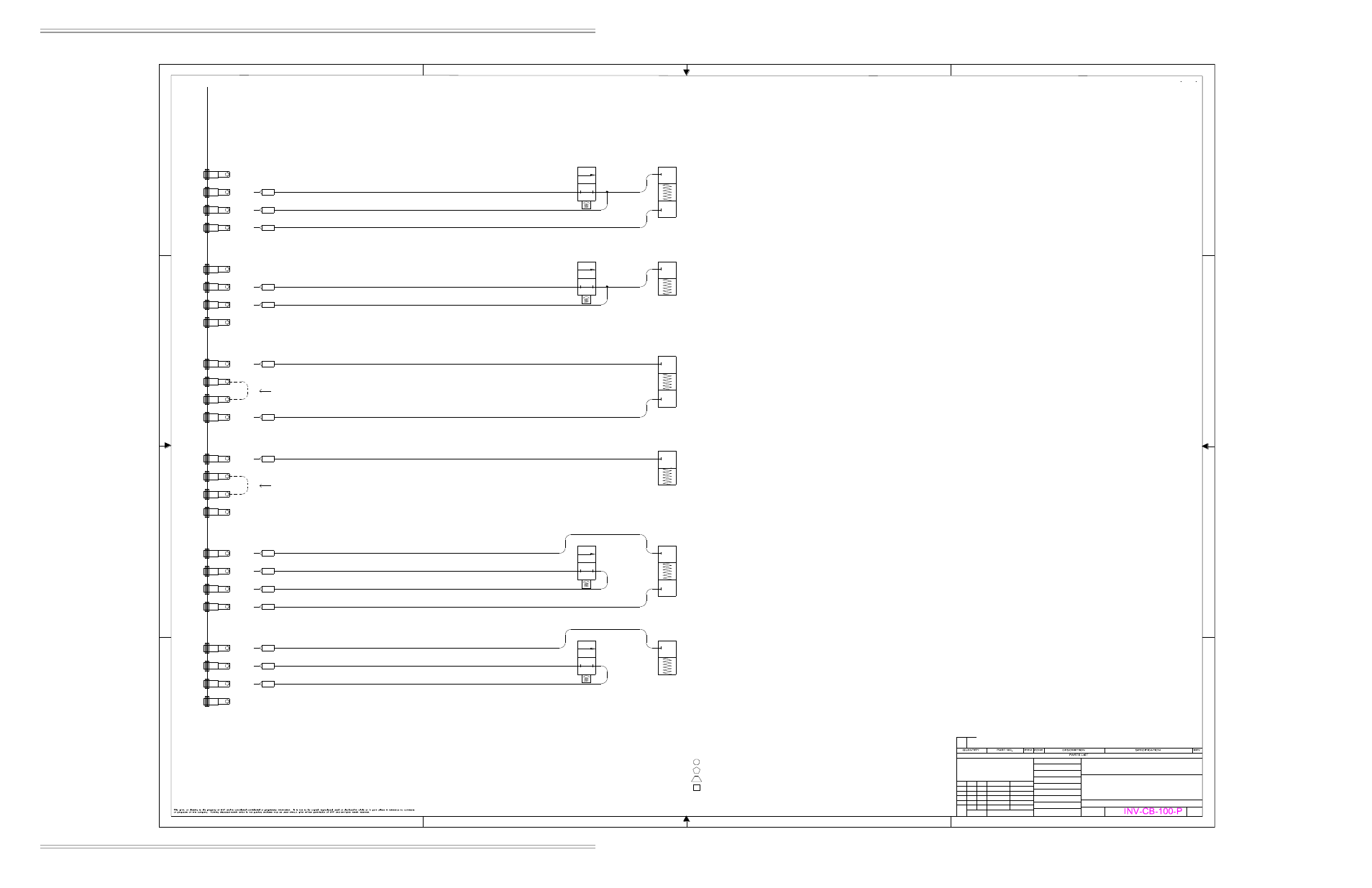

DO NOT SCALE DRAWING - WORK TO DIMENSIONS PNEUMATIC CIRCUIT
INNOVATOR II
FIELD CONNECTIONS
PPVS/AUTOSPRUES
5 OF 8
08-31-2011
BJS
B
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
PPVS IVx3
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
THIS JUMPER MUST BE
INSTALLED IF NOT USING PPVS
IVx3
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
TAS/TAS14
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
THIS JUMPER MUST BE
INSTALLED IF NOT USING PPVS
PPVS
TAS/TAS14
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
IVx3 PPVS
TAS
(RTM ONLY)
SUPPLY
PANEL SIDE
PPVS
(SUPPLY)
PANEL SIDE
PPVS
(SIGNAL)
PANEL SIDE
IXv3
FLUSH SIGNAL
PANEL SIDE
PPVS TAS/TAS14
