INSTALATION/OPERATIONS MANUAL
INNOVATOR II
MAGNUM VENUS PLASTECH REV 1.40
MAY 2012 PAGE 24
RGA adjustment
The time between strokes permitted to pass before the RGA alarms and the volume of the alarm whistle can be adjusted
by the user.

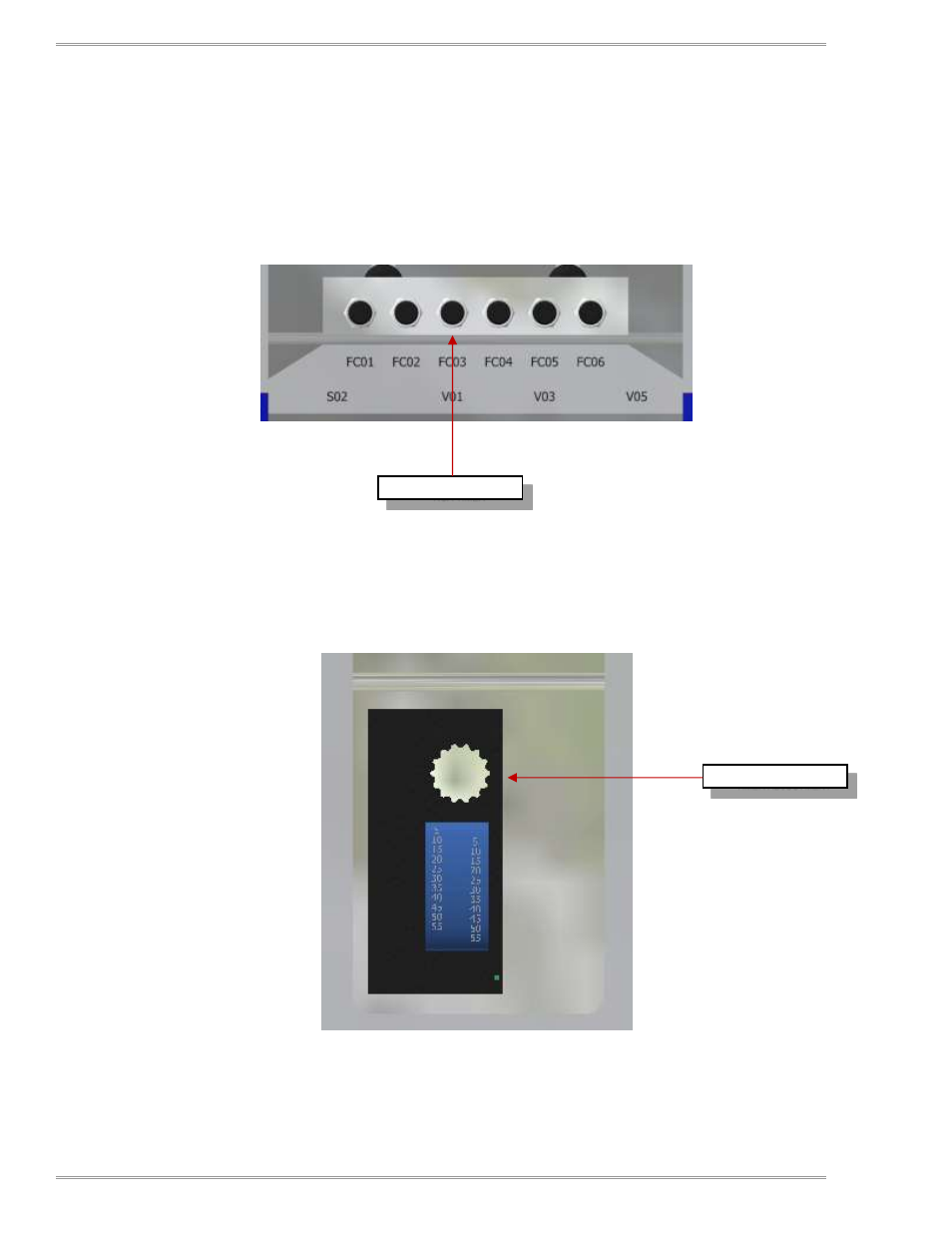

The pneumatic RGA control is located bottom center on the flow control ban (FIG 5.10). The mechanical timer is shown in
figure 5.20. Turn the knob to adjust the timer to the required time, between 20
– 300 seconds. The dial shows seconds
divided by 10, therefore to set the timer to 100 seconds, adjust the dial to 10.
FIG 5.10
FIG 5.20
RGA TIMER
TIMER ADJUSTMENT
