sPecIfIcatIons and dImensIons

Voltage

• 9 to 30 VDC; POD5 is 5 VDC

Current Supply

maximum

• 50 mA

Output Signal Resolution

• 100 pulses per channel per revolution, unscaled

See table on page 4

Square Wave

Single channel output

• Channel A or channel B

Quadrature channel output

• Channel A and channel B

Pulse Timing

• Nominal 50% on and 50% off

Rise/Fall Time of Pulse

• <5 µs

Output

• Current sinking 100 mA maximum in “ON” state

• V+ supply @ 2.2 KΩ in “OFF” state.

• Optional Open Drain FET (Field Effect Transistor).

• FET rating (drain to source voltage) 30 VDC maximum

Pulse Transmission Distance

• 5,000 feet (1,524 meters)

Pulse Output Fidelity

• ISO 6551 Level A

• API MPMS Chapter 5.5; Level A

• OIML R117-1

• Measurement Canada’s SVM-1

Specifications

Materials of Construction

• Aluminum Alloy ADC12

• Powder Coat: Corro-Coat PE 74-141 Polyester

Cable Entry

• ½"-14 NPT

Operating Temperature Range

• -40 to 176 °F (-40 to 80 °C)

Humidity Range

• 0-100% non-condensing

Shock

• 50 G for 10 ms

Vibration

• 1 G at 10-150 Hz

Electromagnetic Compatibility (EMI, RFI, etc.)

POD with PC Board 84120

• EU Directive 2004/108/EC (EMC)

• IEC 61000-4-2

• IEC 61000-4-3

• IEC 61000-4-5

• IEC 61000-4-6

• IEC 61000-4-17

• IEC 61000-4-29

• IEC 61000-6-3

• ISO 7637-2

POD with PC Board 81999

• IEC 801 standard

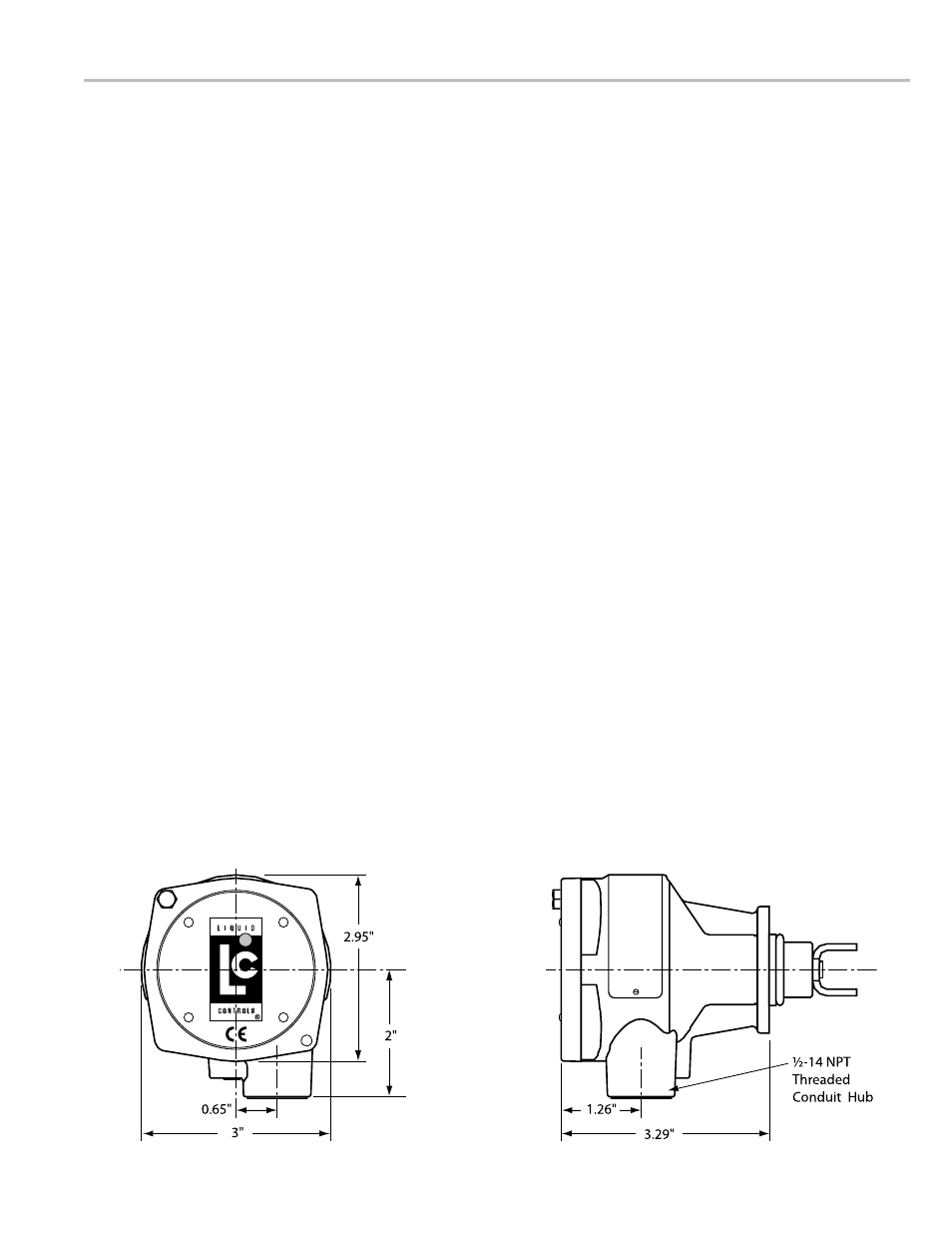

front

sIde

Dimensions
