Strainer assembly exploded view – Liquid Controls MA4 Meter User Manual
Page 29
29

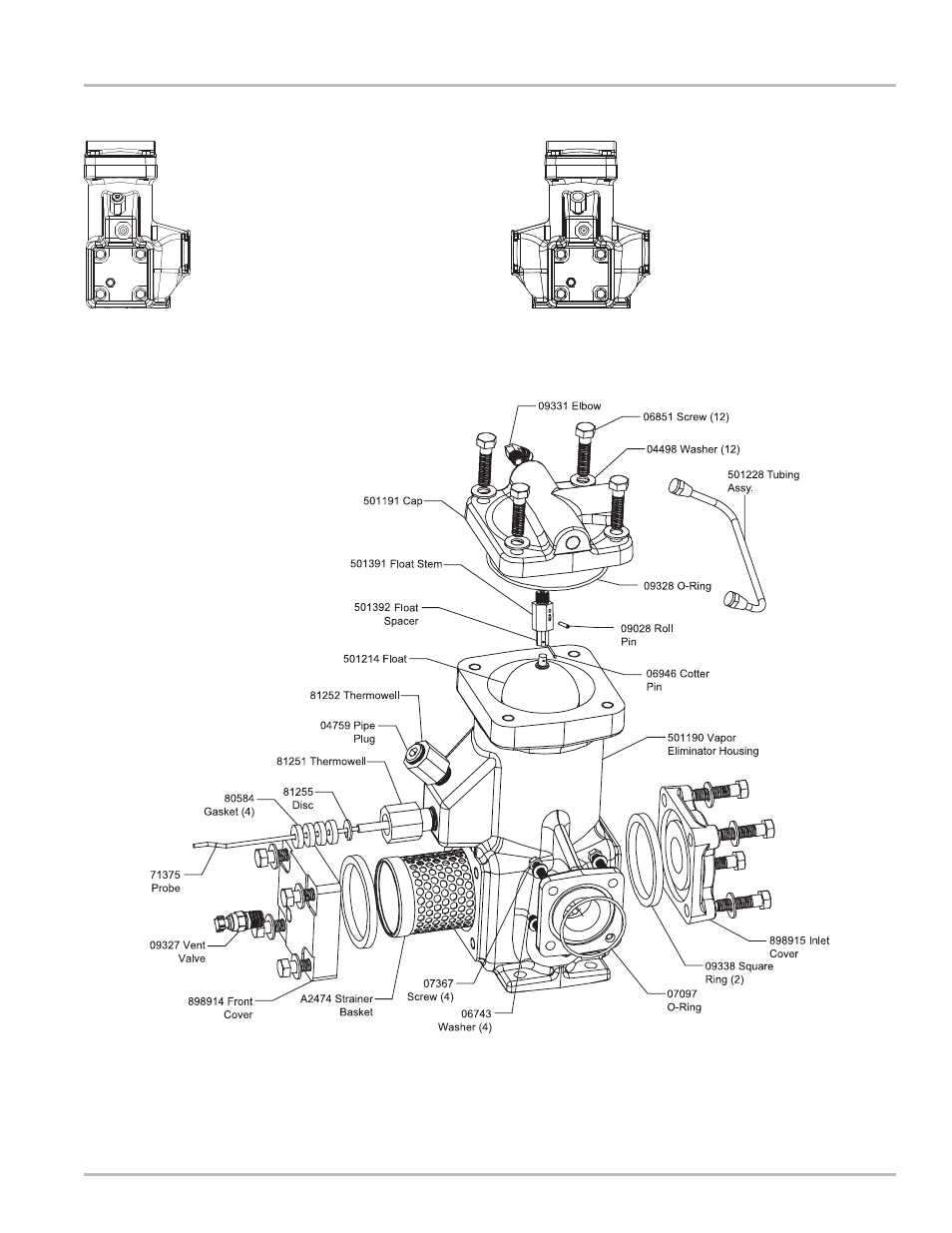

Strainer Assembly Exploded View
NOTE:
•
Assembly shown is for systems that use Electronic Temperature Volume Compensation (ETVC). Systems
without ETVC use a 1/2" pipe plug (07223) in place of part numbers 81251, 81255, 80584 and 71375.
•
Probe (71375): Class I Division 1 may require installation with conduit per local codes.
Single Meter Strainer Assembly
A2694 - Temperature Compensated
A2696 - Non-Compensated
Dual Meter Strainer Assembly
A2697 - Temperature Compensated
