ENFORCER Long-Range Barrier Sensors

SECO-LARM U.S.A., Inc.

11

Any two adjacent pair tripped

Response time: programmable

150/300/450/600ms

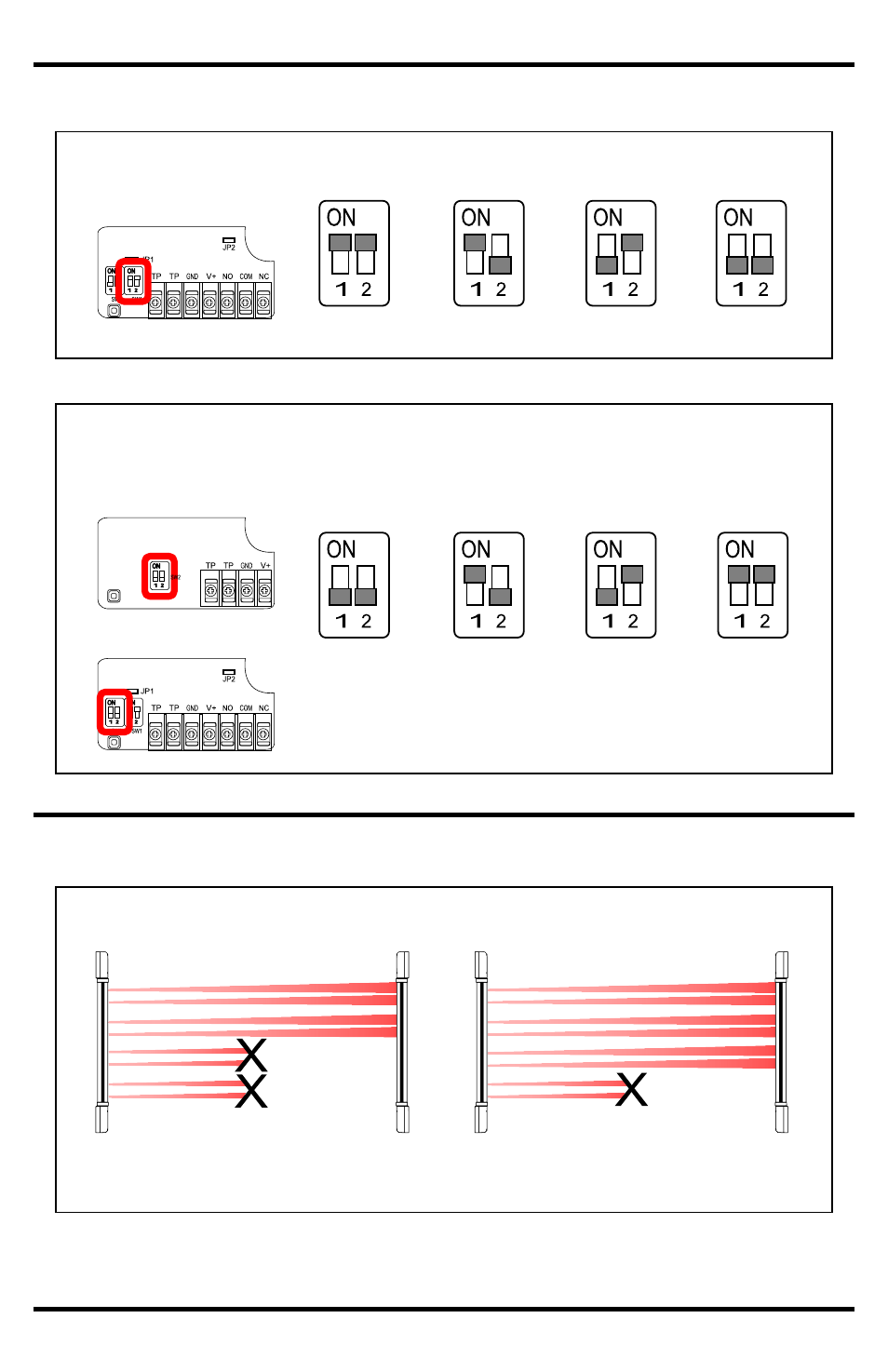

Programming the Barrier Sensor

Fig. 17 – Programming the response time (SW1)

300ms

450ms

600ms

150ms

Receiver circuit board

Triggering the Barrier Sensor

Fig. 19 – Ways to trigger the sensor

Any single pair tripped

Response time: 2 seconds

(Programmable, see page 10)

Fig. 18 – Programming the sensor beam channel frequency (SW2)

Receiver circuit board

CH2

CH3

CH4

CH1

Transmitter circuit board
