Installation Instructions
MX000041
www.hysecurity.com Page 1 of 5 P/N MX000041 © 2013 D0306 Rev. B

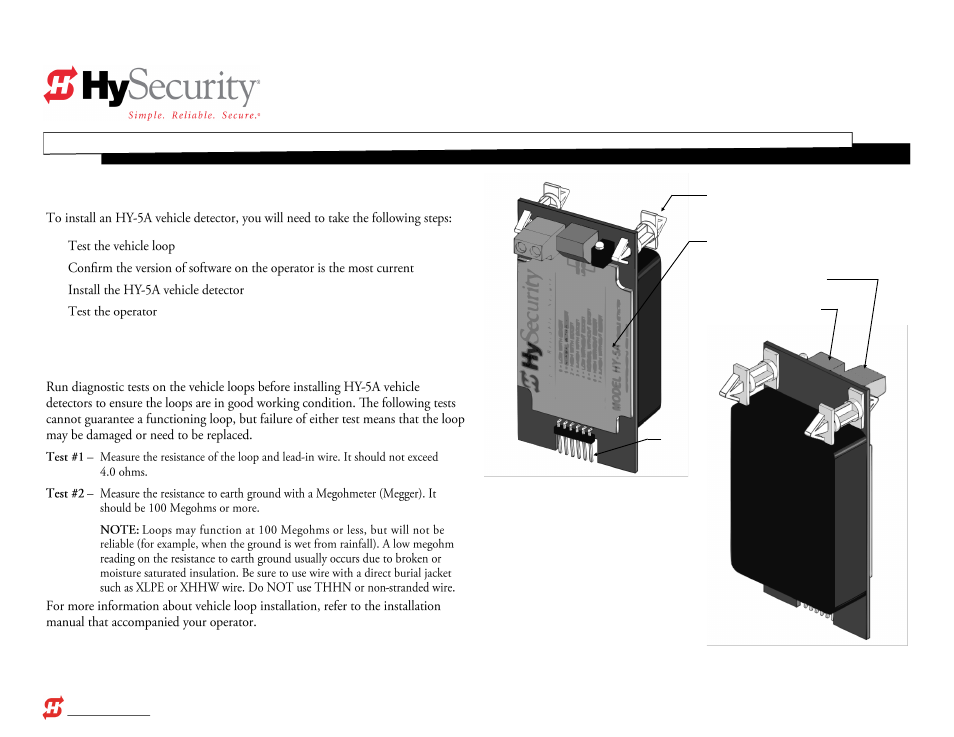

HY-5A Vehicle Detector




Test the Vehicle Loop
Diagram 1.
HY-5A Vehicle Detector—front view
Diagram 2.
HY-5A Vehicle Detector—rear view
Standoffs
Vehicle loop sensitivity levels explained on the
front label.
Screw terminals for loop wire
Vehicle loop sensitivity dial
Metal pins fit into
a socket on the
controller board.
