Gate hits obstruction.

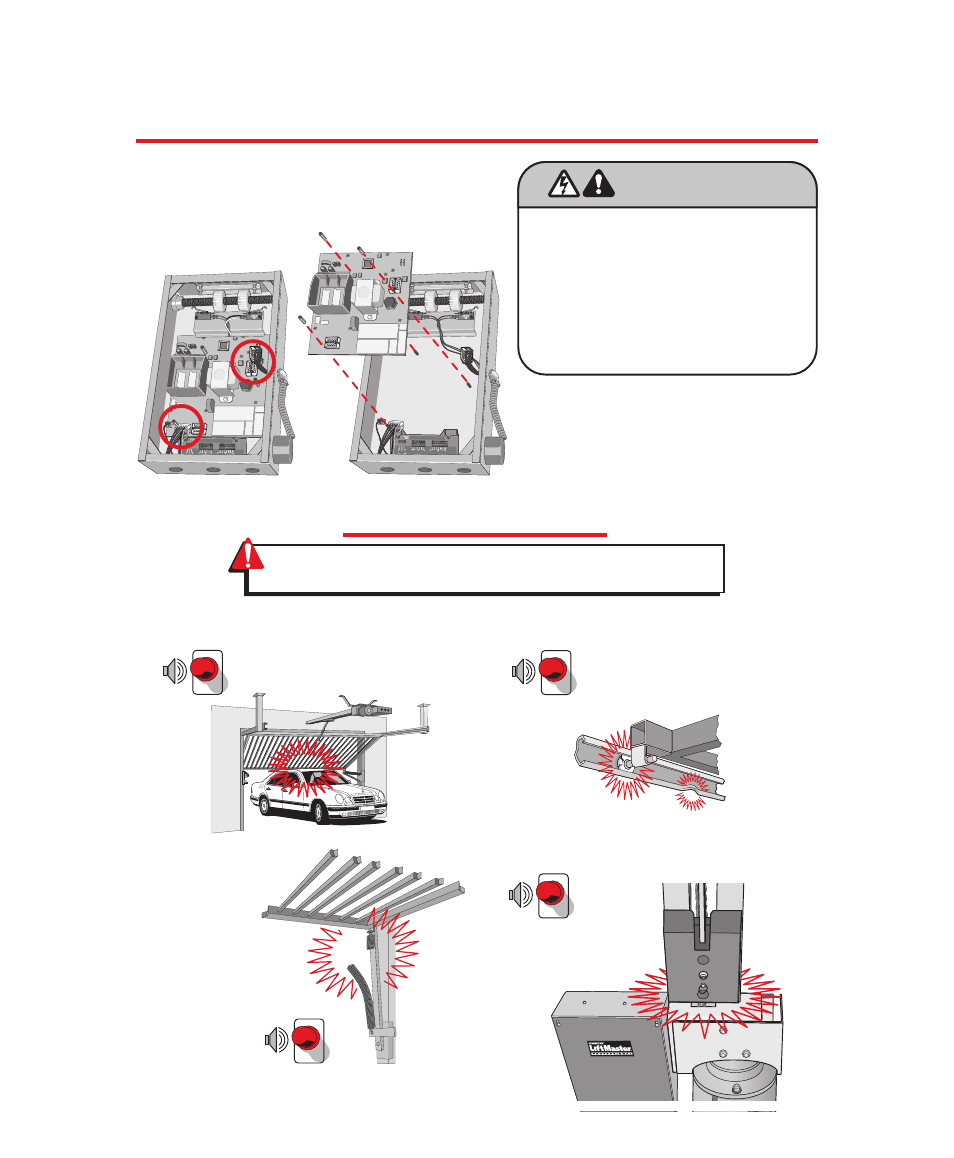

H O W T O R E P L A C E T H E C O N T R O L B O A R D
A U D I O A L A R M
When one of the following events happens Twice Consecutively, an Alarm will Sound!
Check for one or more of the following:
Check for broken
spring or hardware.
Ensure trolley is not
hitting the chassis
or an unwanted
object.
Strike Open
Push Button Strike Open
Push Button 24 Volts DC 24 Volts DC Fire Dept. Key Switch Fire Dept. Key Switch M/S Link M/S Link
Class 2 Supply Class 2 Supply Center Loop Center Loop Safety
Loop Safety
Loop Radio Receiver Radio Receiver Exit
Loop Exit
Loop G G B B A A – – + +
OmniControl Surge Suppressor P/N Q410 Patent Pending P/N Q410 Patent Pending ®
1. Disconnect power.
2. Disconnect wire harnesses from OmniControl
board. Unscrew 3 nuts and remove board.
Strike Open Push Button Strike Open Push Button 24 Volts DC 24 Volts DC Fire Dept. Key Switch Fire Dept. Key Switch M/S Link M/S Link
Class 2 Supply Class 2 Supply Center Loop Center Loop Safety
Loop Safety
Loop Radio Receiver Radio Receiver Exit
Loop Exit
Loop G G B B A A – – + +
OmniControl Surge Suppressor P/N Q410 Patent Pending P/N Q410 Patent Pending ®
Check for broken wheel or
damaged track.
WARNING: To reduce the risk of SERIOUS INJURY or DEATH,
the alarm MUST NOT be disabled.
WARNING WARNING
To prevent possible SERIOUS
INJURY or DEATH from electrocution,
disconnect electric power to operator
BEFORE installing.
ALL electrical connections MUST be
made by a qualified individual.
24
