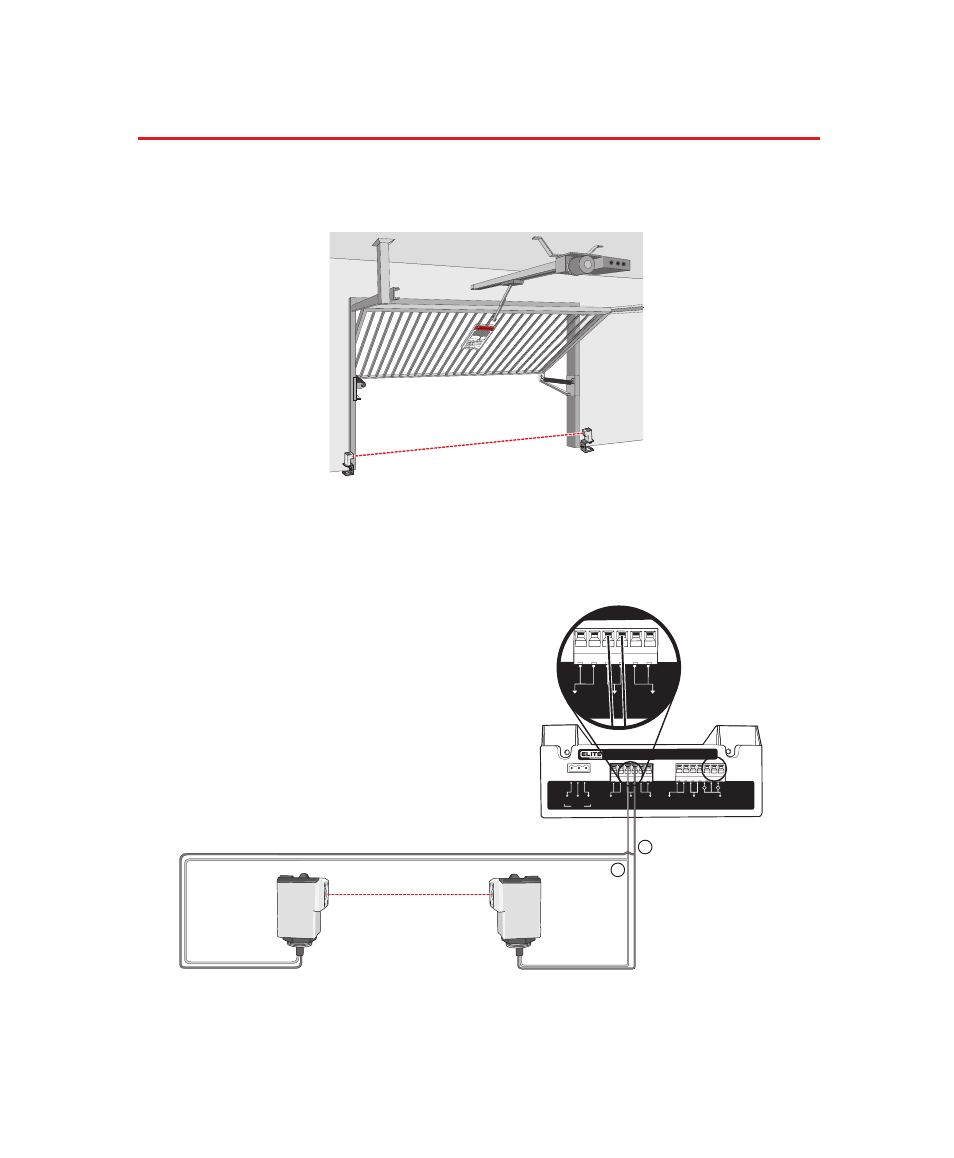

Mount Photo Beam Sensor at Recommended Height and Align Properly
S E C O N D A R Y E N T R A P M E N T P R O T E C T I O N
Secondary Entrapment Protection (Non-Contact Sensor)
If you are going to use a non-contact sensor as a secondary entrapment protection, you should use a
recognized component to comply with the revised UL325 intended to be used in class I or class II
gate operator.
Strike Open
Push Button Strike Open
Push Button 24 Volts DC 24 Volts DC Fire Dept
Key Switch
Fire Dept
Key Switch M/S Link M/S Link
Class 2
Supply
Class 2
Supply
Center
Loop
Center
Loop
Safety
Loop
Safety
Loop
Radio
Receiver
Radio
Receiver
Exit
Loop
Exit
Loop
G G B B A A
– – + +
OmniControl Surge Suppressor P/N Q410
Patent Pending
P/N Q410
Patent Pending
®
4
3
If an obstruction breaks the light beam while the gate is
closing, the gate will stop and reverse to full open position.
