SET OUTPUT DURATION
For commercial applications, the receiver can be set for either constant or momentary closure on the
output contacts. Use of constant closure is prohibited on residential garage door openers because it
overrides the safety reversal devices.
With the jumper in the “M” (Momentary) position, the contacts will close for 1/4 second regardless of
the length of radio transmission. With the jumper in “C” (Constant) position, the contacts will stay
closed as long as the radio continues transmitting.
The receiver is factory set at M.
Pry open the front panel of
receiver case with a coin or
a screwdriver. Re-connect
power to opener.
Press and release the
“learn” button on the
receiver. The learn
indicator light will glow
steadily for 30 seconds.
Within 30 seconds, press and hold the button
on the hand-held remote that you wish to
operate your operator.
The opener will now operate when the push
button on either the receiver or the remote
control is pressed.
Repeat Steps 2 and 3 for each remote control
that will be used to operate the opener.
WARNING: To reduce the risk of SERIOUS INJURY or DEATH, the
use of CONSTANT OPERATION on residential openers is PROHIBITED.

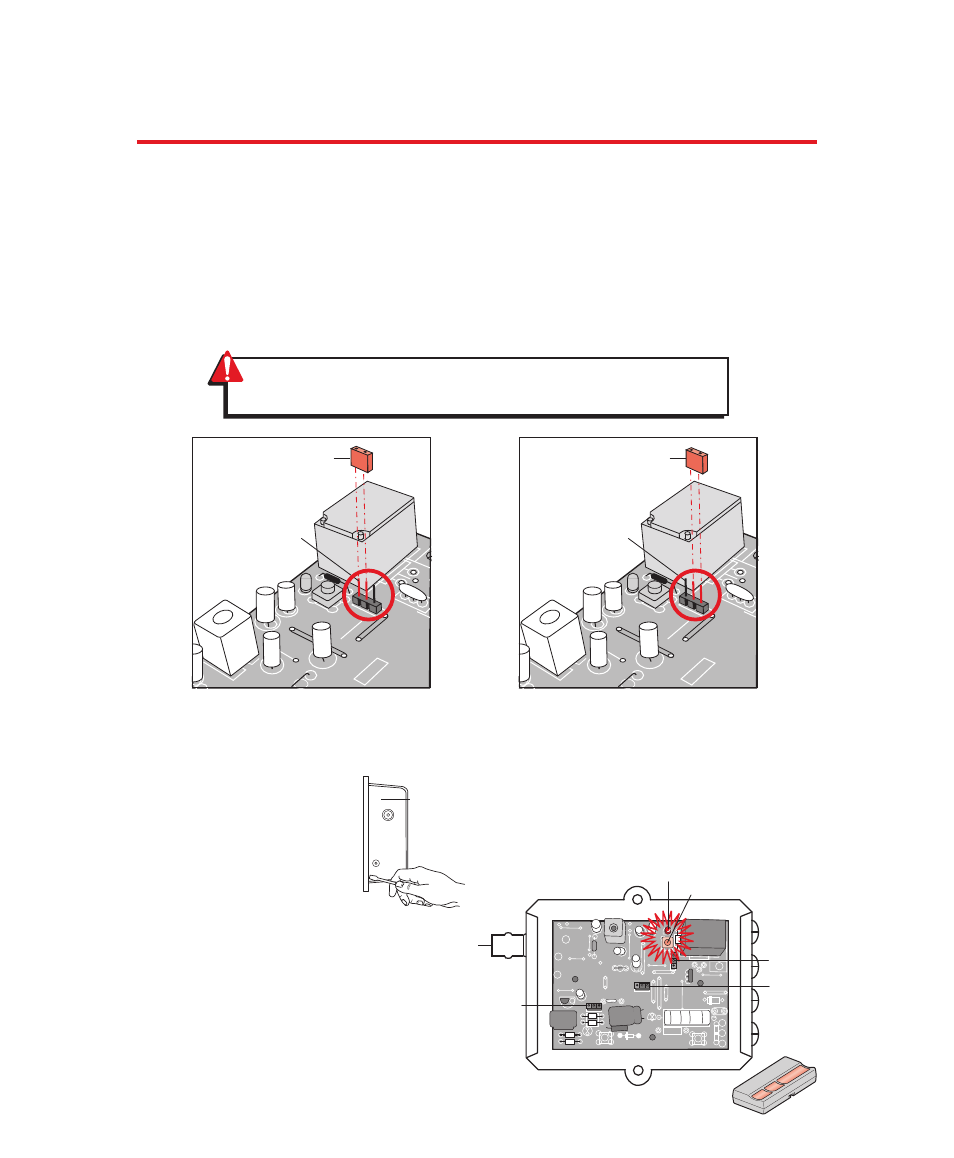

OPENING RECEIVER
Connect
Antenna
Output
Duration
Terminals
Jumper
M
CONSTANT
OPERATION
Output
Duration
Terminals
Jumper
M
MOMENTARY
OPERATION
TO ERASE ALL REMOTE CONTROL CODES
Press and hold the “learn” button on the
receiver panel until the indicator light turns off
(about 6 seconds). All remote codes are now
erased. Then follow the programming steps to
reprogram each remote control.
Learn Button
Indicator Light
Output
Duration
Terminals
Security
Mode
Power
Supply
Jumper
OPEN RECEIVER
24V 12V
HIGH NORM
C
P2
M
P R O G R A M M I N G T H E R A D I O R E C E I V E R
1.
2.
3.
PROGRAMMING THE REMOTE TO THE RECEIVER
