BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
19

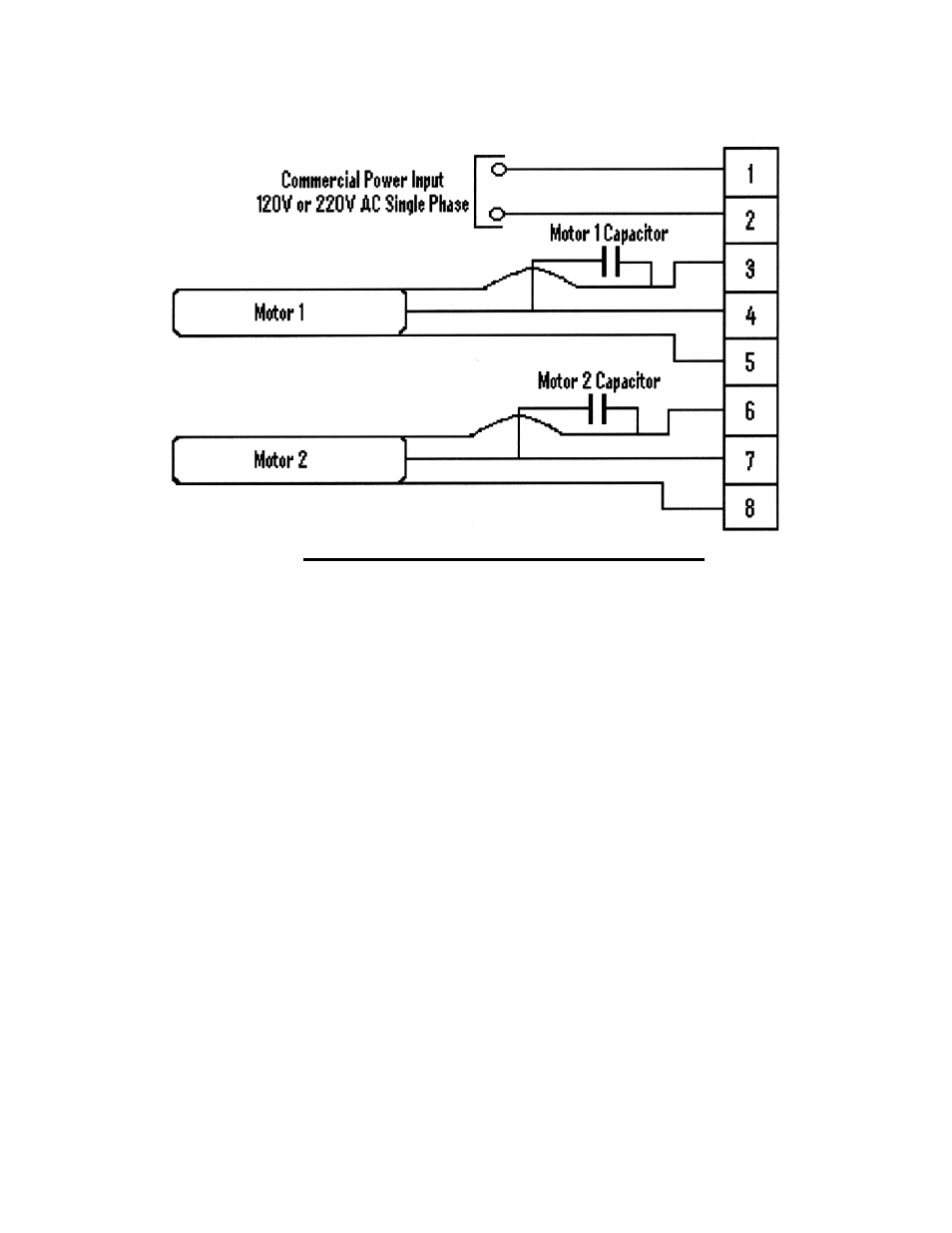

POWER & MOTOR CONNECTION
TERMINAL DESCRIPTION
1 COMMERCIAL POWER SUPPLY 115V NEUTRAL (WHITE)
[220V LINE (BLACK)]
2 COMMERCIAL POWER SUPPLY 115V LINE (BLACK)
[220V LINE (RED)]
3 MOTOR # 1 CLOSE DIRECTIONAL (BLACK)
4 MOTOR #1 OPEN DIRECTIONAL (BLACK
5 MOTOR #1 COMMON (WHITE)
6 MOTOR #2 CLOSE DIRECTIONAL (BLACK)
7 MOTOR #2 OPEN DIRECTIONAL (RED)
8 MOTOR #2 COMMON (WHITE)
