BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
18

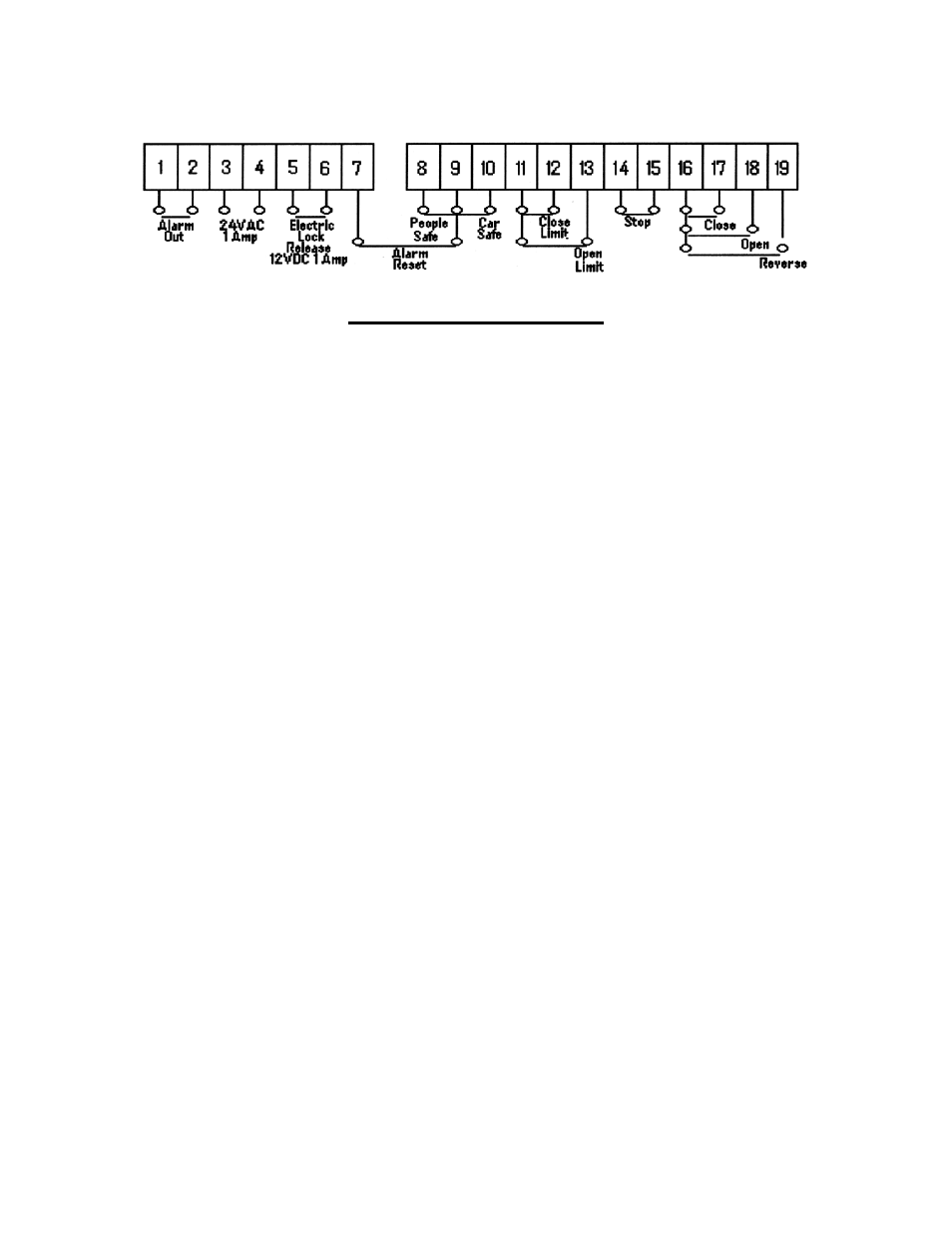

CONTROL CONTACT
TERMINAL DESCRIPTION
1 ENTRAPMENT ALARM OUTPUT
2 ENTRAPMENT ALARM OUTPUT
3 24VAC OUTPUT @ 1 AMP MAX .
4 24VAC OUTPUT @ 1 AMP MAX.
5 ELECTRIC LOCK RELEASE 12VDC
6 ELECTRIC LOCK RELEASE 12VDC
7 ENTRAPMENT ALARM RESET
8 ENTRAPMENT SAFETY CONTACT
9 COMMON TO SAFETY CONTACT
10 REVERSING SAFETY CONTACT
11 COMMON TO LIMIT SWITCH
12 CLOSE LIMIT SWITCH
13 OPEN LIMIT SWITCH
14 STOP BUTTON
15 COMMON TO STOP BUTTON
16 COMMON TO CONTROL CONTACT
17 CLOSE COMMAND
18 OPEN COMMAND
19 REVERSE COMMAND
