BYAN SYSTEMS, INC.
Automated Gate and Access Control Products
413 Linden • Lusk, WY 82225 • (800) 223-2926
14

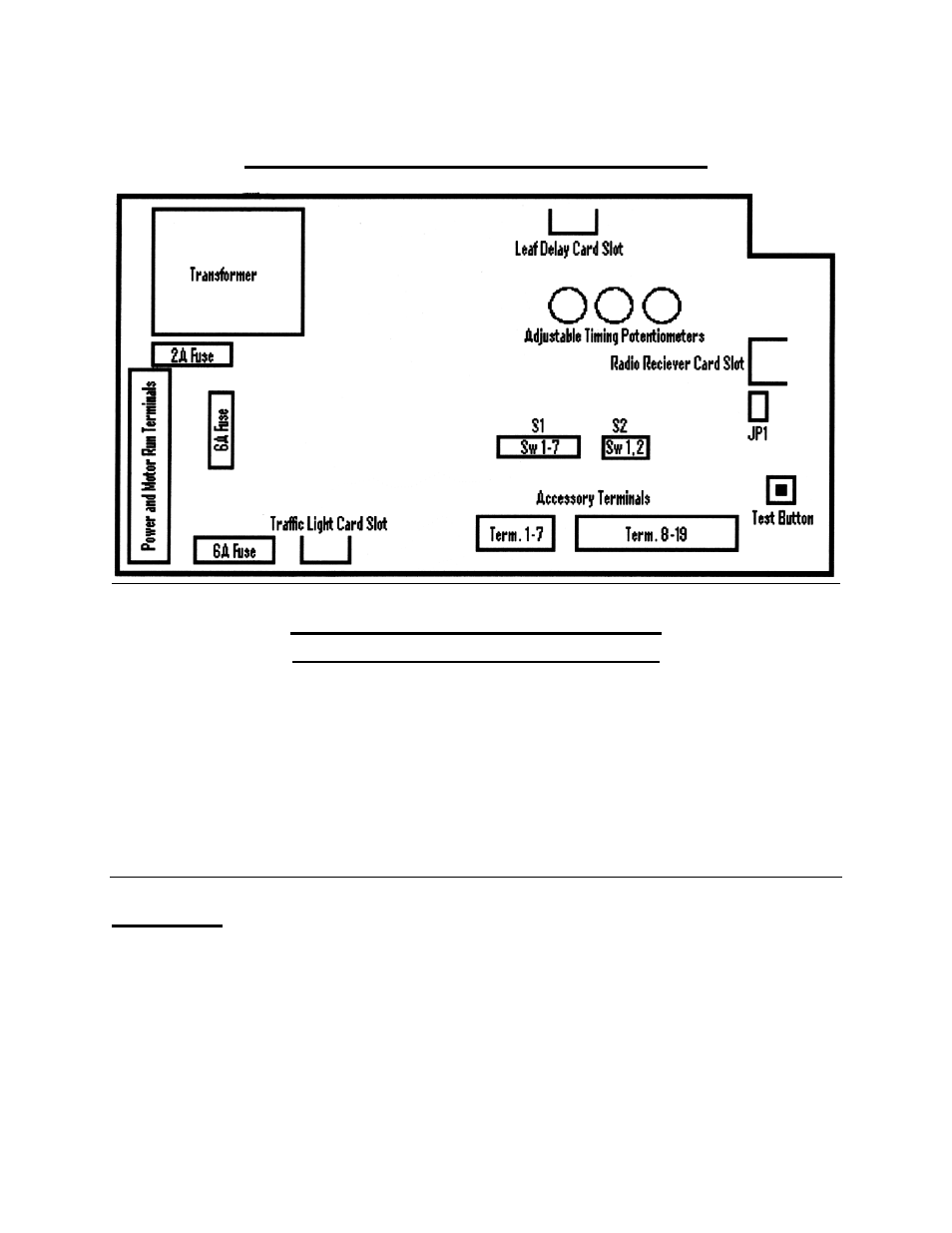

G2M CONTROL BOARD DESCRIPTION
G2M-115V/220V SINGLE PHASE
MICRO CONTROLLED BOARD
THIS ELECTRONIC CONTROL UNIT IS SUITABLE FOR SINGLE-PHASE MOTORS, AND CAN
DRIVE UP TO TWO DIFFERENT MOTORS. THERE IS LEAF DELAY INCORPORATED WITH
THE USE OF A PLUG IN CARD. 9 DIP SWITCHES CAN SELECT SOME DIFFERENT OPTIONS
OF THE CONTROL UNIT.
THERE ARE THREE POSSIBLE TIMING POTENTIOMETERS: OPENING TIME, AUTOMATIC
CLOSING TIME, AND THE CLOSING TIME. A DIP SWITCH CAN DOUBLE THE OPENING AND
CLOSING TIME.
CHARACTERISTICS:
BUTTONS:
REVERSING BUTTON:
THE FIRST ACTIVATION WILL MAKE THE GATE OPERATE. THE SECOND ACTIVATION
WILL MAKE THE GATE STOP. THE THIRD ACTIVATION WILL REVERSE THE GATES
DIRECTION WHILE DIP SWITCH 2 IS ON. WITH DIP SWITCH 2 OFF ON THE CLOSE CYCLE,
THE GATE WILL AUTO REVERSE TO OPEN.
OPENING BUTTON:
USED ONLY TO OPEN AND HOLD OPEN THE GATE.
