24 FAAC MODEL 844 Slide Gate Operator

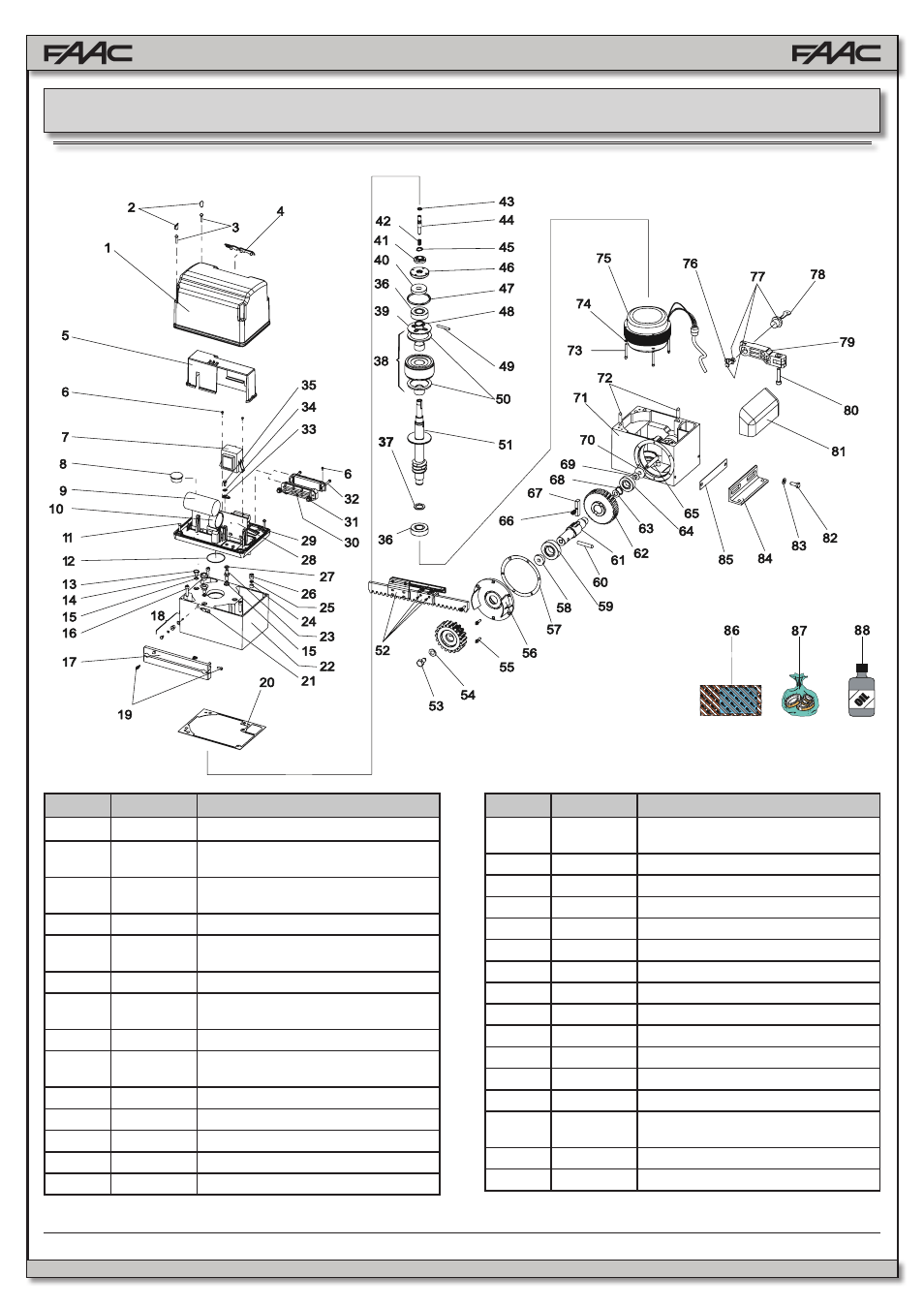

13. 844 SPARES DIAGRAM
POS. P/N DESCRIPTION
01 7273425 844 OPERATOR PLASTIC COVER
02 7111245 746/844 COVER HOLES CAPS (NR 4)
03 701520 THREAD FORMING SCREW 4x20 UNI
10227 INOX
04 7324745 2003 FAAC LOGO
05 7273435 COVER FOR CONTROL BOARD
746/844
06 701422 AUT.2,9X6,5 6954 B N
07 7501365 TRANSFORMER 203V - 18V/15VA
RES.-FLANG.
08 711969 KAPSTO PLUG GPN-300-F242
09 76010915 CAPACITOR. PP 35MF 250VAC WITH
CONNECTOR
10 722084 CAPACITOR SUPPORT
11 701814 TCIC M4X20 TRILOB.DIN 7500-C Z
12 709062002 O RING GASKET 6,75X1,78
13 7029055 STATOR FIXING NUT
14 7110015 CAP
POS. P/N DESCRIPTION
15 7099145 GEAR MOTOR STATOR SCREW NUT
GASKET
16 7580375 CAP SCR.SOCK.HEA.6X25 5931 8GZ
17 7161825 MLS LIMIT SWITCH 746/844
18 390516 BREATHER PLUG PACKAGE
19 701002 CAP SCR.SOCK.HEA.4X10 5931 8GZ
20 7099645 GASKET 844
21 7320065 BREATHER SCREW LABEL
22 7160605 UPPER HALF BODY 746/844
23 7029175 STATOR NUT / EARTH
24 7099245 STRAIN RELIEF GASKET
25 7043355 STRAIN RELIEF RING
26 7109095 CABLE DAMP
27 709000002 O RING GASKET 7,59X2,62
28 7909212 780 D CONTROL UNIT WITH
TERMINALS
29 7273405 BASE FOR 746/844 R COVER
30 7109255 STRAIN RELIEF 746/844 R
