P age 7

M a y, 20 06

4 1 5 L LS Ope ra tor A nd
4 5 5 D C ontrol Pa ne l I nsta ll a ti on Ma nua l

3. Turn the manual release knob clockwise 1/2 turn.

4. To re-engage the operator, perform the procedure

in reverse.

Now the 415 L LS Operator is manual released. You can

move the gate freely.

A

TTACH

THE

E

LECTRIC

C

ABLES


Before mounting the operator to the gate panel you
must attach the two provided electric cables. See figure
3 & 4 for the detail sticker on the bottom of the
operator.

After attaching the electric cables to the 415 L LS
Operator, you will need to thread the cables thru the
assembled cable/strain relief cover and tighten the
strain relief as shown in figure 5.

Slide the cable/strain relief cover up the cables until
flush with the 415 L LS Operator and secure the cover
with the four (4) screws provided as shown in figure 6.











I

NSTALLING

THE

O

PERATOR

Once you have prepared the gate, you are ready to

proceed with the installation of the operator.

Follow the instructions below to install your operator

whether in an inward or outward swinging

configuration.

Installing the operator consists of the following steps:

Attaching the rear mounting bracket

Attaching the operator to the rear mounting bracket

Attaching the front mounting bracket to the
operator

Attaching the front mounting bracket to the gate
leaf

Installing the 455 D control panel

Setting the operating controls

Figure 6. Attach the electric cable cover with

two screws provided

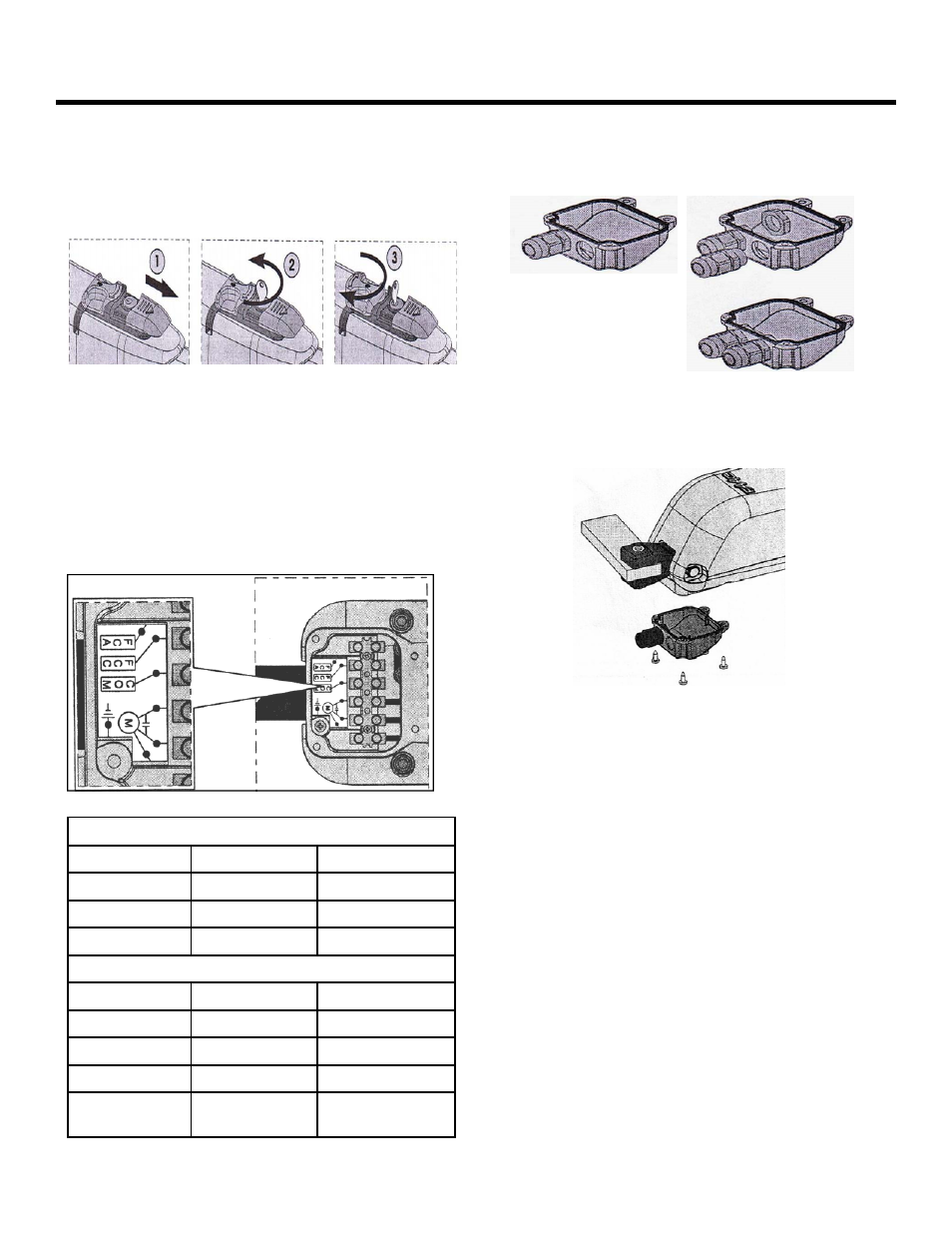

Figure 2. Use the Manual Release key to disengage the

415 Operator from its motor so that you can move the

gate leaf open and/or closed by hand.

Sticker Labeled

Color

Description

COM

White

Common Wire

FCC

Red

Closing Limit

FCA

Black

Opening Limit

OPERATOR MOTOR CABLE

Sticker Labeled

Color

Description

M

White

Common Wire

M

Black

Motor Directional

LIMIT SWITCH CABLE

M

Red

Motor Directional

M

Yellow/Green

(Green)

Earth Ground Only

Figure 5. Assembling

the strain reliefs to the

cable cover

1

2

3

Figure 3. Electric Cable Detail Sticker

Figure 4. Electric Cable Wire Color Codes
