MP-54 LOGIC INPUTS - GROUP A

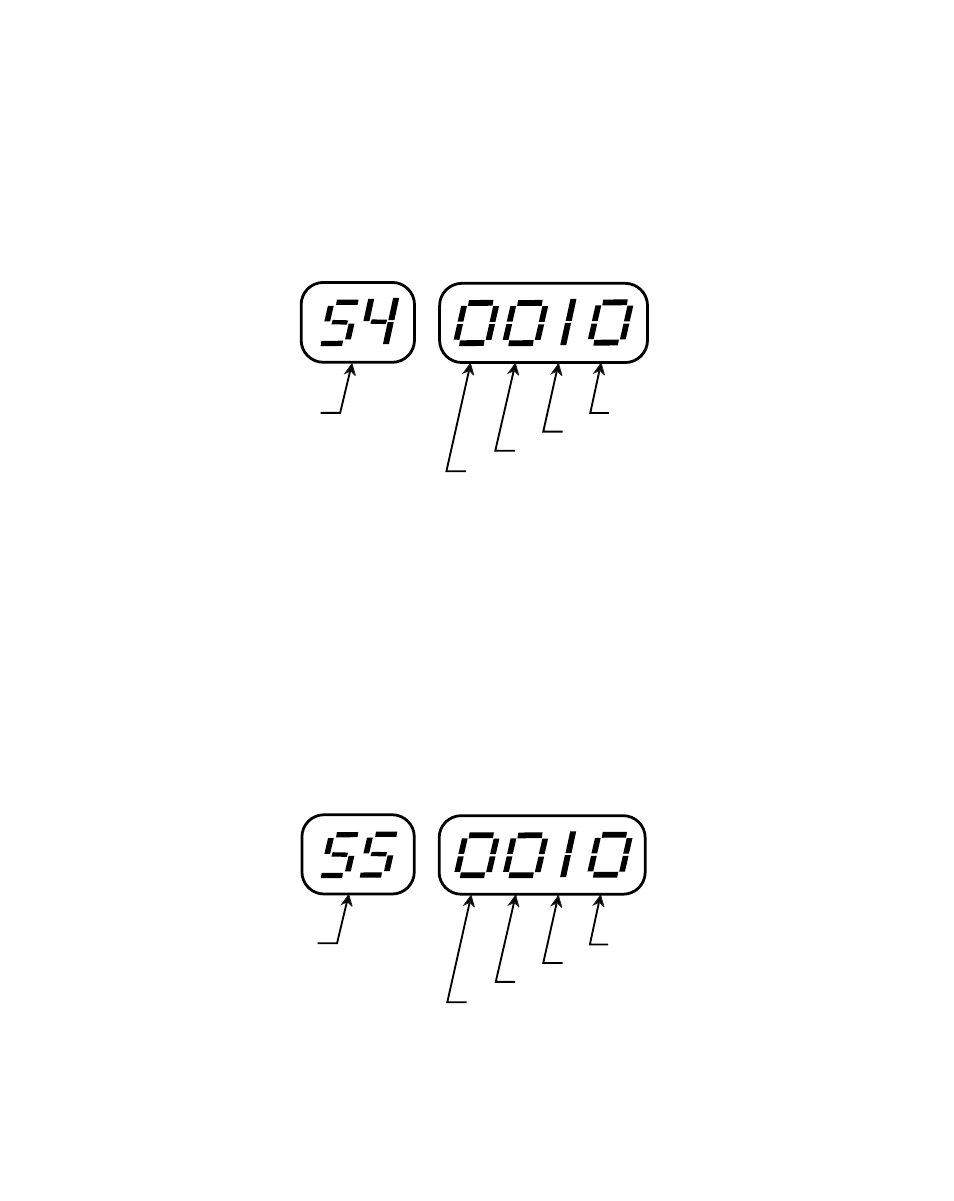

The Logic Inputs A displays the status of the Run, Jog, R–Stop and F–Stop digital
inputs. The number “1” indicates an open, or logic high level. The number “0” indicates
a closed, or logic low level (shorted to common). In the example below, “Jog” is the
open or logic high level.
Run (J5 Pin 6)
Jog (J5 Pin 7)
R–Stop (J5 Pin 9)
F–Stop (J5 Pin 10)
Code
MP-55 LOGIC INPUTS - GROUP B
The Logic Inputs B displays the status of the Master/Follower and Setpoint Select
digital inputs. The number “1” indicates an open, or logic high level. The number “0”
indicates a closed, or logic low level (shorted to common). In the example below,
“Setpoint Select” is the open or logic high level.
Master or Follower (J5 Pin 12)
Setpoint Select (J5 Pin 13)
Not Used
Not Used
Code
