AC Power (J3 pins 1, 2, 3)
The ML–Trim model #3200-1931
operates on 115 VAC + 15%, 0.1
Amp., 50/60 Hz. The ML–Trim model
#3200-1932 operates on 230 VAC
+ 15%, 0.1 Amp., 50/60 Hz.
* Fuse L1 for 115VAC applica-
tions. Fuse L1 and L2 for
230VAC applications. Use
1 Amp 250V normal blow
fuses.
Lead Frequency (J5 pins 3, 5)
The Lead Frequency is a pulse train
input that the ML–Trim uses to
determine the speed of the lead
motor. For signal level specifications,
refer to
References: Appendix A ,
ML–Trim Specifications, page A-1

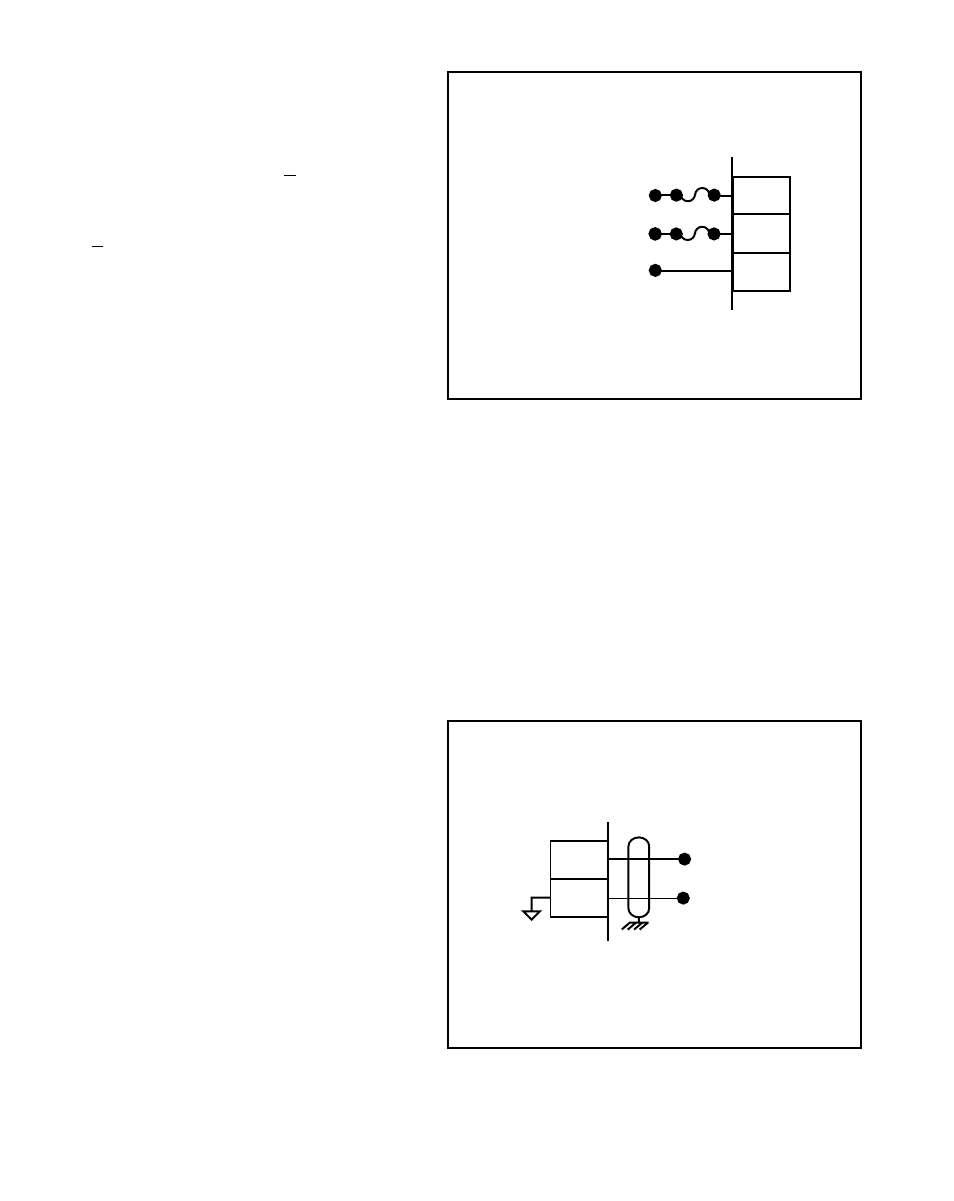

Figure 2-5 Input Power
Figure 2-6 Lead Frequency
L1
Neutral or L2
GND/PE
1
2
3
J3
*
*
Signal
Common
3
5
J5
